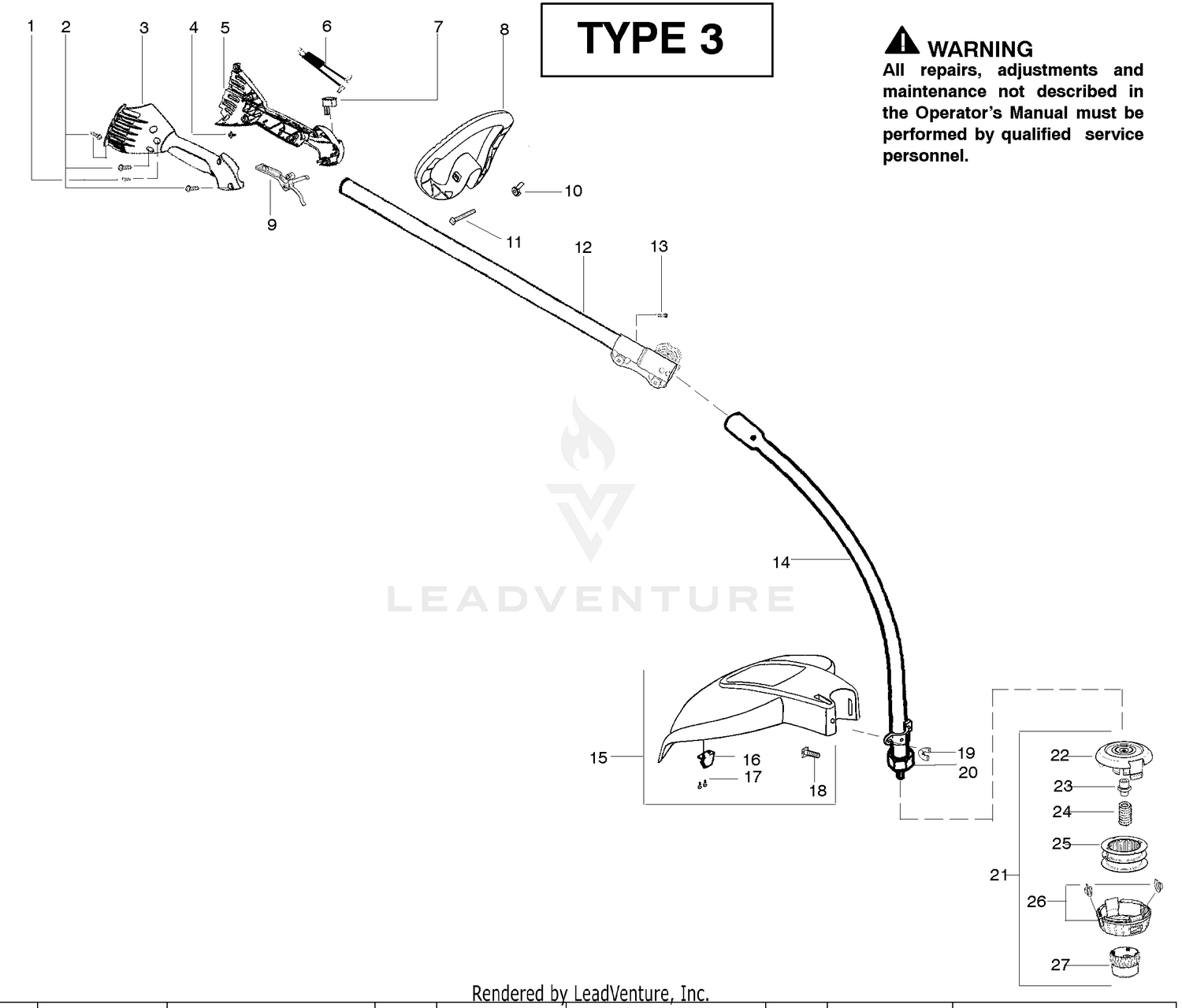

Shaft - Type 3
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015886 | Screw This part replaces 530015805. Price: $1.99 |
| 2 | 530015886 | Screw Price: $1.99 |
| 3 | 530057983 | Hsg.-Throttle right Price: $7.99 |
| 4 | 530016326 | Screw-Cable Retention Price: $1.99 |
| 5 | 530057984 | Hsg.-Left throttle Price: $6.99 |
| 6 | 530058843 | Assy-Wire Price: $5.99 |
| 7 | 530071356 | Kit-Switch Price: $4.99 |
| 9 | 545017701 | TRIGGER THROTTLE RED This part replaces 530058759. Price: $1.99 |
| 10 | 530401992 | Wingnut This part replaces 530016152. Price: $2.99 |
| 11 | 530015786 | Bolt Price: $1.99 |
| 13 | 530016344 | Screw Price: $1.99 |
| 14 | 530071788 | Kit-Lower Shaft This part replaces 545024301. Price: $36.99 |
| 16 | 530052286 | Limiter-Line Price: Call Us |
| 17 | 530015814 | Screw Price: $1.49 |
| 18 | 530015820 | Bolt Price: $1.99 |
| 19 | 530401992 | Wingnut This part replaces 530016152. Price: $2.99 |
| 20 | 530057559 | Dustcup Price: $2.99 |
| 21 | 952701717 | Accy-TNG7 Head Price: Call Us |
| 22 | 537419303 | Housing Price: $6.99 |
| 23 | 537419901 | Adapter Price: $5.99 |
| 24 | 537338801 | Spring Price: $2.99 |
| 25 | 952711636 | Accy-Wound Spool Price: Call Us |
| 26 | 545003365 | Kit-Cover and Eyelet Price: $8.99 |
| 27 | 537419601 | Knob Price: $3.99 |
