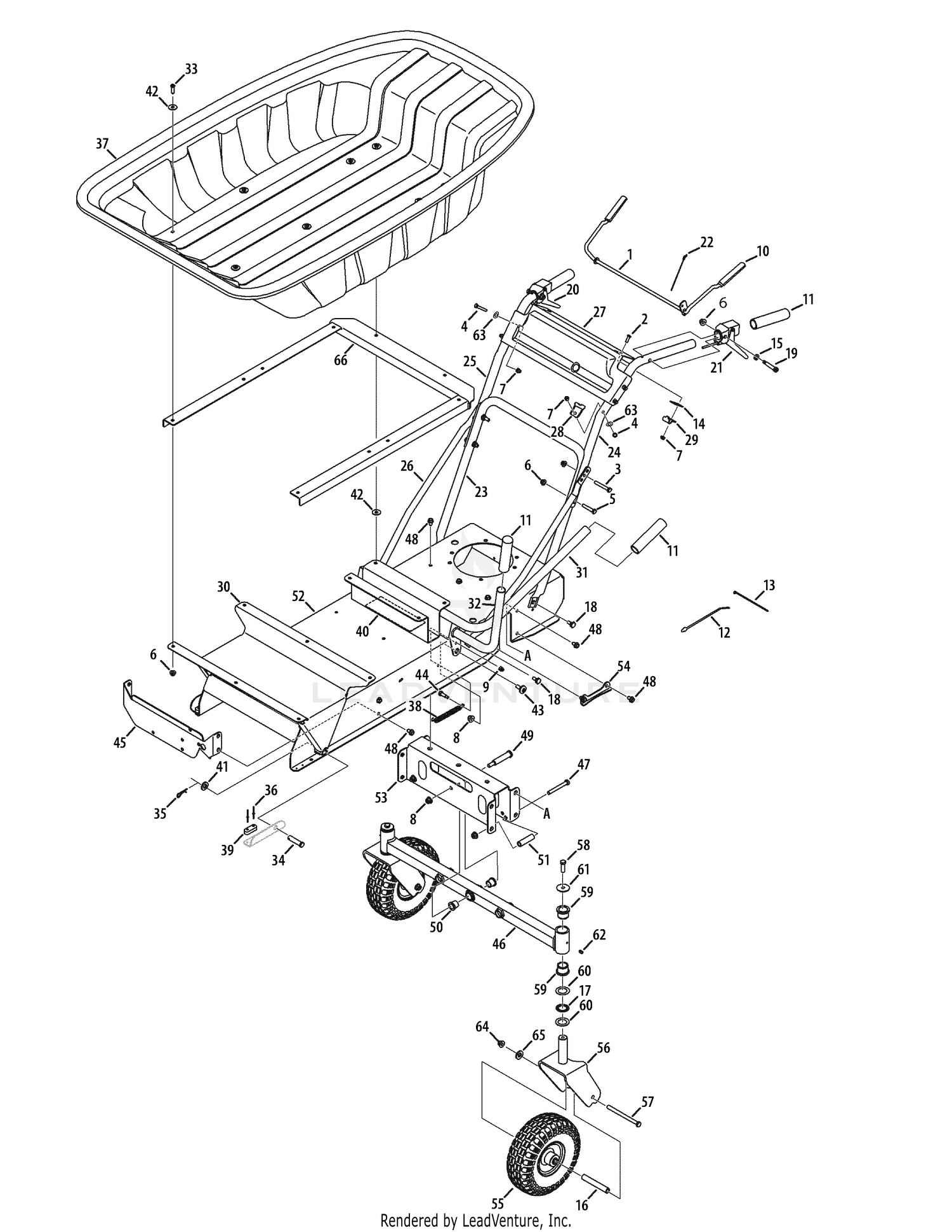

Bed,Frame & Rear Wheels

Bed,Frame & Rear Wheels

Parts (65)

RefPart NumberDescription
1 681-04154-0637 BRAKE BAIL ASSEMBLY (POWDER BLACK) Not Available Price:
2 710-0924 Screw, 1/4-20 x 0.750 Price: $4.02
3 710-0395 Hex Head Screw, 5/16-18 x 2.25 Price: $4.08
4 710-0606 Hex Head Screw, 1/4-20 x 1.50 Price: $4.67
5 710-3180 Hex Head Screw, 5/16-18 x 1.75 Price: $4.93
6 712-04063 Flangelock Nut, 5/16-18 Price: $3.56
7 712-04064 Flangelock Nut, 1/4-20 Price: $3.64
8 712-04065 Flangelock Nut, 3/8-16 Price: $3.68
9 712-0442 Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01
10 720-0270A Reverse Handle Grip Price: $7.38
11 720-0274 Grip, 1.0 ID x 5.0 LG Price: $9.99
12 926-0154 Cable Tie, 7.5 LG, Push Mount Price: $5.50
13 726-0317 Cable Tie, 8.5 LG Price: $4.26
14 735-04182 DAMPER PAD Not Available Price:
15 736-0169 L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33
16 750-05255 CASTER WHEEL SPACER Not Available Price:
17 741-3083 Thrust Bearing Needle, 1.00 x 1.562 Price: $14.74
18 738-0140 Shoulder Screw, .435 x .178, 5/16 x .56 This part replaces 938-0140. Price: $4.93
19 738-04402 SHOULDER SCREW Not Available Price:
20 946-04592 FORWARD CABLE Not Available Price:
21 946-04595 REVERSE CABLE Not Available Price:
22 946-04598 BRAKE RELEASE CABLE Not Available Price:
23 749-04330-0637 Lower Handle Price: $74.61
24 749-04331-0637 UPPER HANDLE (LH) (POWDER BLACK) Not Available Price:
25 749-04332-0637 Upper Handle, RH Price: $46.32
26 749-04333-0637 Handle Adjuster Brace Tube Price: $40.61
27 781-04360-0638 HANDLE PANEL (MTD RED) Not Available Price:
28 781-04373-0637 CABLE MOUNTING BRACKET (LH) Not Available Price:
29 786-0098-0637 RETAINING BRACKET Not Available Price:
30 681-04133-0638 PIVOT BRACKET (MTD RED) Not Available Price:
31 681-04155-0638 DUMP BED HANDLE (MTD RED) Not Available Price:
32 681-04158-0638 BED HANDLE LATCH (MTD RED) Not Available Price:
33 710-1669 Screw, 5/16-18 x 1.00 Price: $4.56
34 711-05217 Clevis Pin, .500 x 2.00 Price: $11.63
35 714-0145 Click Pin This part replaces 914-0145. Price: $4.42
36 728-04041 RIVET-.125 x .625 Not Available Price:
37 931-06908 WHEEL BARROW BED Not Available Price:
38 732-04579 Extension Spring, .60 OD x 6.44 LG Price: $8.89
39 735-04172 PAD BUMPER Not Available Price:
40 735-04173 BED HANDLE RUBBER PAD Not Available Price:
41 736-0326 Flat Washer,.510 x 1.00 This part replaces 936-0326. Price: $3.89
42 736-3078 Washer, Flat, .344 x 1.00 x .063 Price: $3.95
43 738-04012C Shoulder Screw, .625 x .145, 3/8-16 This part replaces 738-04012A. Price: $4.75
44 738-3141 Screw, Shoulder, .31x .75, 1/4-20 This part replaces 938-3141. Price: $4.51
45 781-04335-0638 TRANSMISSION SUPPORT BRACKET(MTD RED) Not Available Price:
46 681-04146-0638 PIVOT AXLE ASSEMBLY (MTD RED) Not Available Price:
47 710-0521 Hex Head Screw, 3/8-16 x 3.00 Price: $4.54
48 710-0604A Screw, 5/16-18 x 0.625 Price: $3.96
49 738-04216A Shoulder Bolt, 3/8-16 x .625 x 2.515 Price: $7.17
50 741-0353 Flange Bearing This part replaces 941-0353. Price: $10.44
51 750-05156 SPACER TUBE Not Available Price:
52 781-04329-0638 FRAME (MTD RED) Not Available Price:
53 781-04348-0638 PIVOT AXLE BRACKET (MTD RED) Not Available Price:
54 781-04379-0638 FRAME BRACE BRACKET(MTD RED) Not Available Price:
55 634-04584 WHEEL ASSEMBLY (10 x 3.5) Not Available Price:
56 681-04165-0638 CASTER WHEEL (MTD RED) Not Available Price:
57 710-0615A Hex Head Screw, 3/8-16 x 5.00 Price: $5.82
58 710-0879 Hex Head Screw, 3/8-24 x 1.25 Price: $3.34
59 731-05500 Flange, Bearing, 1.00 ID x 1.246 OD Price: $9.18
60 936-0163 Washer, Flat, 1.03 x 1.62 x .03 Price: $4.05
61 736-0234 Washer, Flat, .385 x 1.5 x .075 Price: $5.29
62 937-3000 Drive Lube Fitting,3/16 Price: $4.04
63 736-0173 Washer, Flat, .28 x .74 x .063 Price: $3.76
64 712-0266A Nut, Jamlock, 3/8-16 Price: $3.43
65 736-0185 Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43
