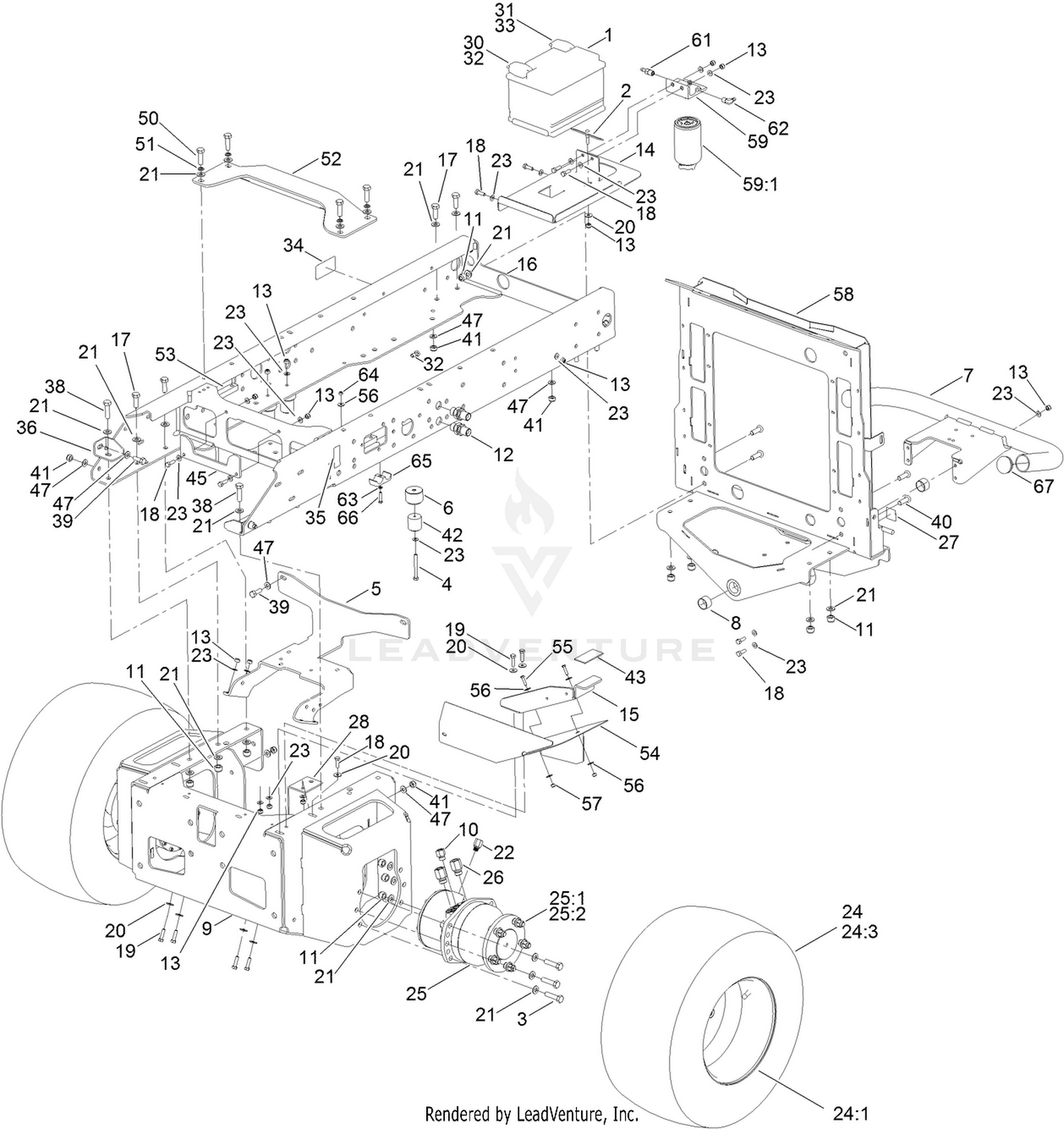

| Ref | Part Number | Description |
|---|
| 1 |
70-09-015 |
BATTERY Price: $137.52 |
| 2 |
70-01-340 |
BATTERY RETAINER W/ASSY Price: $50.28 |
| 3 |
09552 |
BOLT M12 X 50 HEX HD Price: $1.40 |
| 4 |
ZBH1H075U |
HEX HD BOLT M8*75 Price: $1.38 |
| 5 |
111-6791-03 |
BRACKET-MANIFOLD, CUTTER Price: $124.40 |
| 6 |
111-5305 |
BUMP STOP Price: $20.82 |
| 7 |
134-2173-03 |
Bumper Bar ASM Price: $188.20 |
| 8 |
65-07-051 |
BUSHING Price: $8.47 |
| 9 |
111-2105-03 |
CHASSIS FRONT W/A Price: $797.81 |
| 10 |
111-3509 |
ADAPTOR 3/8" BSP - T1FQLD Price: $15.31 |
| 11 |
ZNN1L000U |
HEX.NUT NYLOC M12 Price: $1.40 |
| 12 |
111-9109 |
FITTING-STRAIGHT Price: Call Us |
| 13 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 14 |
111-9658-03 |
MOUNT-BATTERY Price: Call Us |
| 15 |
111-3217-03 |
PLATFORM SUPPORT FRONT LH Price: $53.28 |
| 16 |
111-8020-03 |
CHASSIS-CENTRE Price: $623.58 |
| 17 |
ZDH1L035U |
HEX.HD.SET SCW.M12*35 Price: $1.38 |
| 18 |
03162 |
STEEL BOLT Price: $1.39 |
| 19 |
09369 |
SETSCREW M8 X 30 Price: $1.40 |
| 20 |
09267 |
WASHER 5/16 X 7/8 X 15G GALV Price: $1.39 |
| 21 |
HY09485 |
WASHER M12 PLAIN Price: $1.40 |
| 22 |
111-3538 |
ADAPTOR 1/4" BSP M - T1FQLD Price: $14.71 |
| 23 |
09475 |
WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40 |
| 24 |
111-6878 |
WHEEL ASM Price: $428.56 |
| 25 |
134-3968 |
MOTOR-WHEEL, FRONT Price: $2,186.26 |
| 26 |
111-3529 |
ADAPTOR 1/2" BSP M TO 8FQLH Price: $16.54 |
| 27 |
70-13-072 |
DECAL - JACKING POINT Price: $4.88 |
| 28 |
111-9126-03 |
BRACKET-VALVE, MOUNTING Price: Call Us |
| 30 |
70-09-171 |
TERMINAL Q R & VE Price: $13.80 |
| 31 |
122-1276 |
NEGATIVE BATTERY CABLE ASM This part replaces 70-09-172. Price: $75.81 |
| 32 |
111-3690 |
BATTERY CABLE +VE Price: $56.00 |
| 33 |
70-09-170 |
CABLE BATTERY - VE Price: $48.58 |
| 34 |
950889 |
DECAL WARNING HOT SURFACE Price: $22.13 |
| 35 |
111-3901 |
DECAL-TRANSMISSION, OIL Price: $4.30 |
| 36 |
111-7092-03 |
BRACKET-CHASSIS, UNIVERSAL Price: $14.82 |
| 38 |
ZBH1L045U |
HEX HD.BOLT M12*45 Price: $1.38 |
| 39 |
09392 |
SETSCREW M10 X 30 HEX HD Price: $1.31 |
| 40 |
09419 |
SCREW SOC HD BUTTON M12*35 Price: $3.84 |
| 41 |
ZNN1J000U |
HEX.NUT NYLOC M10 Price: $1.42 |
| 42 |
61-07-003 |
RUBBER BUFFER Price: $9.55 |
| 43 |
HY910808 |
STRIP - NEOPRENE Price: $15.11 |
| 45 |
111-5538-03 |
LOCATION-PLATE Price: $9.05 |
| 47 |
ZWQ1J000U |
PLAIN HEAVY WASHER M10 Price: $1.38 |
| 50 |
63-11-010 |
HEX HD.BOLT M12*40HT/10.9 Price: $6.59 |
| 51 |
09599 |
WASHER Price: $1.42 |
| 52 |
111-7065-03 |
BRACE Price: $85.19 |
| 53 |
111-7094 |
BRACE-CHASSIS Price: $25.23 |
| 54 |
111-7252-03 |
DEFLECTOR-GRASS, CUTTER (LH) Price: $40.45 |
| 55 |
09364 |
SETSCREW M6 X 25 Price: $1.34 |
| 56 |
09262 |
WASHER 1/4 X 3/4 GALV ROOFING Price: $1.40 |
| 57 |
09544 |
NUT M6 NYL INS GD 8 Price: $1.34 |
| 58 |
111-8460-03 |
CHASSIS-REAR Price: $1,220.04 |
| 59 |
110-9044 |
SEPARATOR-FILTER Price: $98.19 |
| 61 |
353-783 |
FITTING-STR Price: $29.05 |
| 62 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 67 |
994856 |
INSERT ROUND Price: $1.35 |
