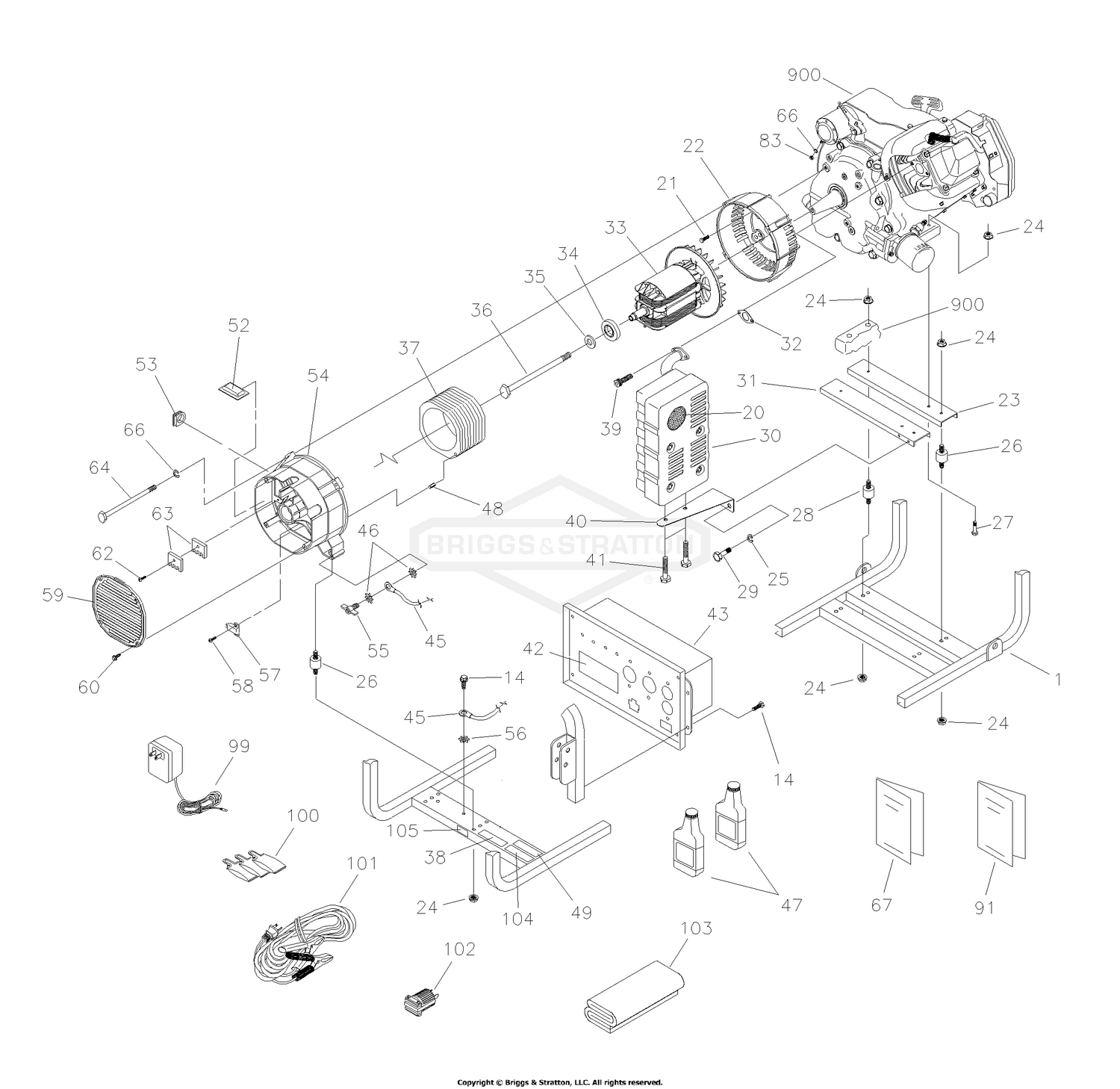

| Ref | Part Number | Description |
|---|
| 1 |
M197022GS |
CRADLE, Red This part replaces A187024GS. Price: $299.99 |
| 14 |
B2153GS |
SCREW, 12-14 x 7/8, Self Driller Price: $3.95 |
| 20 |
83083GS |
SCREEN, Spark Arrester Price: $8.49 |
| 21 |
86307GS |
HHMS, 5/16-24 x 3/4" SEMS Price: $2.19 |
| 22 |
92247GS |
HOUSING, Engine Adapter Price: $86.95 |
| 23 |
A92531GS |
SUPPORT, Engine Price: $17.60 |
| 24 |
189160GS |
NUT, 5/16-18 Flange Serrated Price: $2.40 |
| 25 |
22129GS |
WASHER, Lock - M8 Price: $2.61 |
| 26 |
82857GS |
MOUNT,Vibration Price: $10.31 |
| 27 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 22531GS. Price: $3.40 |
| 28 |
92609GS |
MOUNT,Vibration Price: $24.49 |
| 29 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 22142GS. Price: $3.19 |
| 30 |
A7433GS |
MUFFLER Price: $94.60 |
| 31 |
M92731GS |
SUPPORT, Engine & Muffler This part replaces A92731GS. Price: $18.20 |
| 32 |
90239GS |
GASKET, Muffler Price: $3.73 |
| 33 |
B1342GGS |
ASSEMBLY, Rotor Price: $419.99 |
| 34 |
65791GS |
BEARING Price: $32.00 |
| 35 |
96796GS |
WASHER, Special Flat - M8 Price: $2.79 |
| 36 |
47481GS |
HHCS, 5/16-24 x 10-5/8 Price: $9.60 |
| 37 |
B1897AGS |
ASSEMBLY, Stator Price: $827.96 |
| 38 |
20566GS |
DECAL, 1-800 Price: Call Us |
| 39 |
40976GS |
SCREW, M8 - 1.25 x 20 Price: $2.79 |
| 40 |
92532GS |
BRACKET, Muffler Price: $18.18 |
| 41 |
66476GS |
CAPSCREW, M6 - 1.0 x 12mm Price: $2.94 |
| 42 |
189779GS |
DECAL, Control Panel Price: Call Us |
| 43 |
92630GS |
ASSEMBLY, Control Box Price: $394.99 |
| 45 |
195373GS |
WIRE, Ground This part replaces 14353621GS. Price: $1.85 |
| 46 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 47 |
BB3061GS |
BOTTLE, Oil Price: $12.94 |
| 48 |
81917GS |
PIN, Roll 4mm x 10 Price: $2.79 |
| 49 |
76247GS |
DECAL, French Neutral Ground Price: Call Us |
| 52 |
84132GS |
ASSEMBLY, Power Regulator Price: $31.80 |
| 53 |
67022GS |
GROMMET, Rubber Price: $2.55 |
| 54 |
SRV66825DGS |
CARRIER, Rear Bearing Price: $120.36 |
| 55 |
86494GS |
SCREW, M6-1.0 x 16 Wing Price: $2.51 |
| 56 |
23762GS |
WASHER, Shakeproof #10 Price: $2.64 |
| 57 |
66386GS |
ASSEMBLY, Brush Holder Price: $21.52 |
| 58 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 59 |
B4871GS |
COVER, Bearing Carrier Price: $4.15 |
| 60 |
74908GS |
TAPTITE, M5-0.8 x 10 Price: $2.69 |
| 62 |
66849CGS |
TAPTITE, M5-0.8 x 30 Price: $3.79 |
| 63 |
65795GS |
RECTIFIER, Battery Charge Price: $10.80 |
| 64 |
66449LGS |
BOLT Price: $28.08 |
| 66 |
22097GS |
WASHER Price: $3.05 |
| 67 |
189702GS |
MANUAL, Operators Price: Call Us |
| 83 |
22127GS |
NUT, Hex, 1/4-20 Price: Call Us |
| 91 |
A8927GS |
MANUAL, Engine Price: Call Us |
| 99 |
84002790 |
CHARGER, Battery This part replaces B4177GS. Price: $34.12 |
| 100 |
189208GS |
FUEL STABILIZER, 1 oz Tube Price: $2.80 |
| 101 |
65787GS |
CABLE, Battery Charge Price: $13.36 |
| 102 |
100523GS |
PLUG, 125V 30A 3-Prong This part replaces 37806GS. Price: $10.65 |
| 103 |
B4767GS |
COVER, Storage Price: $77.80 |
| 104 |
74728GS |
DECAL, English Neutral Ground Price: $4.05 |
| 105 |
B4986GS |
DECAL, Ground Price: $2.75 |
