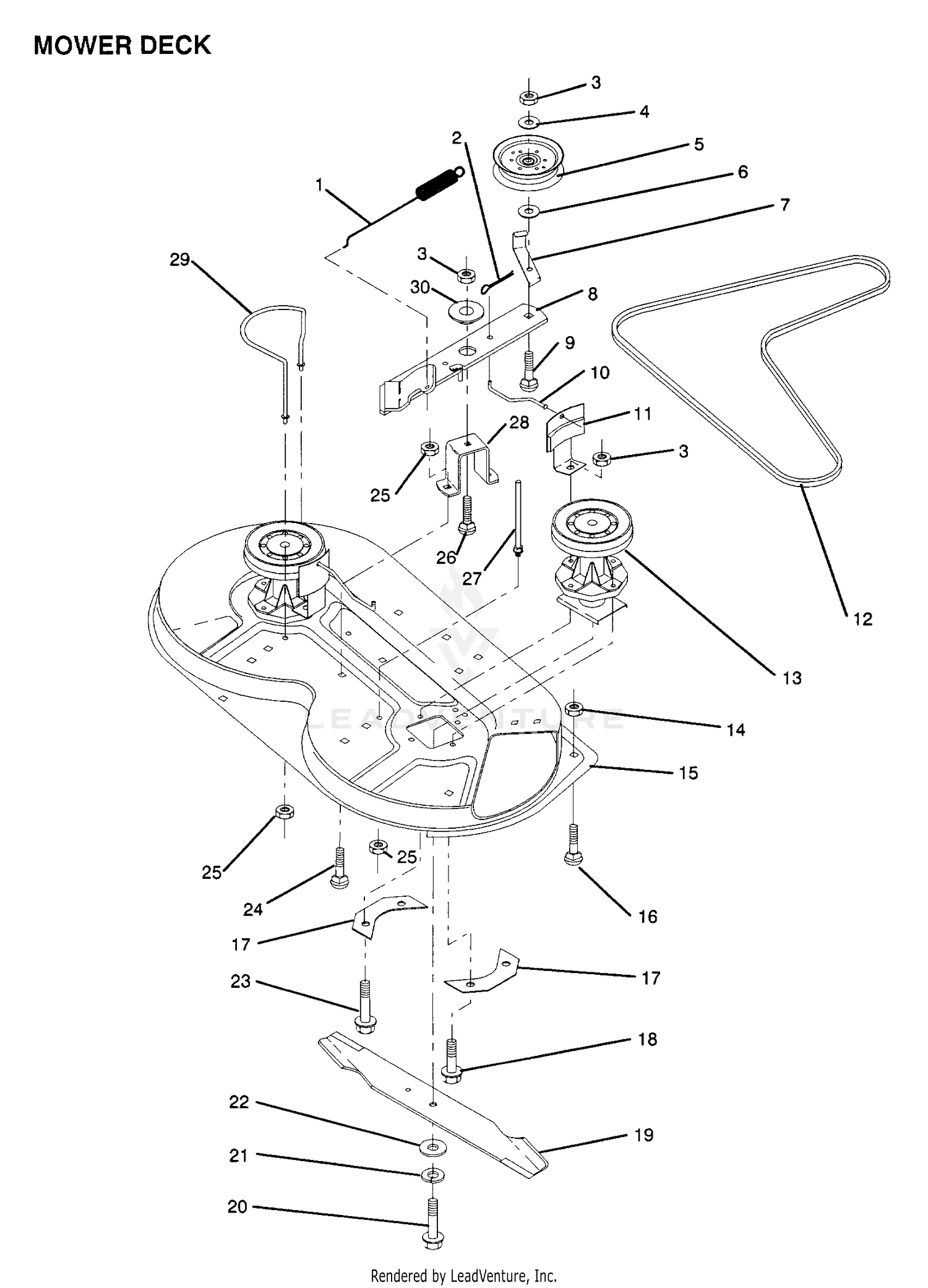

| Ref | Part Number | Description |
|---|
| 1 |
122028X |
SUB= 140064 Price: Call Us |
| 2 |
76020312 |
SUB= 3145 Price: Call Us |
| 3 |
73680600 |
SUB= 73690600 Price: Call Us |
| 4 |
19131412 |
WASHER Price: Call Us |
| 5 |
121316X |
PULLEY IDLER Price: Call Us |
| 6 |
19132203 |
WASHER GT Price: Call Us |
| 7 |
126756X |
GUIDE.BELT Price: Call Us |
| 8 |
123702X |
IDLER ARM ASS'Y Price: Call Us |
| 9 |
72110618 |
BOLT CARRIAGE Price: Call Us |
| 10 |
122049X |
ROD BRAKE Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 11 |
106578X |
BRAKE LT Price: Call Us |
| 12 |
124293X |
BELT.MOWER.79.75 Price: Call Us |
| 13 |
124208X |
MANDREL ASS'Y Price: Call Us |
| 14 |
73680400 |
SUB= 73690400 Price: Call Us |
| 15 |
126410X |
SUB= 144727 Price: Call Us |
| 16 |
72140404 |
BOLT Price: Call Us |
| 17 |
100668L |
SUPPORT PLATE LT Price: Call Us |
| 18 |
17490614 |
SCREW Price: Call Us |
| 20 |
74610624 |
BOLT.3/8-24X1-1/2 Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
10030600 |
SUB= 10040600 Price: Call Us |
| 22 |
19132012 |
WASHER Price: Call Us |
| 23 |
17490620 |
SCREW Price: Call Us |
| 24 |
72140505 |
BOLT Price: Call Us |
| 25 |
73680500 |
SUB= 73690500 Price: Call Us |
| 26 |
72110608 |
BOLT D Price: Call Us |
| 29 |
123673X |
GUIDE BELT LH Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
