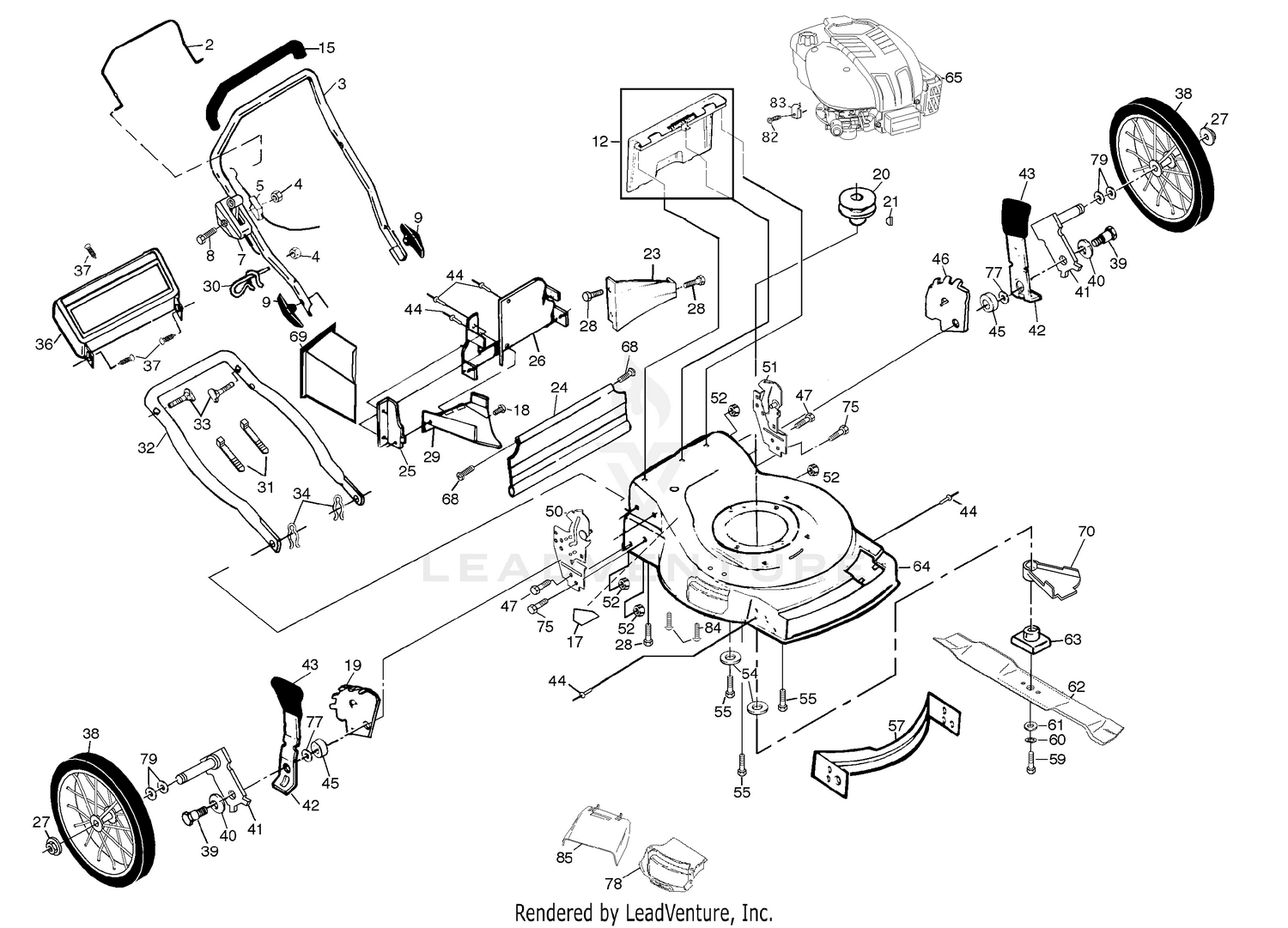

| Ref | Part Number | Description |
|---|
| 2 |
532146900 |
BAIL.CONTROL.WIRE.STD.COMF.BLK Price: $7.99 |
| 3 |
532166267 |
UPPER HANDLE Price: $41.99 |
| 4 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 5 |
532130861 |
CABLE.MZR.51.RT.SP./PU. Price: $10.99 |
| 7 |
532182157 |
CONTROL.THROTL.48.5.INTK.RT.HS This part replaces 532166971. Price: $14.99 |
| 8 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 9 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 12 |
532151023 |
KIT.DOOR.REAR.22.STEEL.BLACK Price: $22.99 |
| 15 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532164265. Price: $4.99 |
| 17 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 18 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 19 |
532800368 |
WHL ADJ BRKT LF/RR Price: $5.99 |
| 20 |
532084596 |
ENGINE.PULLEY.FWG Price: $27.99 |
| 21 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 23 |
532133040 |
REAR BAFFLE This part replaces 532125348. Price: $4.99 |
| 24 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140540. Price: $11.99 |
| 25 |
532138860 |
SIDE BAFFLE Price: $3.16 |
| 26 |
532166800 |
BACK PLATE Price: $6.39 |
| 27 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 28 |
532054583 |
SCREW Price: $4.99 |
| 29 |
532133190 |
DISCHARGE BAFFLE This part replaces 532125376. Price: $4.99 |
| 30 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 31 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 32 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532157082. Price: $54.99 |
| 33 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 34 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 36 |
532157070 |
TRIM PLATE Price: $4.53 |
| 37 |
532701477 |
FASTENER Price: $2.38 |
| 38 |
532752063 |
WHEEL.14X2.PR.SP.RAD.GY This part replaces 532088017. Price: $69.99 |
| 39 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 40 |
532401630 |
WASHER.CURVED.CYLINDRICAL This part replaces 532061651. Price: $3.99 |
| 41 |
532751333 |
AXLE ARM This part replaces 532125323. Price: $3.99 |
| 42 |
532125066 |
SELECTOR SPRING Price: $4.99 |
| 43 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 44 |
532128415 |
RIVET BLIND Price: $3.99 |
| 45 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 46 |
532140058 |
BRACKET WHL ADJ This part replaces 532800370. Price: $4.99 |
| 47 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 50 |
532161812 |
BRACKET This part replaces 532162353. Price: $10.99 |
| 51 |
532161814 |
BRACKET.ASM.HDL/HW.22RD.LT.BLA This part replaces 532162354. Price: $7.99 |
| 52 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 54 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 55 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 57 |
532170557 |
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD This part replaces 532144964. Price: $27.99 |
| 59 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 60 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 61 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 62 |
532141114 |
BLADE 22" Price: $24.99 |
| 63 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 68 |
532088652 |
HINGE SCREW Price: $3.99 |
| 69 |
532166649 |
PLUG.MULCH.22RD Price: $27.99 |
| 70 |
532048283 |
KIT.SHIELD.DEBRIS.21.RWGD.EZ This part replaces 532134612. Price: $12.99 |
| 75 |
874760612 |
BOLT Price: $3.99 |
| 77 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 78 |
532147738 |
DOOR.ASM.MULCHER.COMBI-CUT. This part replaces 532150756. Price: $24.99 |
| 79 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 82 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 83 |
532125078 |
WASHER.ENGINE.BZP This part replaces 532213146. Price: $4.99 |
| 84 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 85 |
532145285 |
CLIP-ON DISCHARGE DEFLECTOR This part replaces 532150653. Price: $8.99 |
| 530402152 |
WARNING |
DECAL This part replaces 532162300. Price: $1.33 530402152 |
