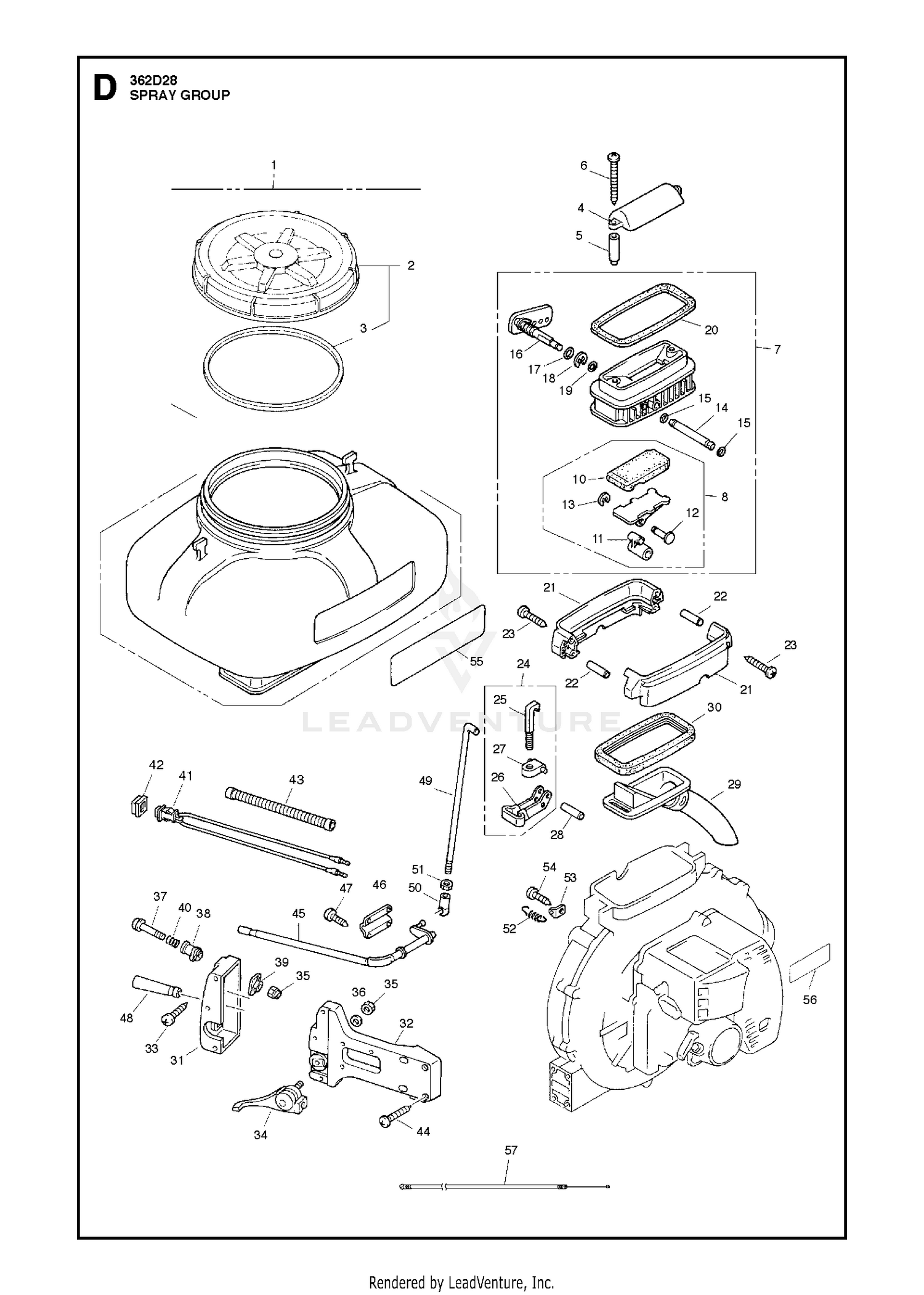

SPRAY SYSTEM
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 577371901 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 529312201 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 513677501 | PLATE Price: $2.22 |
| 5 | 513677601 | COLLAR Price: $1.05 |
| 6 | 513677701 | SCREW Price: $2.99 |
| 7 | 513676101 | CASE Price: $55.66 |
| 8 | 513676401 | SHUTTER ASSY Price: $19.99 |
| 10 | 513677101 | COVER Price: $5.87 |
| 11 | 526339901 | ARM Price: $7.99 |
| 12 | 514312901 | PIN Price: $1.78 |
| 13 | 514306001 | RING Price: $2.99 |
| 14 | 513677301 | PIN Price: $0.12 |
| 15 | 516135901 | O-RING Price: $0.40 |
| 16 | 513677401 | SHAFT Price: $5.61 |
| 17 | 516136301 | O-RING Price: $0.51 |
| 18 | 514313101 | RING Price: $0.47 |
| 19 | 516136001 | O-RING Price: $2.99 |
| 20 | 513676201 | GASKET Price: $11.99 |
| 21 | 573932901 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 513680201 | PIN Price: $0.68 |
| 23 | 513680301 | SCREW Price: $0.99 |
| 24 | 526339501 | NEEDS DESCRIPTION Price: Call Us |
| 25 | 513675401 | HOOK Price: $13.97 |
| 26 | 513675501 | LEVER Price: $14.36 |
| 27 | 513675601 | BRACKET Price: $4.97 |
| 28 | 513680201 | PIN Price: $0.68 |
| 29 | 513678001 | GUIDE Price: $16.23 |
| 30 | 513678101 | GASKET Price: $6.38 |
| 31 | 573932501 | NEEDS DESCRIPTION Price: Call Us |
| 32 | 513678401 | BRACKET Price: $14.61 |
| 33 | 514326201 | SCREW Price: $0.52 |
| 34 | 514335901 | LEVER Price: $11.99 |
| 35 | 514324601 | NUT Price: $1.99 |
| 36 | 544276501 | RP_WASHER This part replaces 516078501. Price: $2.99 |
| 37 | 513678501 | SCREW Price: $0.51 |
| 38 | 513678601 | HOLDER Price: $1.70 |
| 39 | 513678701 | PLATE Price: $2.99 |
| 40 | 513678801 | SPRING Price: $1.95 |
| 41 | 514336801 | SWITCH Price: $11.99 |
| 42 | 513351901 | CAP SWITCH Price: $2.99 |
| 43 | 513681601 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 513680301 | SCREW Price: $0.99 |
| 45 | 513678901 | LEVER Price: $51.63 |
| 46 | 513679101 | PLATE Price: $4.82 |
| 47 | 514326201 | SCREW Price: $0.52 |
| 48 | 513679201 | KNOB Price: $3.39 |
| 49 | 513679301 | ROD Price: $12.63 |
| 50 | 514088401 | BALLJOINT Price: $2.56 |
| 51 | 510486601 | NUT Price: $0.27 |
| 52 | 513679401 | SPRING Price: $2.73 |
| 53 | 513679501 | PLATE Price: $1.31 |
| 54 | 513679601 | SCREW Price: $0.40 |
| 55 | 575609001 | NEEDS DESCRIPTION Price: Call Us |
| 56 | 574217401 | NEEDS DESCRIPTION Price: Call Us |
| 57 | 577039301 | NEEDS DESCRIPTION Price: Call Us |
