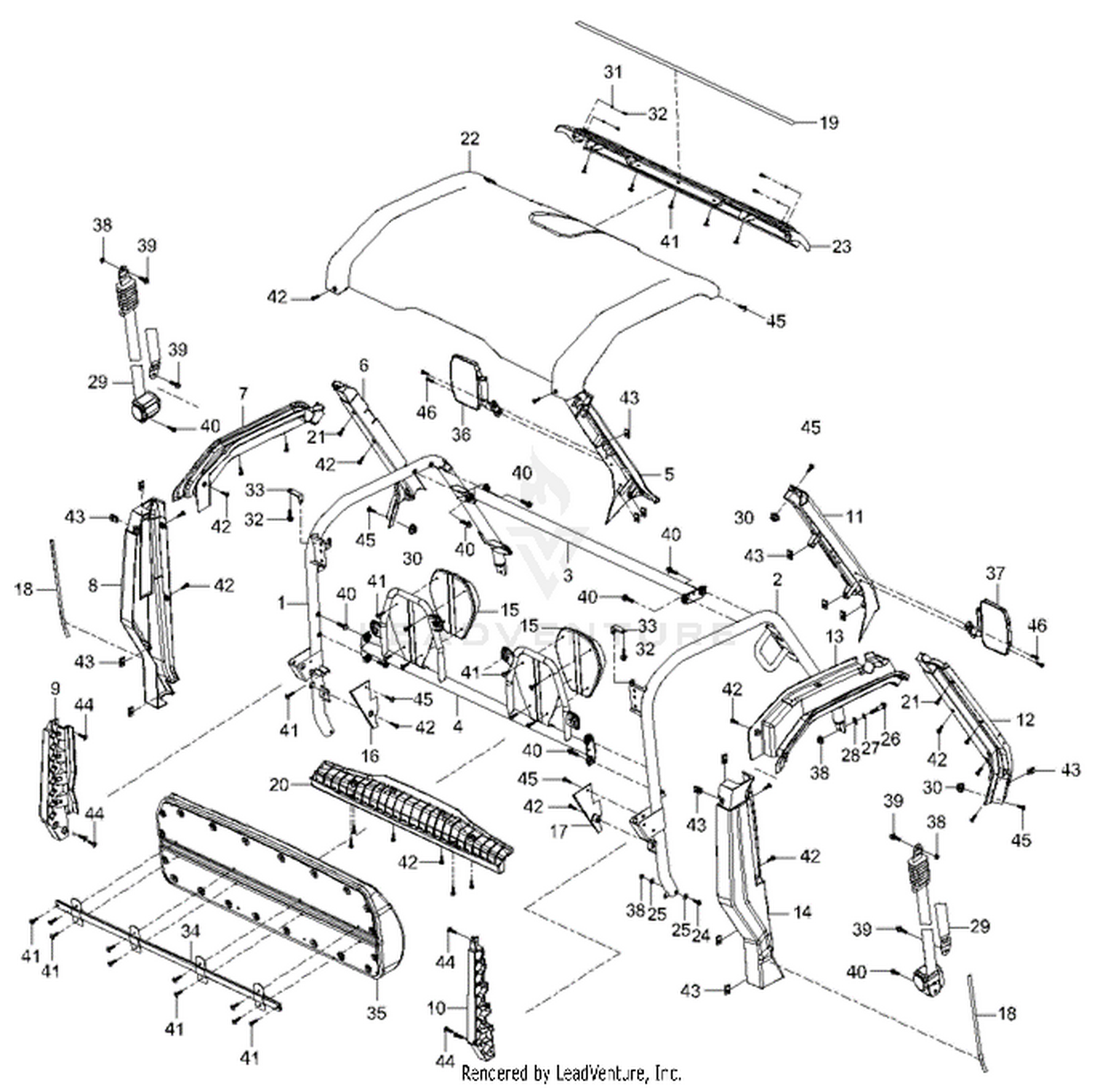

| Ref | Part Number | Description |
|---|
| 1 |
503-01734 |
LEFT SUPPORT FRAME KIT Price: $418.87 |
| 2 |
503-01735 |
RIGHT SUPPORT FRAME KIT Price: $530.95 |
| 3 |
503-01736 |
FRONT TOP FRAME KIT Price: $221.81 |
| 4 |
503-01737 |
REAR TOP FRAME KIT Price: $531.95 |
| 5 |
503-01738 |
A POST TOP COVER - LEFT Price: $38.62 |
| 6 |
503-01739A |
A-PILLAR PANEL (LH) Price: $37.87 |
| 7 |
503-01740 |
TOP - LEFT PROTECTOR COVER Not Available Price: |
| 8 |
503-01741 |
B POST LEFT COVER Price: $61.85 |
| 9 |
503-01742 |
B POST - LEFT Price: $55.05 |
| 10 |
503-01743 |
B POST - RIGHT Price: $55.05 |
| 11 |
503-01744 |
A POST TOP COVER - RIGHT Price: $39.72 |
| 12 |
503-01745A |
A POST LOW COVER - RIGHT Price: $36.44 |
| 13 |
503-01746 |
TOP - RIGHT PROTECTOR COVER Price: $49.96 |
| 14 |
503-01747 |
B POST RIGHT COVER Not Available Price: |
| 15 |
503-03586 |
HEADREST KIT Price: $57.06 |
| 16 |
503-01749 |
B POST PROTECTOR Price: $3.56 |
| 17 |
503-01750 |
B POST PROTECTOR Price: $4.09 |
| 18 |
503-01778 |
DOOR SEAL 4 Not Available Price: |
| 19 |
503-01780 |
ROOF DAMPING BAR SEAL Not Available Price: |
| 20 |
503-01775 |
ROOF GUARD Not Available Price: |
| 21 |
503-02906 |
SCREW ST4.2x16 Price: $0.47 |
| 22 |
503P01755A |
ROOF This part replaces 503-01755A. Price: $486.17 |
| 23 |
503-01756A |
LIGHT KIT BRACKET Price: $142.45 |
| 24 |
503-00292 |
HEX NUT M10X1.25X65 Price: $7.18 |
| 25 |
503-00566 |
CURVED WASHER Price: $3.58 |
| 26 |
503-00319 |
HEX FLANGE BOLT M10X1.25X50 Price: $8.97 |
| 27 |
503-00064 |
SPRING WASHER Price: $5.36 |
| 28 |
503-01395 |
WASHER 10 Price: $3.94 |
| 29 |
503-01762A |
SEAT BELT BUCKLE ASSEMBLY Price: $312.89 |
| 30 |
503-01979 |
HEX FLANG NUT M6 Price: $3.94 |
| 31 |
503-01489 |
FLAT WASHER Price: $3.98 |
| 32 |
503-00021 |
CROSS PLATE HEAD SCREW M6X12 Price: $4.85 |
| 33 |
503-01766 |
BRACKET IV Price: $3.67 |
| 34 |
503-01767 |
BRACKET - BACKREST KIT Not Available Price: |
| 35 |
503-03585 |
SEAT BACKREST KIT Price: $580.35 |
| 36 |
503-01770 |
REARVIEW MIRROR KIT - LEFT Price: $254.61 |
| 37 |
503-01771 |
REARVIEW MIRROR KIT - RIGHT Price: $254.61 |
| 38 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 39 |
503-01772 |
SHOULDER FLANGE BOLT M10X14X9X25 Price: $4.06 |
| 40 |
503-02038 |
HEX FLANGE BOLT (M10x20) Price: $4.58 |
| 41 |
503-00091 |
SCREW M6X16 Price: $5.48 |
| 42 |
503-00129 |
SOCKET HEX FLAT HEAD BOLT M6X16 Price: $5.36 |
| 43 |
503-01702 |
CLAMP NUT M6X6 Price: $6.24 |
| 44 |
503-00042 |
HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 45 |
503-01703 |
HEX HEAD CAP SCREW M6X16 Price: $3.71 |
| 46 |
503-01774 |
HEX HEAD CAP SCREW M8X25 Price: $4.06 |
