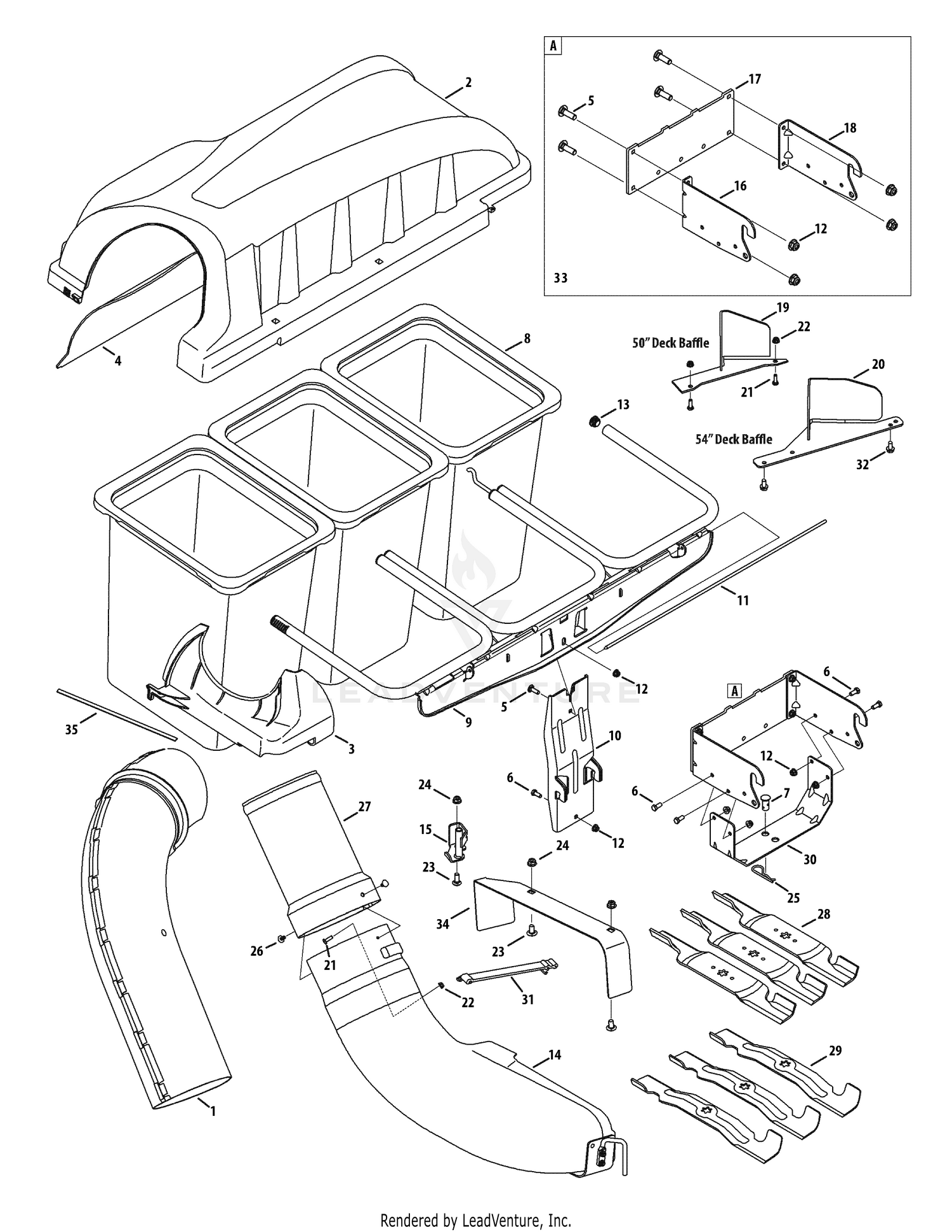

| Ref | Part Number | Description |
|---|
| 1 |
931-04291A |
UPPER CHUTE ASSEMBLY This part replaces 931-04291. Price: $106.94 |
| 2 |
631-04298P |
Triple Bagger Cover Assembly Price: $186.10 |
| 3 |
731-06497 |
Upper Chute Support Price: $31.91 |
| 4 |
731-06504 |
Bagger Cover Screen Price: $15.49 |
| 5 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00" Price: $3.68 |
| 6 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 7 |
711-0309A |
Clevis Pin, .62" Dia. Price: $11.31 |
| 8 |
964-05104 |
GRASSBAG ASSEMBLY W/ HARD BOTTOM (STD) This part replaces 964-04096A. Price: $83.90 |
| 9 |
683-04498B-0637 |
SUPPORT ASSEMBLY (POWDER BLACK) This part replaces 683-04498A. Price: $193.24 |
| 10 |
683-04519B-0637 |
Vertical Support Bracket This part replaces 683-04519. Price: $125.78 |
| 11 |
711-05079 |
Cover Hinge Pin Price: $20.12 |
| 12 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 13 |
735-0246A |
End Plug Price: $5.01 |
| 14 |
631-04493 |
Bagger Discharge Chute, Elbow This part replaces 631-04300B. Price: $207.34 |
| 15 |
683-0617A-0637 |
Chute Stop-Bracket Price: $60.14 |
| 19 |
703-05783-0637 |
Deck Baffle, 50" Price: $76.79 |
| 20 |
703-06018A-0637 |
Deck Baffle, 54" Price: $80.80 |
| 21 |
710-3015 |
Tap Screw, 1/4 -20 x .750 (50" Deck) Price: $3.65 |
| 22 |
712-04064 |
Flange Lock Nut, 1/4 -20 (50" Deck) Price: $3.64 |
| 23 |
710-3168 |
Carriage Screw, 3/8 -16 x 1.00" Price: $3.61 |
| 24 |
712-04065 |
Flange Lock Nut, 3/8 -16 Price: $3.68 |
| 25 |
714-0117 |
Internal Cotter Pin, .148 x 3.00 Price: $3.85 |
| 26 |
726-3046 |
Ratchet Clip, .250 Price: $3.71 |
| 27 |
731-06611 |
Bagger Chute Adapter, 7 In. Price: $41.17 |
| 30 |
783-05887-0637 |
Universal Bracket Support Price: $47.34 |
| 31 |
723-0476 |
Chute Strap Price: $30.86 |
| 32 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 33 |
689-00101 |
Mounting Bracket Kit (Incl. Ref. 16-18) Price: $102.97 |
| 34 |
783-06694A-0637 |
Chute Discharge Plate This part replaces 783-06694-0637. Price: $38.56 |
