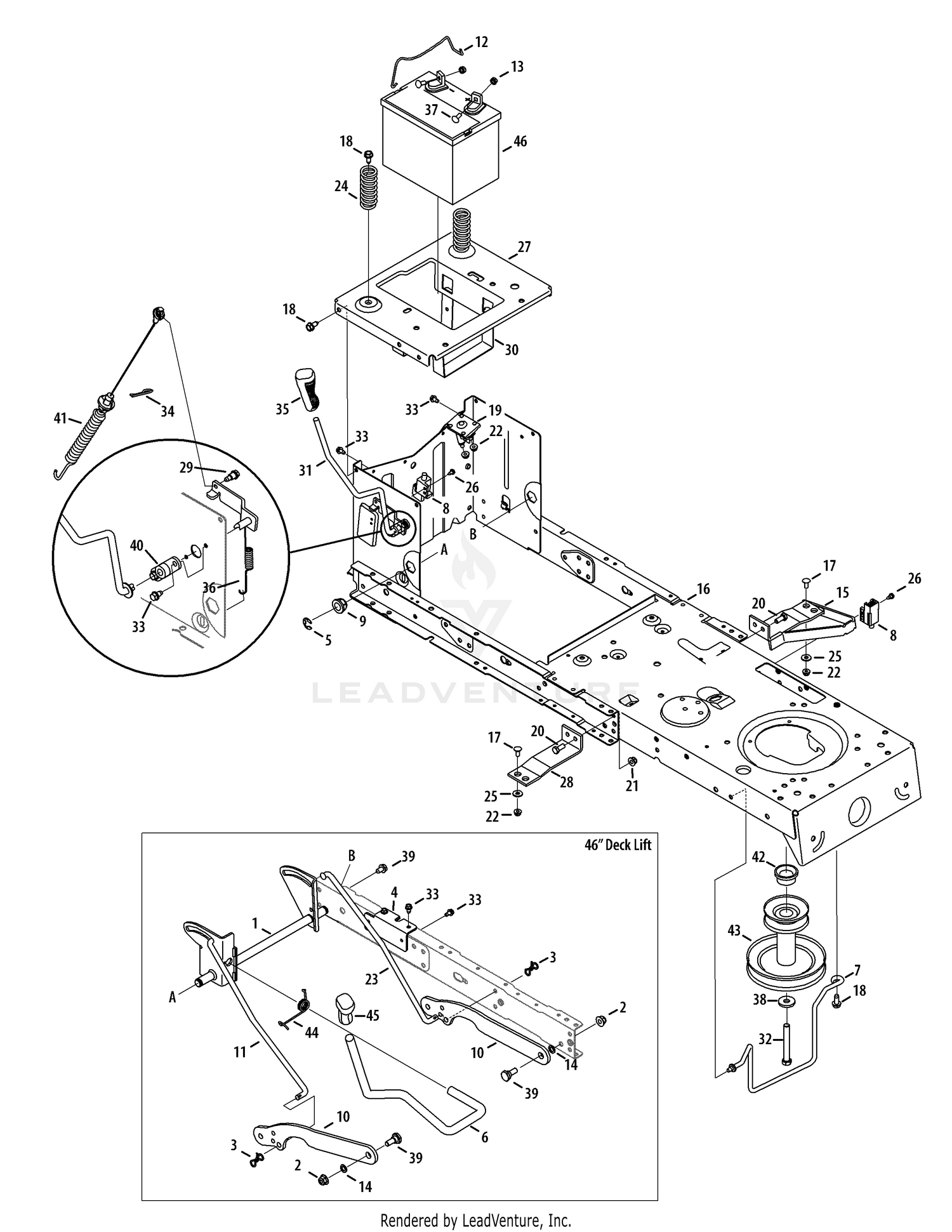

| Ref | Part Number | Description |
|---|
| 1 |
683-04334-0637 |
Shaft Assembly Lift Price: $47.85 |
| 2 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 3 |
714-04040 |
Pin, Cotter, Bow Tie Price: $1.28 |
| 4 |
783-05389A-0637 |
Frame Brace Bracket Price: $7.18 |
| 5 |
716-0106A |
Ring, E-Type, .625 Dia. Price: $4.42 |
| 6 |
747-04653A |
Deck Handle, Lift, 46" Deck Price: $40.06 |
| 7 |
683-04414-0637 |
Rod, Belt Keeper Price: $22.21 |
| 8 |
725-04363 |
Switch, Interlock Price: $13.25 |
| 9 |
941-0225 |
Bearing, Hex Flange Price: $6.55 |
| 10 |
783-0678C-0637 |
Deck Lift Link Price: $26.11 |
| 11 |
747-06237A |
Lift Rod, RH Price: $9.29 |
| 12 |
747-04744A |
BATTERY ROD ASSEMBLY This part replaces 683-04448-0637. Price: $9.09 |
| 13 |
712-0271 |
Nut, Sems, 1/4-20 Price: $3.78 |
| 14 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 15 |
683-04195-0637 |
Support Bracket Assembly Price: $37.53 |
| 16 |
683-05139A-0637 |
FRAME ASSEMBLY (POWDER BLACK) This part replaces 683-05139-0637. Price: $182.74 |
| 17 |
710-0703 |
Screw Carriage, 1/4-20 x .75 Price: $3.66 |
| 18 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 20 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 21 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 22 |
712-04064 |
Nut, Flange Lock, 1/4-20, GrF Price: $3.64 |
| 23 |
747-06253 |
Lift Rod, LH Price: $9.29 |
| 24 |
732-0735A |
Compression Spacer, 1.314 x 2.55 Price: $27.35 |
| 25 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 26 |
738-04237A |
Shoulder Screw, #10-32 x .500 Price: $5.30 |
| 27 |
783-04548D-0637 |
Seat Bracket, Frame Price: $51.45 |
| 28 |
783-04637-0637 |
Bracket, Runing Board Price: $14.46 |
| 29 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 30 |
783-04869A-0637 |
Bracket, Battery Price: $7.91 |
| 31 |
647-05041-0637 |
PTO Handle Assembly Price: $10.38 |
| 32 |
710-3157A |
Hex Screw, 7/16-20 x 3.25 Price: $9.67 |
| 33 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 34 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 35 |
720-04049A |
Grip, Handle, 3/8 Price: $14.09 |
| 36 |
732-04276A |
Spring, Extension Price: $8.55 |
| 37 |
710-04666 |
Screw, Carriage, 1/4-20, .75, Gr5 Price: $6.04 |
| 38 |
736-0322 |
Washer, Flat, .450 x 1.250 x .164 Price: $8.42 |
| 39 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 40 |
741-04119A |
Bearing, PTO Price: $4.56 |
| 41 |
946-05124A |
Deck Engage Cable Price: $21.49 |
| 42 |
750-0956 |
Spacer, 1.010 x 1.400 x .825 Price: $17.79 |
| 43 |
956-04067B |
ENGINE PULLEY (3.56 x 6.12 DIA) This part replaces 956-04067A. Price: $76.13 |
| 44 |
732-04438 |
Spring, Torsion 46" Deck Price: $9.09 |
| 45 |
720-0298 |
Grip, Handle, 5/8 Price: $37.92 |
