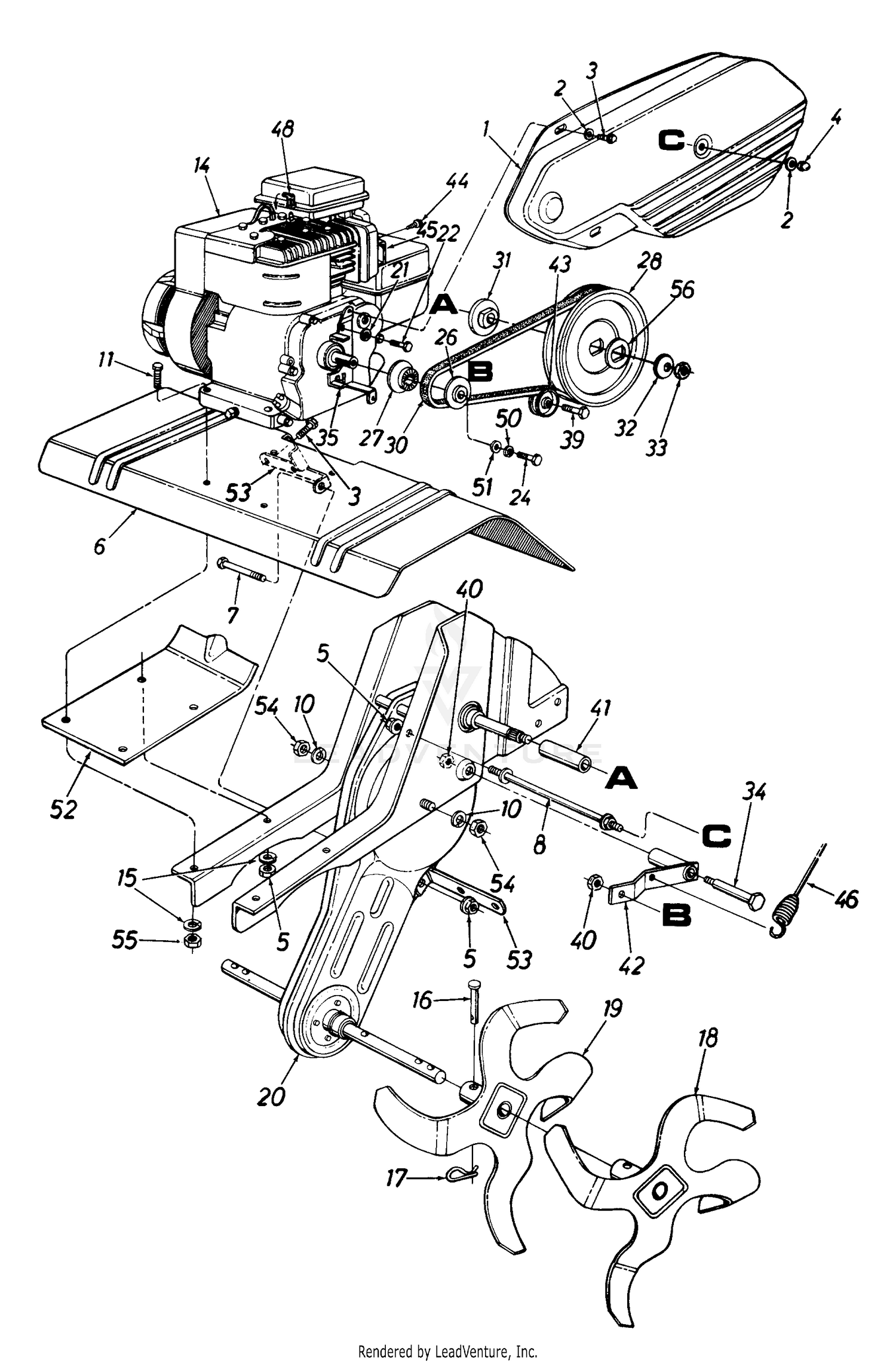

| Ref | Part Number | Description |
|---|
| 1 |
786-0056 |
Cover Belt This part replaces 786-0036. Price: $66.09 |
| 2 |
736-3020 |
Fl-Wash. .266" I.D. x .625" O.D. Price: $5.94 |
| 3 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 4 |
712-0392 |
Hex L-Stop Nut 1/4-28 Thd. Price: $6.01 |
| 5 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 6 |
786-0035 |
TINE SHIELD Not Available Price: |
| 8 |
711-0919 |
Belt Cover Bolt Price: $16.72 |
| 10 |
736-0171 |
L-Wash. 7/16" I.D. Price: $3.86 |
| 11 |
710-3180 |
Hex Bolt 5/16-18 x 1.75" Lg. This part replaces 710-0380. Price: $4.93 |
| 14 |
N/A |
Engine |
| 15 |
736-0170 |
SPECIAL WASHER Not Available Price: |
| 16 |
711-0679A |
Clevis Pin .375" Dia. x 1.88" This part replaces 711-0599. Price: $12.40 |
| 17 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
| 18 |
642-0005-0637 |
Outer Tine Assembly LH This part replaces 642-0005. Price: $53.37 |
| 19 |
642-0003-0637 |
TINE ASSEMBLY (INNER) (LH) This part replaces 642-0003. Price: $53.37 |
| 22 |
710-0107 |
HEX SCREW 5/16-24 x .50 Not Available Price: |
| 24 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 26 |
756-0972 |
Outer Engine Pulley Half Price: $14.17 |
| 27 |
756-0971 |
Inner Engine Pulley Half Price: $12.60 |
| 28 |
756-0585 |
Fl-Pulley 6" Dia. Price: $36.43 |
| 30 |
954-0428 |
V-BELT This part replaces 754-0428. Price: $32.28 |
| 31 |
948-0350 |
PULLEY MOUNTING ADAPTER This part replaces 748-0350. Price: $18.85 |
| 32 |
736-0112 |
Bell-Wash. .535" I.D. x 1.5" O.D. Price: $8.48 |
| 33 |
712-3029 |
Hex Jam Nut 1/2-20 Thd. (Gr. 5) Price: $6.01 |
| 34 |
738-0102 |
Shld. Bolt .498" Dia. x 1.45" Lg. Price: $9.22 |
| 35 |
786-0039B-0637 |
Belt Keeper Bracket This part replaces 786-0039. Price: $42.14 |
| 39 |
710-0723 |
Hex Cap Bolt 3/8-16 x 1.25" Lg. Price: $4.04 |
| 40 |
712-0266A |
JAM LOCK NUT This part replaces 712-0266. Price: $3.43 |
| 41 |
950-0892 |
SPACER This part replaces 750-0892. Price: $9.85 |
| 42 |
686-0011 |
IDLER BRACKET ASSEMBLY Not Available Price: |
| 43 |
756-0199 |
Fl-Idler 2" O.D. Price: $22.53 |
| 44 |
710-0783 |
HEX SCREW WASH HD 10-32X.38 Not Available Price: |
| 45 |
BS-796956 |
MUFFLER DEFLECTOR Not Available This part replaces 751-0233. Price: |
| 51 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1" O.D. Price: $3.93 |
| 52 |
786-0047 |
ENGINE PLATE Not Available Price: |
| 53 |
786-0053-0637 |
Tine Shield Bracket This part replaces 786-0053. Price: $9.28 |
| 54 |
912-0240 |
Hex Jam Nut 7/16-20 This part replaces 712-0240. Price: $3.90 |
| 55 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
