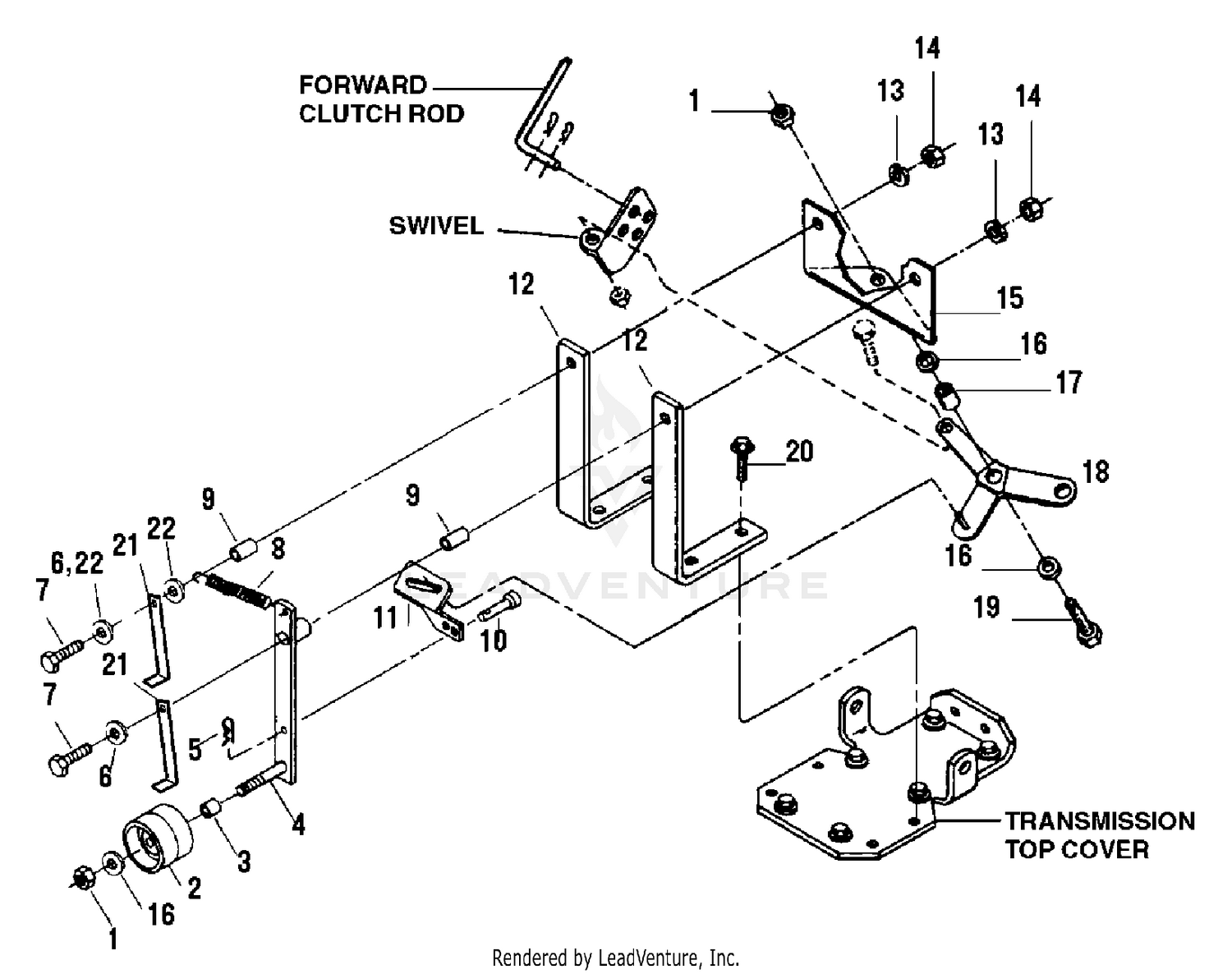

| Ref | Part Number | Description |
|---|
| 1 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 2 |
756-04170 |
Forward Idler Pulley This part replaces 9090. Price: $31.29 |
| 3 |
GW-20532 |
BUSHING-.5X.38X.4 Not Available This part replaces 20532. Price: |
| 4 |
1916192001 |
IDLER ARM-LEFT, FORWARD TILLER DIRECTION Not Available Price: |
| 5 |
714-04048 |
PIN - hair cotter This part replaces 9338. Price: $7.04 |
| 6 |
20545 |
WASHER Not Available Price: |
| 8 |
732-04078 |
FORWARD RETURN SPRING Not Available This part replaces 1916727. Price: |
| 9 |
9479 |
Pivot Bushing Price: Call Us |
| 10 |
9340 |
Pin Price: Call Us |
| 11 |
20517-01 |
FORWARD LINK Not Available Price: |
| 12 |
1916194001 |
MOUNTING BAR Not Available Price: |
| 13 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 14 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 15 |
1916195001 |
SHIFTING BASE Not Available Price: |
| 16 |
GW-20553 |
SPACER .88X.385X.0 Not Available This part replaces 20553. Price: |
| 17 |
GW-20532 |
BUSHING-.5X.38X.4 Not Available This part replaces 20532. Price: |
| 18 |
1916196001 |
Bellcrank Price: $38.55 |
| 20 |
710-04048 |
SCREW 5/16-18 x 1 GR5 This part replaces 1186331. Price: $4.19 |
| 21 |
1917149001 |
BELT GUIDE Not Available Price: |
