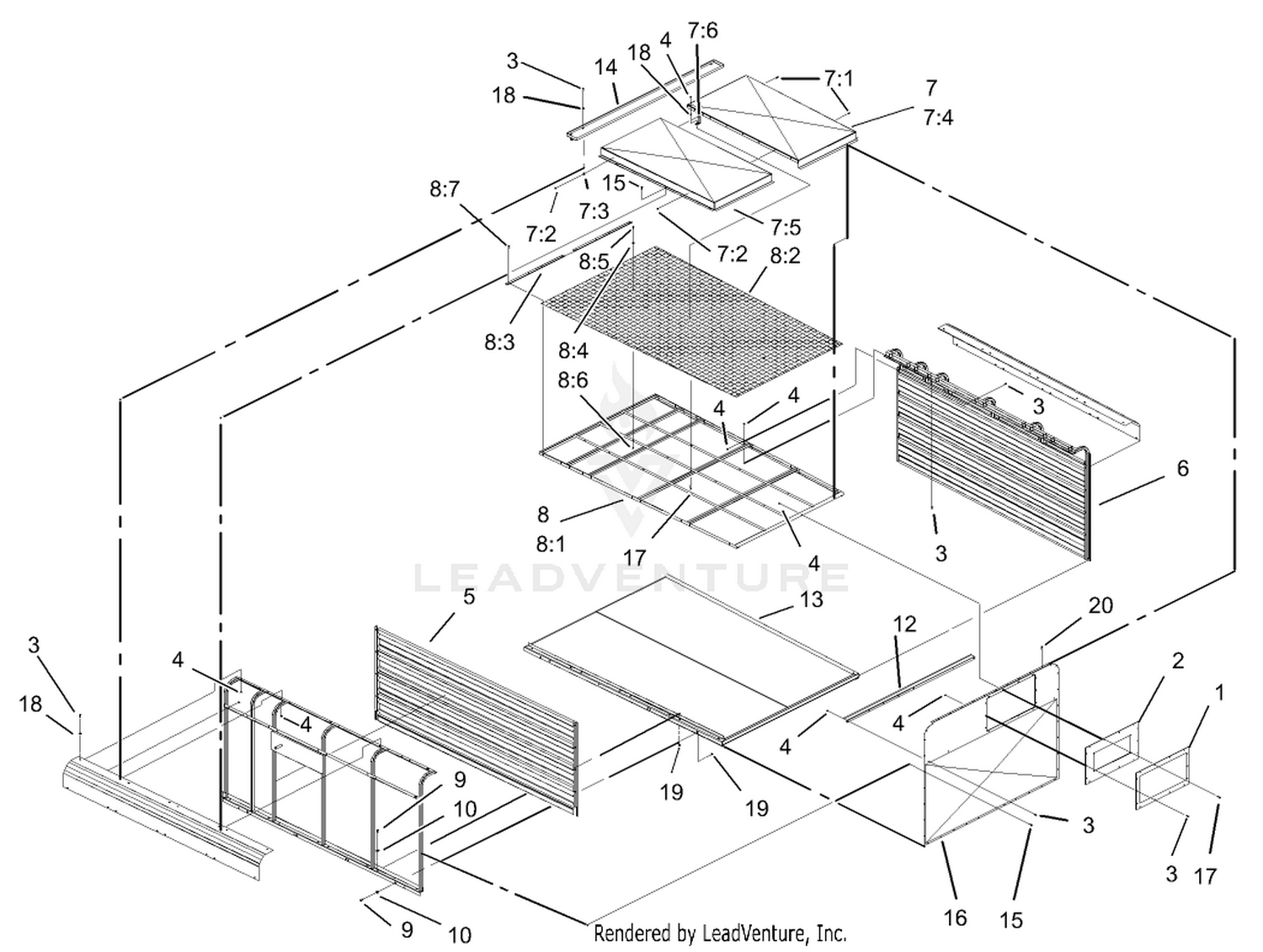

Sidewall Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | SVA10600-01 | PLATE Price: $54.87 |
| 2 | SVA10400 | GASKET-DUST Price: $108.37 |
| 3 | 321-4 | SCREW-HH Price: $0.99 |
| 4 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 9 | 323-6 | SCREW-HH Price: $0.66 |
| 10 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 12 | SVA12000-01 | BRACE-FRONT Price: $48.65 |
| 13 | VT301-00-03 | FRAME-FLOOR Price: $2,700.96 |
| 14 | SVA11900-01 | HINGE MOUNT ASM Price: $147.67 |
| 15 | 105-0618 | SCREW-SELFDR Price: $0.27 |
| 16 | VT301-00-03 | FRAME-FLOOR Price: $2,700.96 |
| 17 | 321-10 | SCREW-HH Price: $1.29 |
| 18 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 19 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
