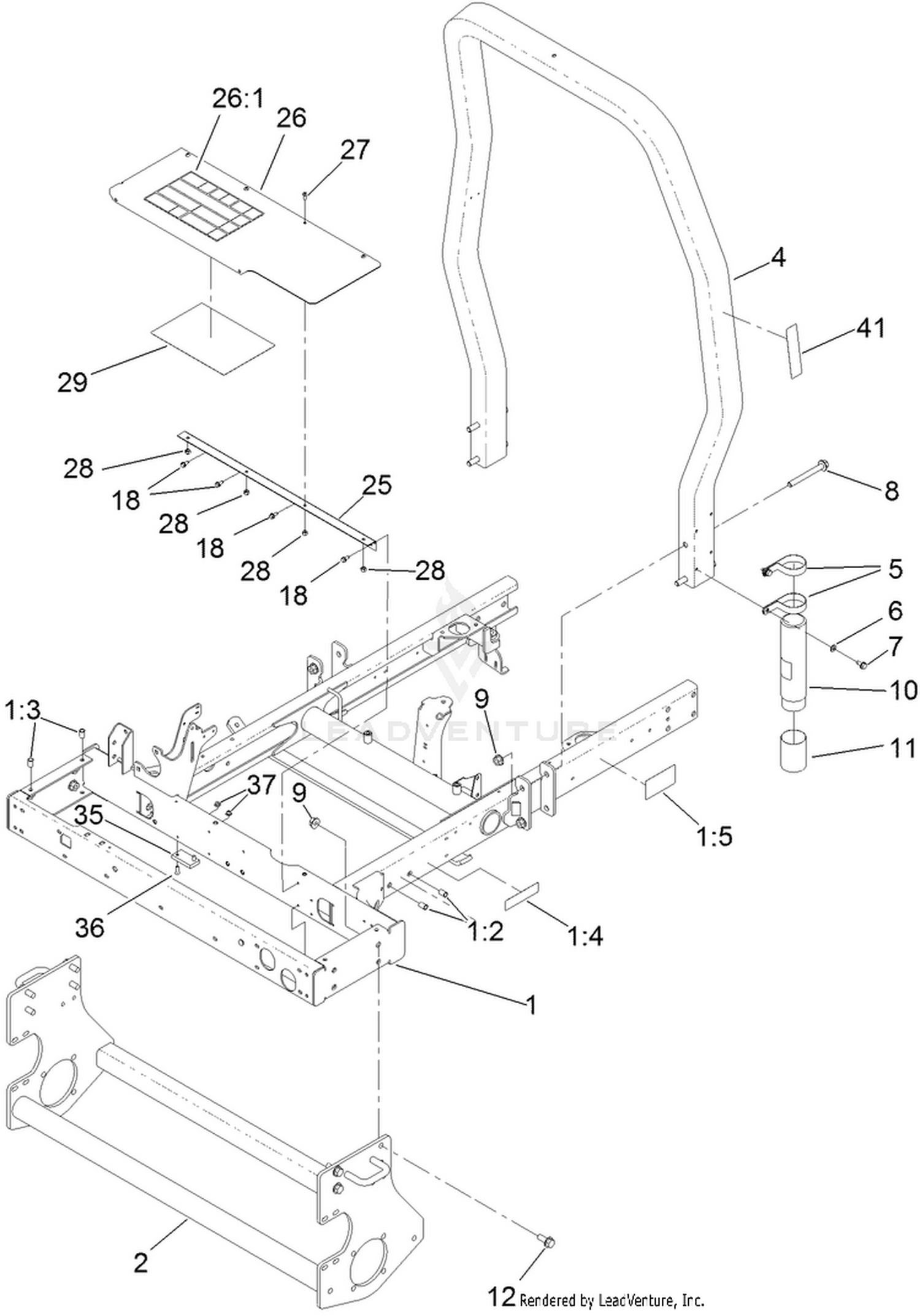

Frame and Platform Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-3639 | FRAME Price: $1,529.33 |
| 2 | 95-8568-03 | FRAME-LOWER Price: $957.21 |
| 4 | 127-8493 | ROPS ASM Price: $740.37 |
| 5 | 2412-133 | CLAMP-R Price: $3.19 |
| 6 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 7 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 8 | 117-3176 | SCREW-HHF Price: $3.73 |
| 9 | 32128-49 | NUT-HHF Price: $1.04 |
| 10 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 11 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 12 | 3234-38 | SCREW-HHF Price: $3.33 |
| 18 | 32144-10 | SCREW-HWH Price: $4.29 |
| 25 | 119-2034 | HINGE-TOOLBOX Price: $55.07 |
| 26 | 119-2029 | TOOLBOX COVER ASM Price: $81.78 |
| 27 | 119-6906 | SCREW-HSBH Price: $0.27 |
| 28 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 29 | 136-3716 | DECAL-SERVICE This part replaces 138-6979. Price: $35.16 |
| 35 | 95-8684 | PAD-BUMPER Price: $27.13 |
| 36 | 3289-4 | SCREW-FH Price: $3.27 |
| 37 | 104-7201 | NUT-HF Price: $0.69 |
