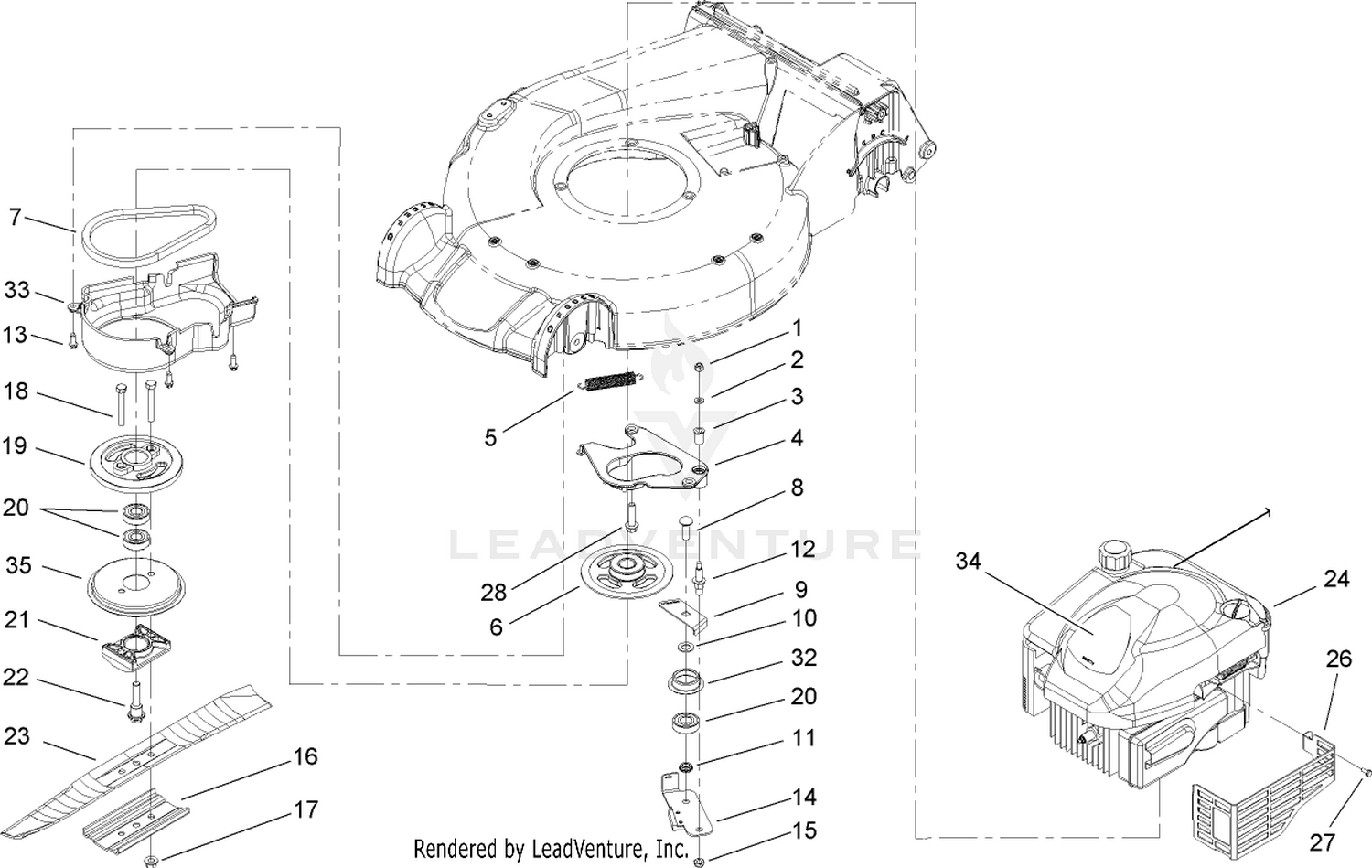

| Ref | Part Number | Description |
|---|
| 1 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 2 |
3256-16 |
WASHER-FLAT Price: $0.39 |
| 3 |
107-0797 |
BUSHING Price: $3.48 |
| 4 |
107-0761 |
PLATE-ANCHOR Price: $20.50 |
| 5 |
108-3792 |
SPRING-TENSION, BRAKE Price: $7.49 |
| 6 |
110-7456 |
PULLEY Price: $38.17 |
| 7 |
110-1790 |
BELT Price: $26.26 |
| 8 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 9 |
138-3222 |
PLATE-GUIDE This part replaces 107-7471. Price: $2.28 |
| 10 |
605256 |
SPACER Price: $1.31 |
| 11 |
107-0758 |
SPACER-BEARING Price: $2.09 |
| 12 |
107-0759 |
BOLT-SHOULDER Price: $6.54 |
| 13 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 14 |
125-1063 |
PLATE-BRAKE This part replaces 107-7477. Price: $15.98 |
| 15 |
603773 |
LOCKNUT Price: $2.09 |
| 16 |
108-3766-03 |
SUPPORT-BLADE Price: $7.65 |
| 17 |
54-9190 |
NUT-LOCK Price: Call Us |
| 18 |
3211-42 |
SCREW-HH Price: $3.47 |
| 19 |
126-8108 |
DRUM This part replaces 107-0754. Price: $36.33 |
| 20 |
38-7820 |
BEARING-BALL This part replaces 108-3765. Price: $13.99 |
| 21 |
107-7487 |
SUPPORT-BLADE Price: $14.79 |
| 22 |
107-7486 |
BOLT-CRANK Price: $12.70 |
| 23 |
133-8183-03 |
BLADE-RECYCLING, 21IN This part replaces 108-3762-03. Price: $19.68 |
| 26 |
104-7577-03 |
SHIELD-MUFFLER Price: $16.78 |
| 27 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 28 |
32144-102 |
SCREW-HWH Price: $3.19 |
| 32 |
138-3217 |
RETAINER-BELT This part replaces 108-3790. Price: $2.04 |
| 33 |
107-7488 |
COVER Price: $14.03 |
| 34 |
114-2612 |
DISCONTINUED Price: Call Us |
