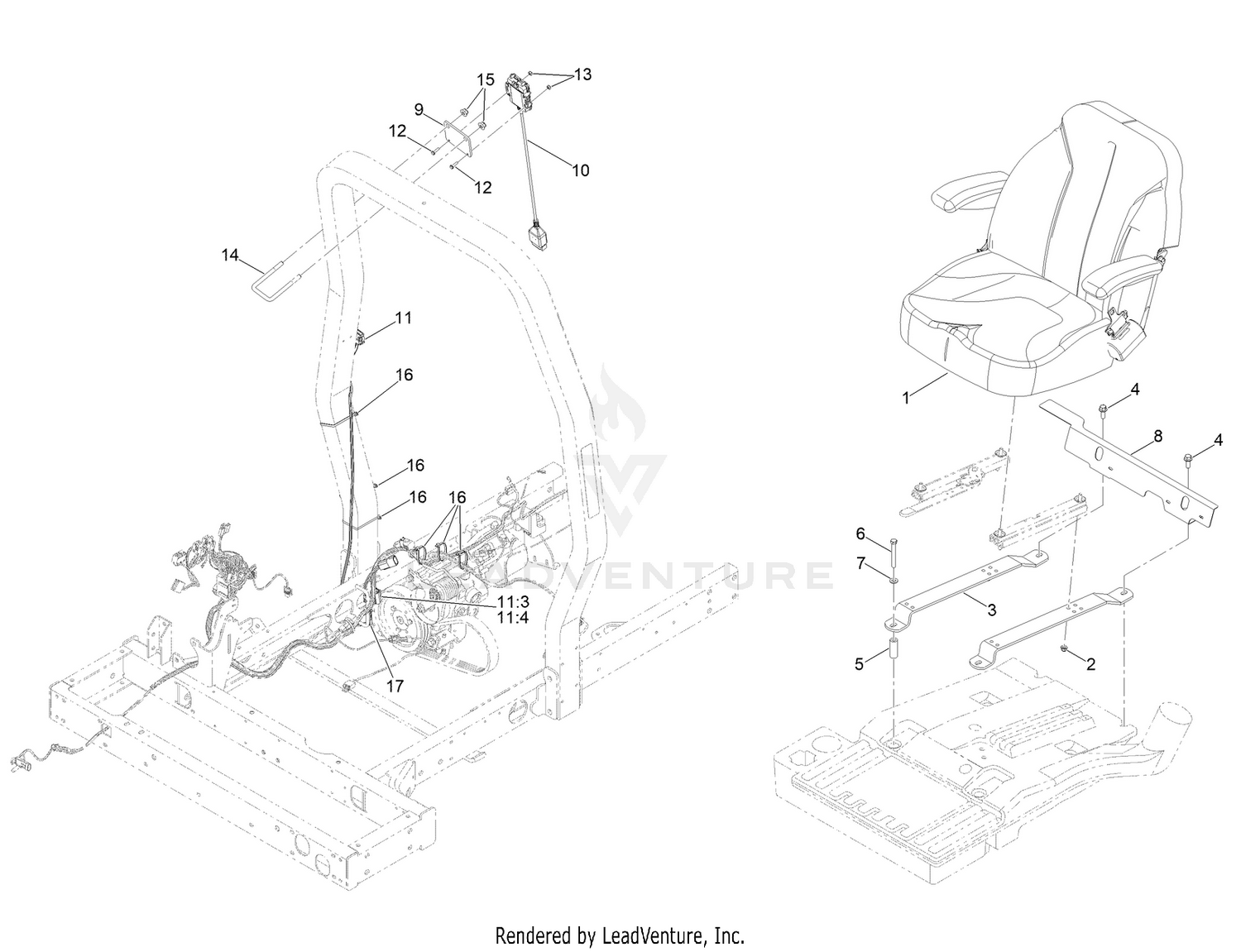

Seat Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-2679 | SEAT AND TRACK ASM Price: $779.82 |
| 2 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 3 | 121-3655-03 | STRAP-SUPPORT, SEAT Price: $40.05 |
| 4 | 3234-11 | SCREW-HHF Price: $1.23 |
| 5 | 104-0466 | SPACER-TUBE Price: $27.25 |
| 6 | 323-14 | SCREW-HH Price: $1.34 |
| 7 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 8 | 104-4833-03 | SHIELD-HEAT Price: $72.12 |
| 9 | 161-8395-03 | BRACKET-LMU Price: $3.29 |
| 10 | 122-3876 | GATEWAY-TELEMATICS LITE Price: $439.99 |
| 11 | 122-2161 | HARNESS-WIRE Price: $126.49 |
| 12 | 3290-126 | SCREW-HWH Price: $1.79 |
| 13 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 14 | 138-8991 | U-BOLT-SQ Price: $10.31 |
| 15 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 16 | 3290-379 | TIE-CABLE Price: $0.31 |
