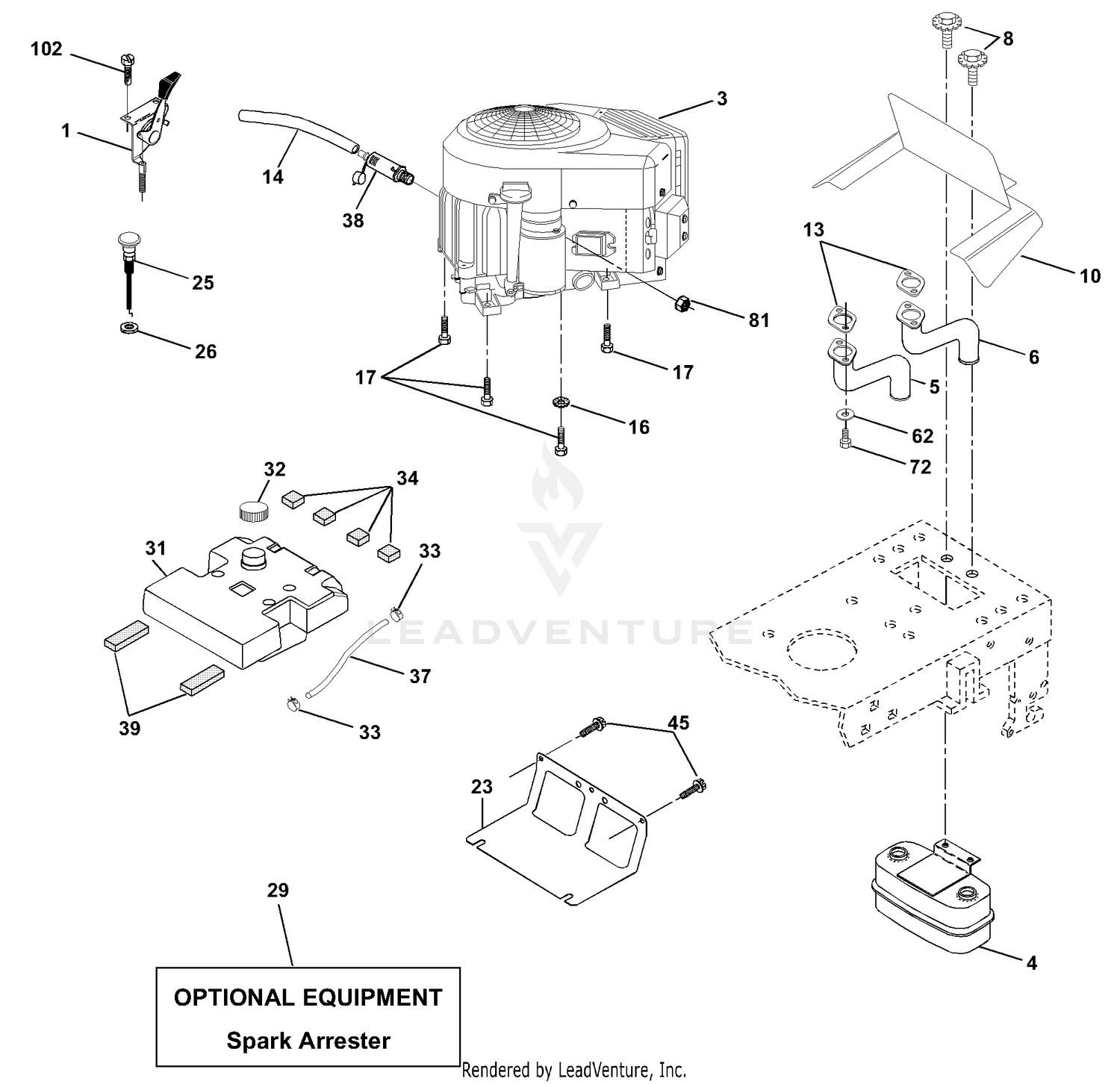

| Ref | Part Number | Description |
|---|
| 1 |
164067 |
Control Throttle Price: Call Us |
| 1 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 2 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 2 |
17720410 |
Screw Hex Thd Cut 1/4-20x5/8 T Price: Call Us |
| 3 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 105-4500-03. Price: $3,119.29 |
| 4 |
149723 |
Muffler Asm Twin Lo-Tone Price: Call Us |
| 5 |
159955 |
Pipe Exhaust LH Intek Price: Call Us |
| 5 |
92-7483 |
NUT-LUG Price: $2.04 |
| 6 |
160589 |
Pipe Exhaust RH Intek Price: Call Us |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
94-3050 |
PLATE-SPRING Price: $7.88 |
| 8 |
171877 |
Bolt 5/16-18 UNC x 3/4 w/Sems Price: Call Us |
| 8 |
94-3088 |
SPRING-COMPRESSION Price: $8.24 |
| 9 |
3218-4 |
NUT-JAM Price: $0.49 |
| 10 |
100-3070 |
LH BRAKE ASM Price: $802.37 |
| 10 |
162797 |
Shield Browning Intek II Price: Call Us |
| 11 |
33106-090 |
SCREW-HHF Price: $2.78 |
| 12 |
353-988 |
PLUG-HEX Price: $10.61 |
| 13 |
105-1218 |
PISTON MOTOR ASM Price: $2,247.58 |
| 13 |
165391 |
Muffler Gasket Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 14 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 15 |
33116-120 |
SCREW-HH Price: $1.70 |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 16 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 17 |
17490624 |
Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us |
| 17 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 18 |
237-166 |
O-RING Price: $10.46 |
| 19 |
100-3069 |
RH BRAKE ASM Price: $802.37 |
| 20 |
340-109 |
FITTING-TEE Price: $59.90 |
| 21 |
104-3797 |
FITTING-STRAIGHT Price: $26.85 |
| 23 |
169837 |
Shield Heat Price: Call Us |
| 25 |
164068 |
Choke Control Price: Call Us |
| 26 |
73920600 |
Nut, Keps 3/8-24 UNF Price: Call Us |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 31 |
157103 |
Tank Fuel 3 50 Rear Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 |
123487X |
Clamp Hose Black Price: Call Us |
| 34 |
106082X |
Pad, Spacer Price: Call Us |
| 37 |
8543R |
Line Fuel Price: Call Us |
| 38 |
148315 |
Plug Drain Oil Easy Price: Call Us |
| 39 |
109227X |
Pad, Idler Price: Call Us |
| 45 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 62 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 72 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 81 |
73510400 |
Nut Keps Hex 1/4-20 UNC Price: Call Us |
