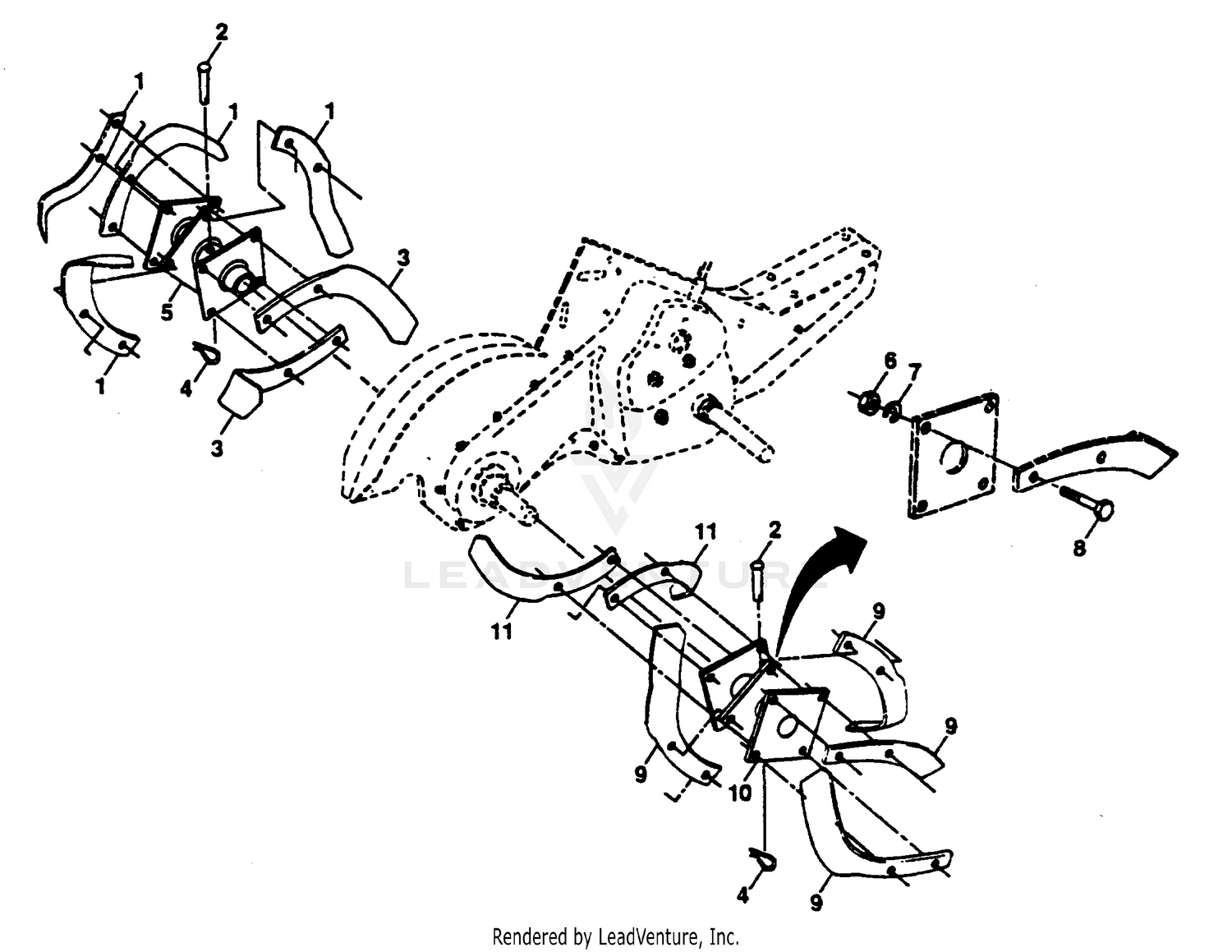

| Ref | Part Number | Description |
|---|
| 1 |
125-9745-03 |
MOUNT-REAR Price: $52.23 |
| 1 |
532006554 |
TINE.LH.12" This part replaces 532004459. Price: $11.99 |
| 2 |
328-5 |
SCREW-HH Price: $3.60 |
| 2 |
532132673 |
Clevis Pin (AYP part number) Price: $1.99 |
| 3 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 3 |
532006554 |
Tine, Inner, L.H. (AYP part number) Price: $11.99 |
| 4 |
104-7201 |
NUT-HF Price: $0.69 |
| 4 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 5 |
130-5882-03 |
COVER-ACCESS, HOSE Price: $66.52 |
| 5 |
532132727 |
Assembly, Hub and Plate, L.H. (AYP part number) Price: $64.99 |
| 6 |
110-9380 |
SCREW-HWH Price: $1.89 |
| 6 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 7 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 7 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 8 |
115-5519 |
WASHER-PLAIN Price: $7.28 |
| 8 |
874610616 |
Bolt, Hex 3/8-24 x 1 (AYP part number) Price: $3.99 |
| 9 |
110-5954 |
MOUNT-CENTER, BONDED Price: $65.28 |
| 9 |
532006555 |
TINE.RH.12"(72R) This part replaces 532004460. Price: $14.99 |
| 10 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 10 |
581813701 |
HUB.ASM.RH.17.TILLER.BLACK This part replaces 532132728. Price: $54.99 |
| 11 |
112-7264 |
SCREW-HH Price: $3.11 |
| 12 |
130-0586 |
SEAL-FOAM, FRAME ROOF Price: $11.11 |
| 13 |
125-9587 |
SEAL-FOAM, REAR Price: $12.61 |
| 14 |
130-5468 |
SEAL-FOAM, RH REAR Price: $8.26 |
| 15 |
130-5467 |
SEAL-FOAM, LH REAR Price: $8.26 |
| 16 |
130-5466 |
SEAL-FOAM, RH MID Price: $12.86 |
| 17 |
130-5465 |
SEAL-FOAM, LH MID Price: $10.13 |
| 18 |
130-5464 |
SEAL-FOAM, RH TANK Price: $43.85 |
| 19 |
130-5463 |
SEAL-FOAM, LH TANK Price: $43.85 |
| 20 |
125-9585 |
SEAL-FOAM, FRONT Price: $12.86 |
| 21 |
130-5884 |
SEAL-FOAM, LH SIDE Price: $4.30 |
| 22 |
130-5883 |
SEAL-FOAM Price: $6.29 |
| 23 |
85-0290 |
SPACER-PIVOT, SEAT Price: $7.26 |
| 24 |
107-3908 |
GUIDE-ROPE, UPPER Price: $2.72 |
| 25 |
130-5855 |
SEAL-TUBE, REAR Price: $2.81 |
| 26 |
130-5885 |
SEAL-FOAM, RH SIDE Price: $4.53 |
