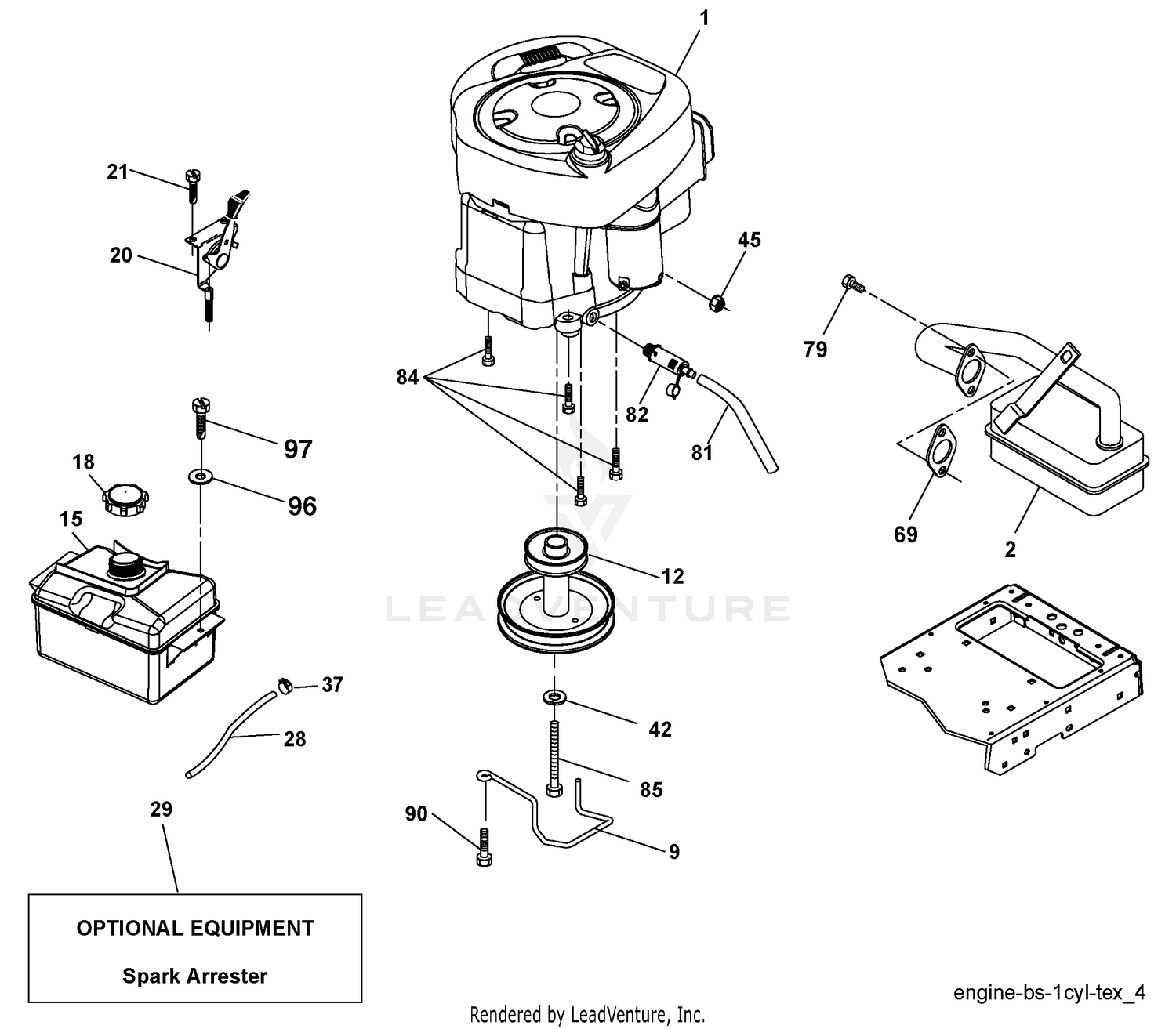

Engine

Engine

Parts (47)

RefPart NumberDescription
1 3272-12 PIN-COTTER Price: $0.25
2 137352 Muffler Price: Call Us
2 323-7 SCREW-HH Price: $0.65
3 32128-21 NUT-HF Price: $0.39
4 69-2640 CYLINDER-MASTER Price: $367.32
5 353-994 FITTING-BRAKE Price: $13.81
6 74-2530 FRONT BRAKE TUBE ASM Price: $70.21
7 74-2510 LH BRAKE TUBE ASM Price: $86.75
8 218-242 SWITCH-LIGHT, STOP Price: $60.78
9 194319 Keeper Belt Engine Price: Call Us
9 218-243 TEE Price: $60.49
10 74-2520 RH BRAKE TUBE ASM Price: $59.09
11 322-4 SCREW-HH Price: $0.35
12 405140 Pulley Engine Price: Call Us
12 69-9340 SHAFT-CYLINDER, MASTER Price: $98.11
13 3272-10 PIN-COTTER Price: $0.25
14 3220-2 NUT-JAM Price: $0.50
15 282-2 YOKE Price: $30.04
15 407545 Tank Fuel 1.50 Price: Call Us
16 32149-2 NUT-KEPS Price: $2.39
17 3234-13 SCREW-HHF Price: $0.77
18 197725 Cap Asm Price: Call Us
18 32127-11 NUT-LOCK Price: $1.60
19 93-7039-01 BRACKET-BRAKE Price: $22.56
20 176636X421 Control Throttle/Choke Price: Call Us
20 93-7037 SWITCH Price: $265.78
21 32144-1 SCREW-TAPTITE Price: $3.19
21 416358 Screw #10 x 0.750 Price: Call Us
22 21-1830 SPRING-EXTENSION Price: $34.62
23 283-1 PIN-CLEVIS Price: $1.63
24 69-8750-03 BRAKE ASM Price: $121.25
25 32152-1 NUT-LOCK, CONE Price: $1.49
26 69-7700-03 PEDAL ASM Price: $51.40
27 93-7629 PAD-FOOT, BRAKE This part replaces 49-6170. Price: $25.13
28 401137 Fuel Line Price: Call Us
29 137180 Spark Arrester Kit Price: Call Us
37 123487X Clamp Hose Price: Call Us
42 10040700 Washer Lock 7/16 Price: Call Us
45 73510400 Nut Keps Hex 1/4-20 unc Price: Call Us
69 165291 Gasket Price: Call Us
79 192334 Screw Socket Hd 5/16-18 x .75 Price: Call Us
81 148456 Tube Drain Oil Easy Price: Call Us
82 181654 Plug Drain Oil Price: Call Us
84 17060620 Screw 3/8-16 x 1-1/4 Price: Call Us
85 173937 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Price: Call Us
90 17000616 Screw 3/8-16 x 1.0 Price: Call Us
96 19091416 Washer 9/32 x 7/8 x 16 Ga. Price: Call Us
