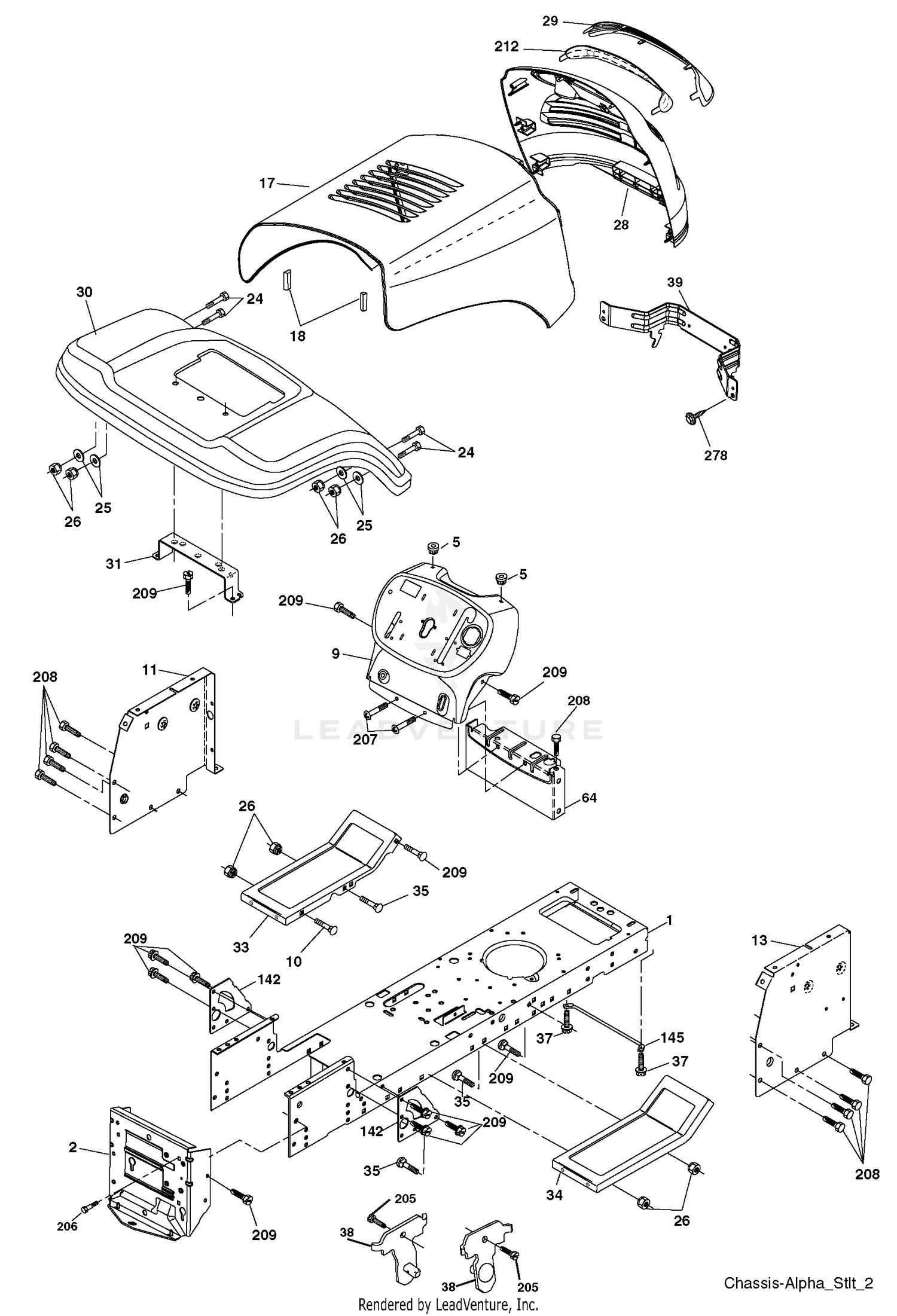

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 9 |
193510X010 |
Dash Price: Call Us |
| 10 |
105-3735 |
CONTROL PLATE ASM Price: $167.82 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
187559X550 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 20 |
98-9662 |
LEVER-CONTROL, SPEED Price: $72.44 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 29 |
187567X599 |
Lens Grille Basic Bar Price: Call Us |
| 30 |
192394X550 |
Fender Price: Call Us |
| 30 |
98-9572 |
LEVER-CONTROL, SPEED Price: $47.15 |
| 31 |
139976 |
Bracket Fender Repl 109873X Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 40 |
105-3788 |
O-RING Price: $2.90 |
| 50 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 60 |
72140606 |
Bolt Carr 3/8-16 x 3/4 Price: Call Us |
| 60 |
98-9594 |
WASHER-PLAIN Price: $2.49 |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 70 |
98-9589 |
NUT Price: $1.46 |
| 74 |
73680600 |
Nut 3/8-16 Center Lock Price: Call Us |
| 80 |
98-9658 |
GOVERNOR LEVER ASM Price: $34.84 |
| 90 |
98-9663 |
LEVER-STOP, ENGINE Price: $13.34 |
| 100 |
98-7601 |
SEAL-OIL Price: $7.88 |
| 110 |
98-9472 |
SPRING-RETURN Price: $8.91 |
| 120 |
98-9664 |
SHAFT-LEVER, STOP Price: $33.92 |
| 130 |
98-9637 |
GASKET Price: $3.98 |
| 140 |
98-7692 |
BOLT Price: $0.92 |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 150 |
99-8348 |
BOLT Price: $0.24 |
| 160 |
98-7654 |
GASKET Price: $8.84 |
| 170 |
105-3710 |
STUD Price: $1.16 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
187569 |
Insert Lens Refl ect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 278 |
5479J |
Plug Button Blk 359 Dia Choke Price: Call Us |
