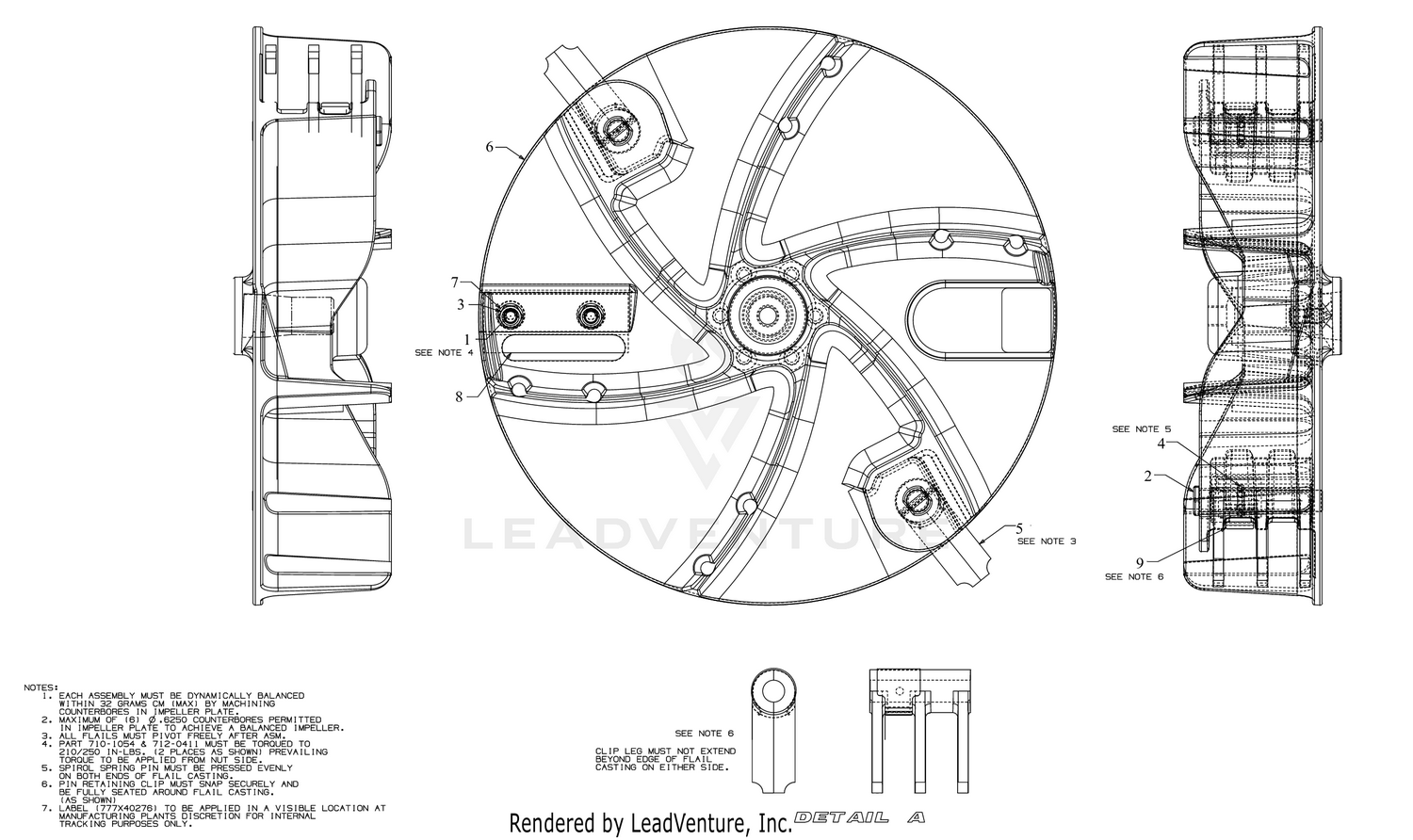

Impeller
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-1054 | SCREW 5/16-24 x 1 Price: $3.71 |
| 2 | 711-1401 | CLEVIS PIN DIA .49 Price: $8.54 |
| 3 | 712-0411 | Hex Top Lock Nut 5/16-24 This part replaces 912-0411. Price: $3.71 |
| 4 | 715-0166 | PIN SPIROL .156X1 Price: $5.94 |
| 5 | 719-0329 | FLAIL BLADE Price: $27.90 |
| 6 | 981-0152 | IMPELLER ASSEMBLY Price: $469.77 |
| 7 | 936-0119 | LOCK WASHER 5/16 Price: $4.29 |
| 8 | 981-0490 | CHIPPER BLADE Price: $26.69 |
| 9 | 781-0735 | RETAINING PIN CLIP Price: $3.71 |
