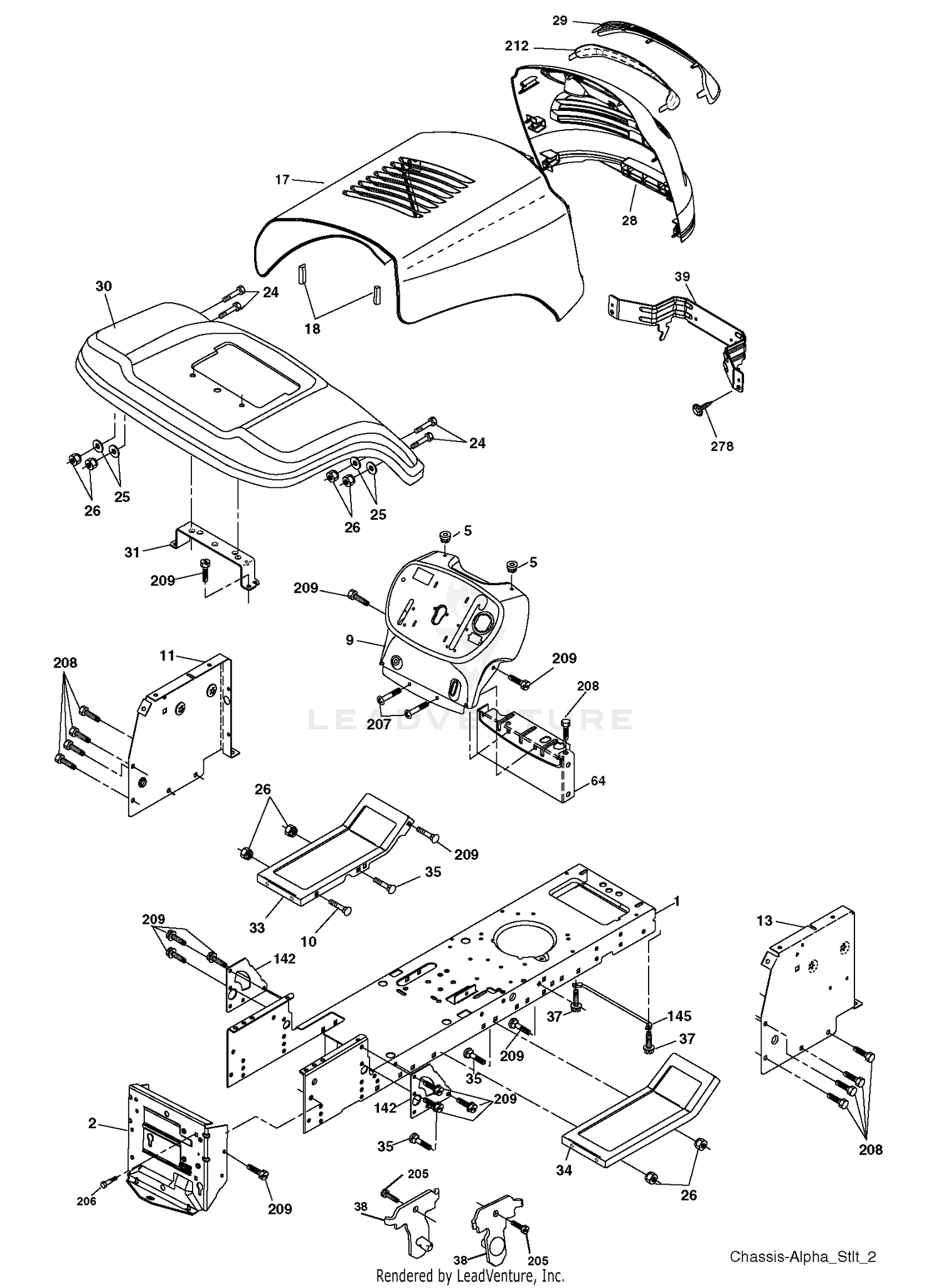

| Ref | Part Number | Description |
|---|
| 1 |
100-8122 |
RH LIFT ARM ASM Price: $883.71 |
| 1 |
100-8123 |
LH LIFT ARM ASM Price: $1,030.28 |
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
27-0410 |
SCREW-SHOULDER Price: $2.59 |
| 3 |
131-4305 |
PIN This part replaces 100-5674. Price: $24.18 |
| 4 |
139-0956 |
HYD CYLINDER ASM This part replaces 99-5496. Price: $1,027.18 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 6 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
138-5253 |
PIVOT HUB ASM This part replaces 100-8115. Price: $73.95 |
| 8 |
100-5582 |
SHAFT-PIVOT, LIFT ARM Price: $107.45 |
| 9 |
106-2008 |
WASHER-THRUST Price: $5.16 |
| 9 |
193510X010 |
Dash Price: Call Us |
| 10 |
325-5 |
SCREW-HH Price: $1.20 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 11 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 12 |
104-3537 |
PIN-CYLINDER Price: $66.99 |
| 13 |
172105X010 |
Panel Dash Rh Price: Call Us |
| 13 |
3269-11 |
RIVET-POP Price: $0.68 |
| 14 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 15 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 16 |
3296-45 |
NUT-HEX Price: $3.79 |
| 17 |
187559X505 |
Hood Price: Call Us |
| 17 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 18 |
104-3556-03 |
LATCH-RH Price: $58.58 |
| 18 |
104-3557-03 |
LATCH-LH Price: $58.58 |
| 18 |
184721 |
Bumper Hood Price: Call Us |
| 19 |
104-3577 |
WASHER Price: $0.76 |
| 20 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 21 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 22 |
104-8330-03 |
BRACKET-CAM Price: $98.33 |
| 23 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 24 |
104-3595 |
SPACER-SWITCH Price: $19.14 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr. 5 Price: Call Us |
| 25 |
104-0758 |
SENSOR-FERROUS Price: $220.08 |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
105-0792 |
PLATE-SENSING Price: $13.08 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 27 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 28 |
187598 |
Grille Price: Call Us |
| 28 |
3256-60 |
WASHER-FLAT Price: $1.49 |
| 29 |
187567X599 |
Lens Price: Call Us |
| 29 |
3274-65 |
SCREW-HSBH Price: $1.15 |
| 30 |
192526X505 |
Fender Price: Call Us |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
136619 |
Bracket Support Fender Price: Call Us |
| 31 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 32 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 33 |
179716X505 |
Footrest Pnt Lh Price: Call Us |
| 33 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 34 |
179717X505 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdr. 3/8-16 x 3/4 Price: Call Us |
| 212 |
187569 |
Insert Lens Reflect Price: Call Us |
| 278 |
187801 |
Plug Dome Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
