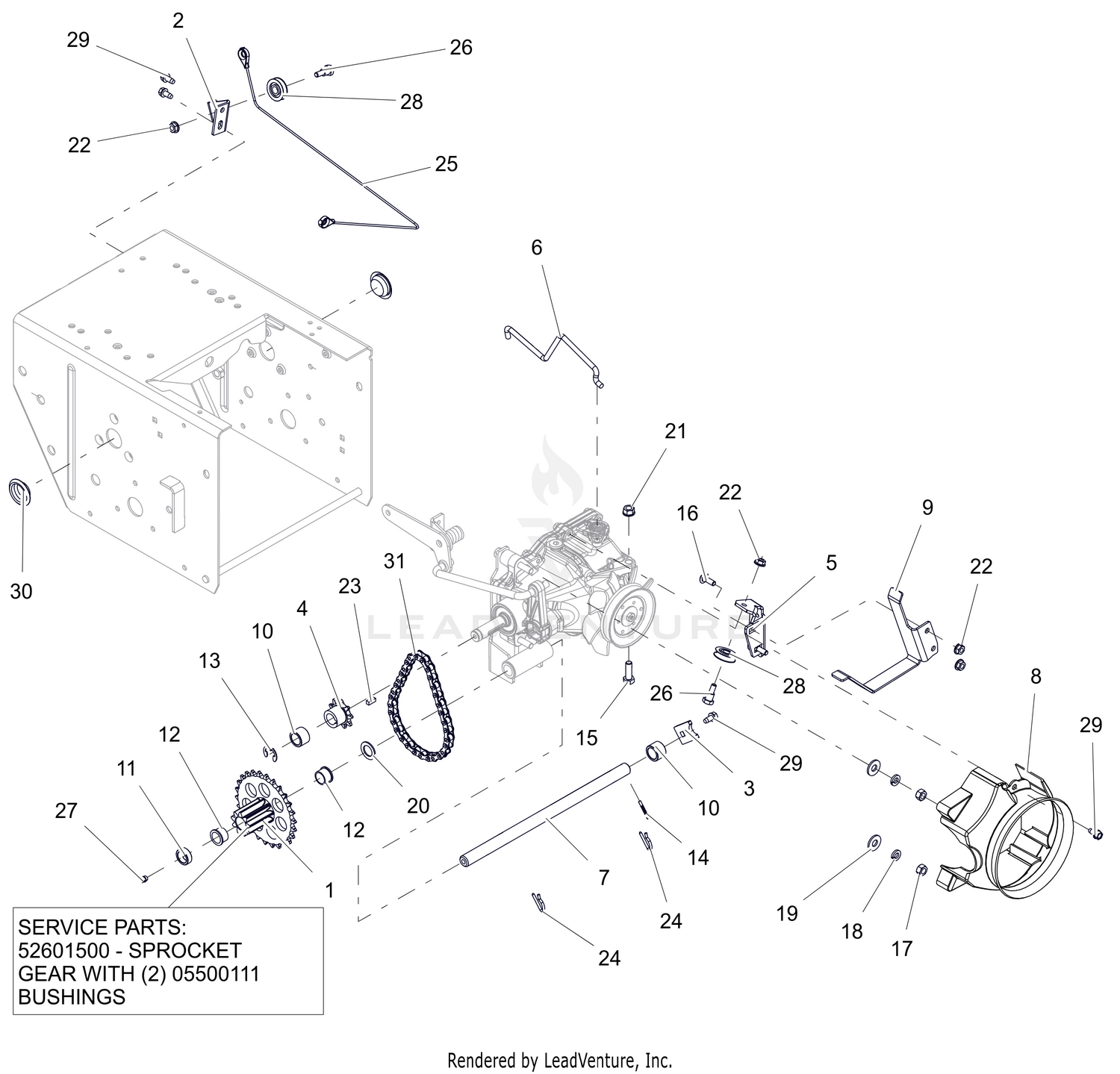

| Ref | Part Number | Description |
|---|
| 1 |
30312500 |
PINION, SPROCKET This part replaces 00190600. Price: $22.45 |
| 2 |
00373000 |
BRKT, CABLE PULLEY This part replaces 00373051. Price: $4.45 |
| 3 |
00503500 |
TAB, ANTI ROTATION Price: $4.45 |
| 4 |
09478200 |
SPROCKET- PINION 9T W/KEY This part replaces 04375800. Price: $5.45 |
| 5 |
04434351 |
BRACKET, CLUTCH CABLE Price: $17.45 |
| 6 |
09165100 |
ROD, HYDRO BYPASS Price: $15.45 |
| 7 |
04511800 |
SHAFT, PINION - HARDENED Price: $37.95 |
| 8 |
04513900 |
SHROUD, HYDROGEAR RT-310 Price: $20.95 |
| 9 |
04519951 |
FINGER, BELT - FLAT Price: $23.45 |
| 10 |
05500029 |
SPACER, .635X.880X.611 Price: $2.45 |
| 11 |
05500035 |
BSHG-SLV, .635X.880X.305 Price: $3.45 |
| 12 |
05500111 |
BSHG-FLG .625X.750X.500X.875 Price: $1.95 |
| 13 |
05708300 |
RG-RTNG-EXT .625X.042 Price: $0.45 |
| 15 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC Price: $1.45 |
| 16 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC Price: $0.95 |
| 17 |
06500938 |
NUT, HEX .312-18 ZCC Price: $0.95 |
| 18 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC Price: $0.45 |
| 19 |
06401023 |
WSHR,FLT .375X.875X.083 ZCC Price: $1.45 |
| 20 |
06401117 |
WSHR, FLT .630X1.005X.062 ZCC Price: $0.45 |
| 21 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 22 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC Price: $0.95 |
| 23 |
06606000 |
KEY-SQ .187 X .50 X .187 Price: $9.45 |
| 24 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 25 |
06900527 |
CABLE, TRACTION, HYDRO PRO Price: $19.95 |
| 26 |
07001737 |
BOLT, SHLDR -.375 X .375 X .25-20 Price: $3.45 |
| 27 |
07061300 |
ZERK,FITTING .25X.125 DRIVE IN Price: $3.95 |
| 28 |
07300012 |
PULLEY, CABLE Price: $4.45 |
| 29 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 30 |
07500231 |
PLUG, HOLE - 1.125" Price: $1.95 |
