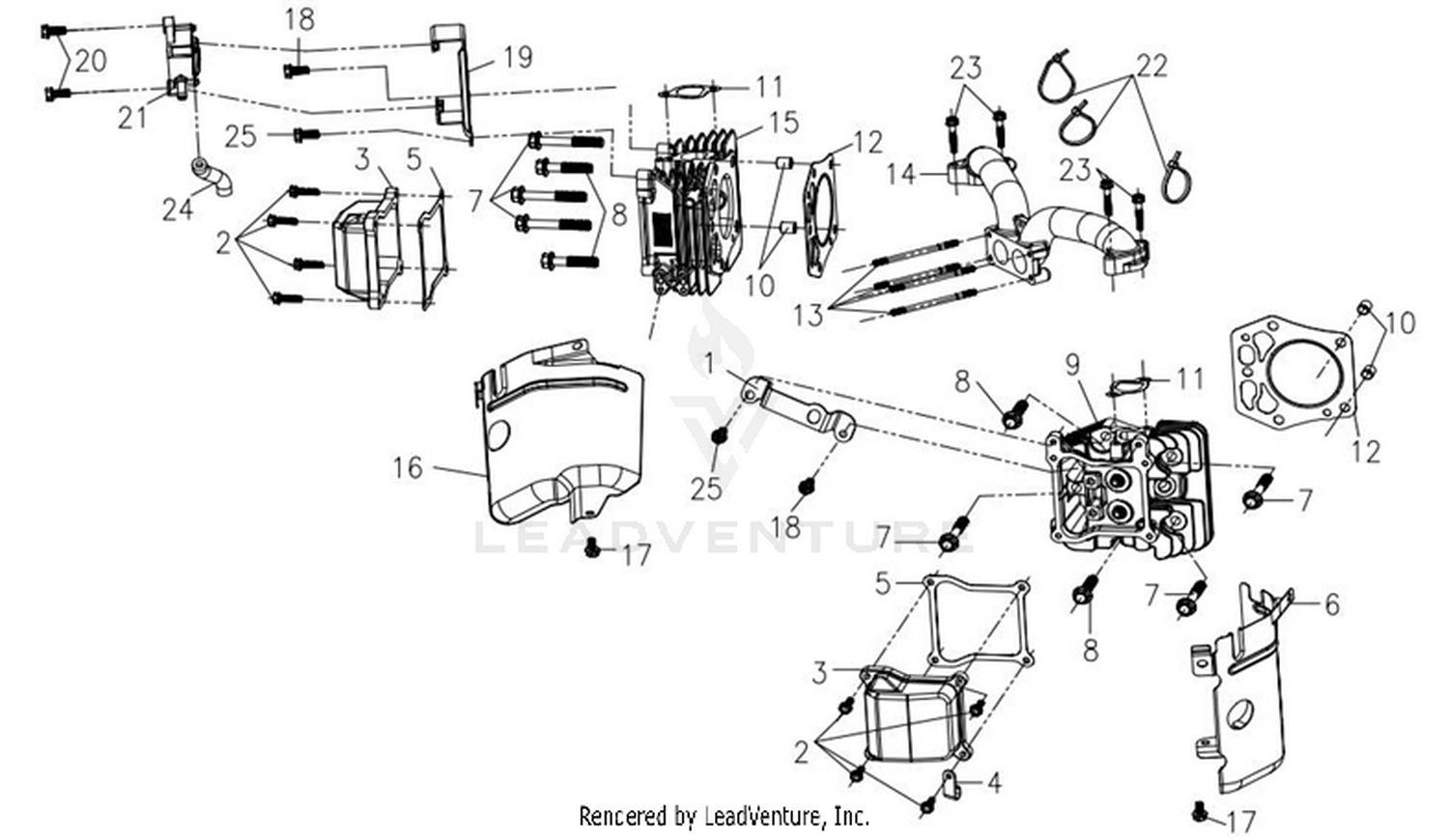

| Ref | Part Number | Description |
|---|
| 1 |
21570600 |
BRACKET Price: $7.45 |
| 1 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 1 |
93-6797 |
HOSE ASM Price: $96.33 |
| 2 |
21110541 |
HEXAGON BOLT WITH FLANGE Price: $4.45 |
| 2 |
340-86 |
FITTING-TEE Price: $35.23 |
| 2 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 3 |
21110472 |
CYLINDER HEAD COVER ASSY Price: $10.45 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $17.99 |
| 4 |
21110570 |
CABLE CLEAT Price: $4.45 |
| 4 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 4 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 5 |
21110596 |
GASKET, CYL HEAD COVER Price: $7.45 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 6 |
21110503 |
AIR DEFLECTOR Price: $10.45 |
| 6 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
85-5160-03 |
LEVER-VALVE ASM This part replaces 85-5160. Price: $69.31 |
| 7 |
21110545 |
HEXAGON BOLT WITH FLANGE Price: $4.45 |
| 7 |
233-37 |
KNOB Price: $31.99 |
| 8 |
21110546 |
HEXAGON BOLT WITH FLANGE Price: $4.45 |
| 8 |
2710-16 |
LINK-CHAIN Price: $7.23 |
| 8 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 9 |
43-1950 |
HYD CONTROL VALVE ASM Price: $695.34 |
| 9 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 10 |
21110557 |
LOCATION PIN Price: $4.45 |
| 10 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 11 |
21110508 |
CARBURETOR GASKET Price: $4.45 |
| 11 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 11 |
93-6798 |
HOSE ASM Price: $62.58 |
| 12 |
21110471 |
GASKET FOR CYLINDER HEAD Price: $6.45 |
| 12 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 12 |
93-6922 |
HYD TUBE ASM Price: $39.45 |
| 13 |
21110549 |
STUD Price: $4.45 |
| 13 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 13 |
871110814 |
BOLT.HEX.BLACK This part replaces 874780814. Price: $8.99 |
| 14 |
21110527 |
INTAKE PIPE Price: $31.95 |
| 14 |
810040800 |
LOCKWASHER Price: $5.99 |
| 14 |
94-5007 |
DISCONTINUED Price: Call Us |
| 15 |
819171912 |
WASHER Price: $3.99 |
| 15 |
94-5006 |
HOSE ASM Price: $85.73 |
| 16 |
21110504 |
AIR DEFLECTOR Price: $10.45 |
| 16 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 16 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 17 |
21100147 |
BOLT, FLANGE Price: $0.45 |
| 17 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 18 |
21100134 |
BOLT, FLANGE Price: $1.95 |
| 18 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
93-6923 |
HYD TUBE ASM Price: $54.29 |
| 19 |
21570500 |
BRKT, GASOLINE PUMP Price: $14.95 |
| 19 |
532121248 |
BUSHING Price: $4.99 |
| 19 |
94-3608 |
BODY-VALVE, RELIEF Price: $105.44 |
| 20 |
21100134 |
BOLT, FLANGE Price: $1.95 |
| 20 |
532121250 |
SPRING Price: $3.99 |
| 20 |
94-3607 |
DISCONTINUED Price: Call Us |
| 21 |
21110511 |
FUEL PUMP Price: $22.95 |
| 21 |
237-78 |
O-RING Price: $3.85 |
| 22 |
21110597 |
STRAP Price: $0.95 |
| 22 |
237-21 |
O-RING Price: $0.70 |
| 23 |
21100170 |
BOLT, FLANGE Price: Call Us |
| 23 |
237-42 |
O-RING Price: $2.78 |
| 24 |
21110598 |
BREATHER TUBE Price: $8.95 |
| 24 |
237-22 |
O-RING Price: $2.43 |
| 25 |
340-88 |
FITTING-STRAIGHT Price: $11.24 |
| 26 |
94-5119 |
SPONGE Price: $3.75 |
| 27 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 28 |
65-9940 |
SPRING Price: $4.01 |
