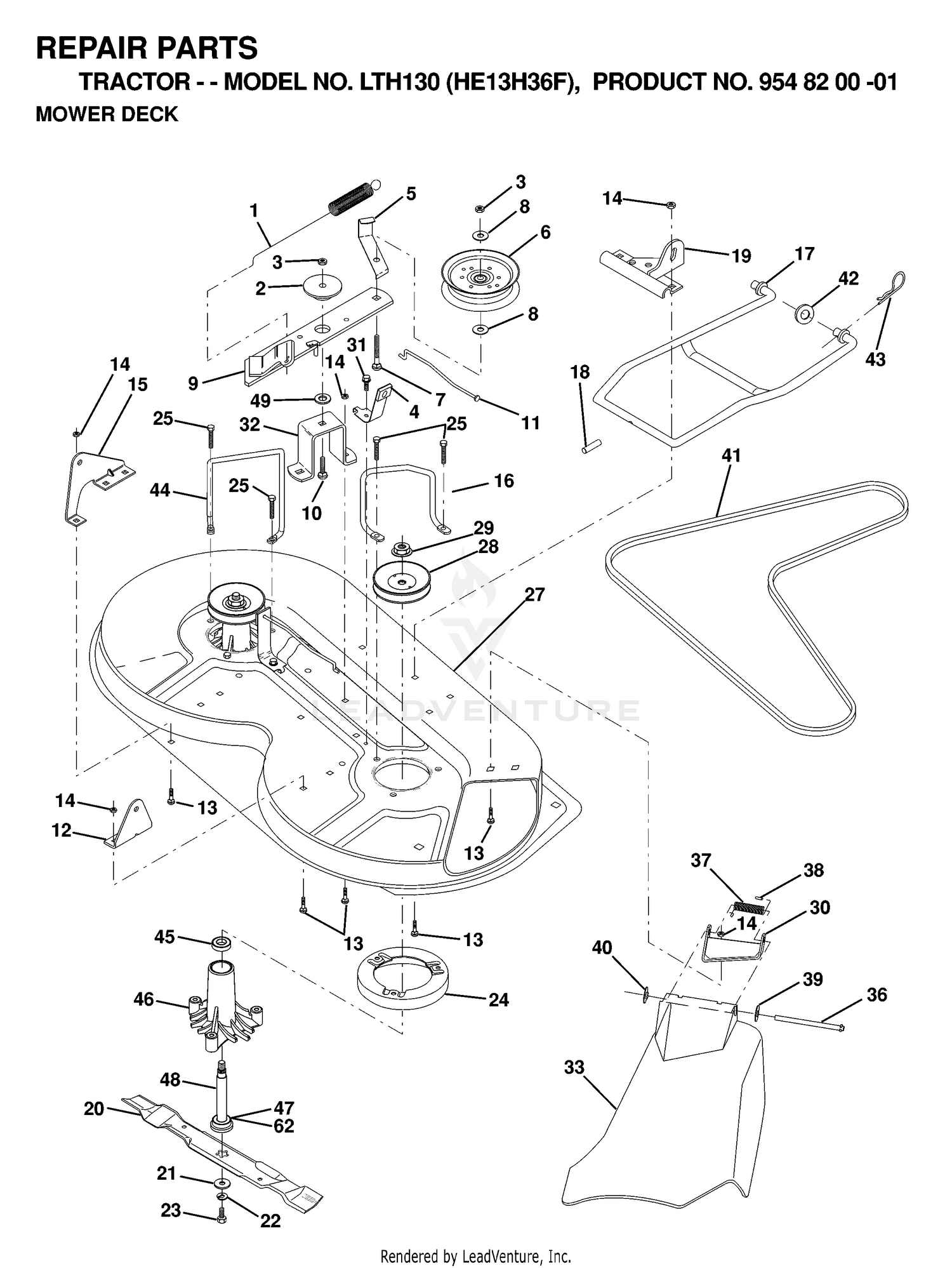

| Ref | Part Number | Description |
|---|
| 1 |
532140064 |
SPRING-MOWER CLUTCH Price: $14.99 |
| 2 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 3 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 4 |
531165101 |
SERVICE KIT BRAKE ASSEMBLY BRA This part replaces 532130840. Price: $6.99 |
| 5 |
532131251 |
IDLER BELT GUIDE Price: $3.99 |
| 6 |
532121316 |
PULLEY.IDLER.FLAT.MOWER.BLK.PT Price: $44.99 |
| 7 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 8 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
| 9 |
532140092 |
IDLER ARM ASSY This part replaces 532127744. Price: $8.78 |
| 10 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 11 |
532130841 |
BRAKE ROD Price: $24.99 |
| 12 |
532127356 |
BRKT LIFT REAR Price: $3.99 |
| 13 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 14 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 15 |
532127357 |
BRKT LIFT REAR LH Price: $4.99 |
| 16 |
532153298 |
BELT KEEPER Price: $11.99 |
| 17 |
532128508 |
MOWER LINK STABILIZER Price: $41.84 |
| 18 |
532128511 |
PIN GROOVE Price: $2.99 |
| 19 |
532127380 |
BRKT LINK STABILIIZER Price: $7.99 |
| 20 |
532138496 |
BLADE, HI-LIFT 36" PREMIUM Price: $22.99 |
| 21 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 22 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 23 |
532850857 |
BLADE BOLT Price: $3.99 |
| 24 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 25 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 27 |
532174082 |
DECK SVCX1 KIT MOWER.36.LR This part replaces 532156600. Price: $119.99 |
| 28 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 29 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 30 |
532136631 |
BRACKET ASM DEFLECTOR Price: $9.99 |
| 31 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 32 |
532122051 |
SUPT,IDLER ARM Price: $4.99 |
| 33 |
532175029 |
SHIELD.DEFL.MWR.36" This part replaces 532131560. Price: $24.99 |
| 36 |
593885101 |
Rods This part replaces 532121980. Price: $5.99 |
| 37 |
532123713 |
SPRING TORSION Price: $6.99 |
| 38 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 39 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 40 |
532110452 |
NUT PUSH M Price: $2.99 |
| 41 |
532131264 |
BELT This part replaces 531005026. Price: $34.99 |
| 43 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 44 |
532140608 |
KEEPER LH Price: $22.99 |
| 45 |
532110485 |
BEARING Price: $11.99 |
| 46 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 47 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 48 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 49 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 62 |
532153390 |
WASHER FELT Price: $3.99 |
