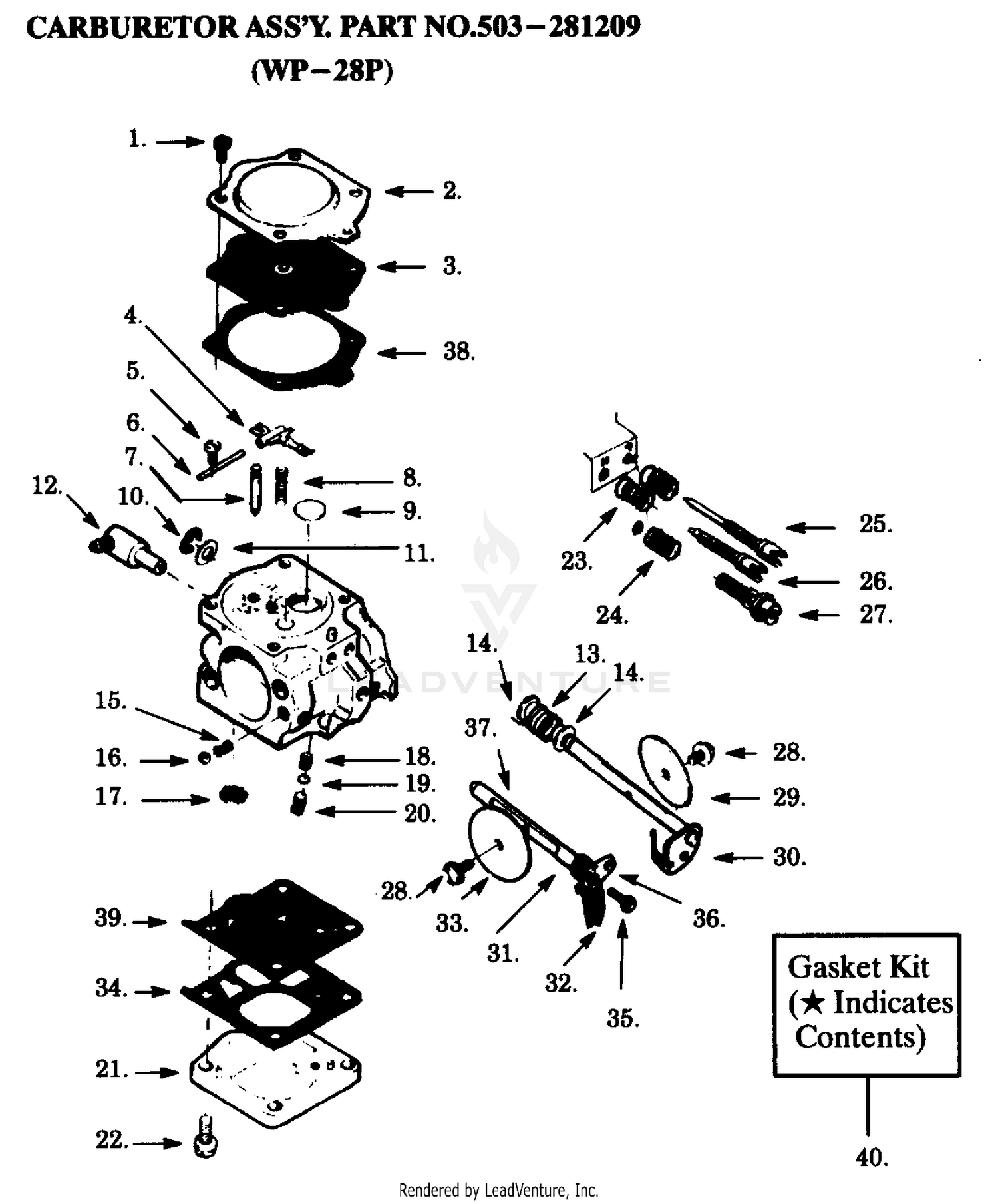

CARBURETOR WP-28P
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5118 | SHAFT-ADJUSTER Price: $44.64 |
| 1 | 503108701 | Screw Price: $0.99 |
| 2 | 120-5116 | WASHER-WAVE Price: $9.17 |
| 2 | 505316702 | Cover Price: $6.99 |
| 3 | 106-5344 | BUSHING-FLANGE, KEYED Price: $2.37 |
| 3 | 505316715 | Diaphragm Price: $3.99 |
| 4 | 108-0015 | WASHER-FLAT Price: $0.39 |
| 4 | 505316734 | Metering Lever Price: $1.99 |
| 5 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 5 | 505316717 | Screw Price: $1.99 |
| 6 | 137-6130 | SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 6 | 505316731 | Pin Price: $1.99 |
| 7 | 119-4155 | WASHER-HARDENED Price: $4.16 |
| 7 | 503117001 | Needle Price: $7.99 |
| 8 | 120-5120 | SPRING-COMPRESSION Price: $2.89 |
| 8 | 505316723 | Spring Price: $1.99 |
| 9 | 503483101 | Ring Price: $0.99 |
| 10 | 502119801 | Clip Price: $2.99 |
| 11 | 506028301 | Washer Price: $1.99 |
| 12 | 503483801 | Lever Price: $6.99 |
| 13 | 503483401 | Spring Return Price: Call Us |
| 14 | 502103101 | Bushing Price: $1.99 |
| 15 | 503117701 | Spring Price: $3.99 |
| 16 | 503117101 | Ball Price: $5.99 |
| 17 | 501666101 | Filter Price: $3.99 |
| 18 | 501468401 | Spring Price: $3.99 |
| 19 | 503404101 | Washer Price: $4.99 |
| 20 | 503404301 | Screw Price: $4.99 |
| 21 | 503482501 | Cover-Pump Price: $17.99 |
| 22 | 503117501 | Screw Price: $2.99 |
| 23 | 530035293 | Needle Spring-Low Speed This part replaces 504210050. Price: $1.99 |
| 24 | 505316721 | Spring Price: $1.99 |
| 25 | 574871601 | NEEDLE This part replaces 503483701. Price: $5.99 |
| 26 | 503483601 | Needle-High Price: $9.99 |
| 27 | 503483301 | Idle Screw Price: $11.99 |
| 28 | 530035015 | Screw Price: $1.99 |
| 29 | 503482701 | Valve Price: $11.99 |
| 30 | 503482601 | Shaft Ass'y. Price: $27.99 |
| 31 | 503483501 | Spring Price: $0.52 |
| 32 | 503484001 | Lever Price: $0.99 |
| 33 | 505316707 | Valve Price: $1.99 |
| 34 | 503117201 | Gasket-Pump Price: $1.99 |
| 35 | 503192201 | Screw Price: $1.99 |
| 36 | 503482901 | Lever Price: $5.99 |
| 37 | 503482801 | Choke Shaft Price: $17.99 |
| 38 | 501467501 | Gasket Price: $1.99 |
| 39 | 503117301 | Diaphragm-Pump Price: $7.99 |
