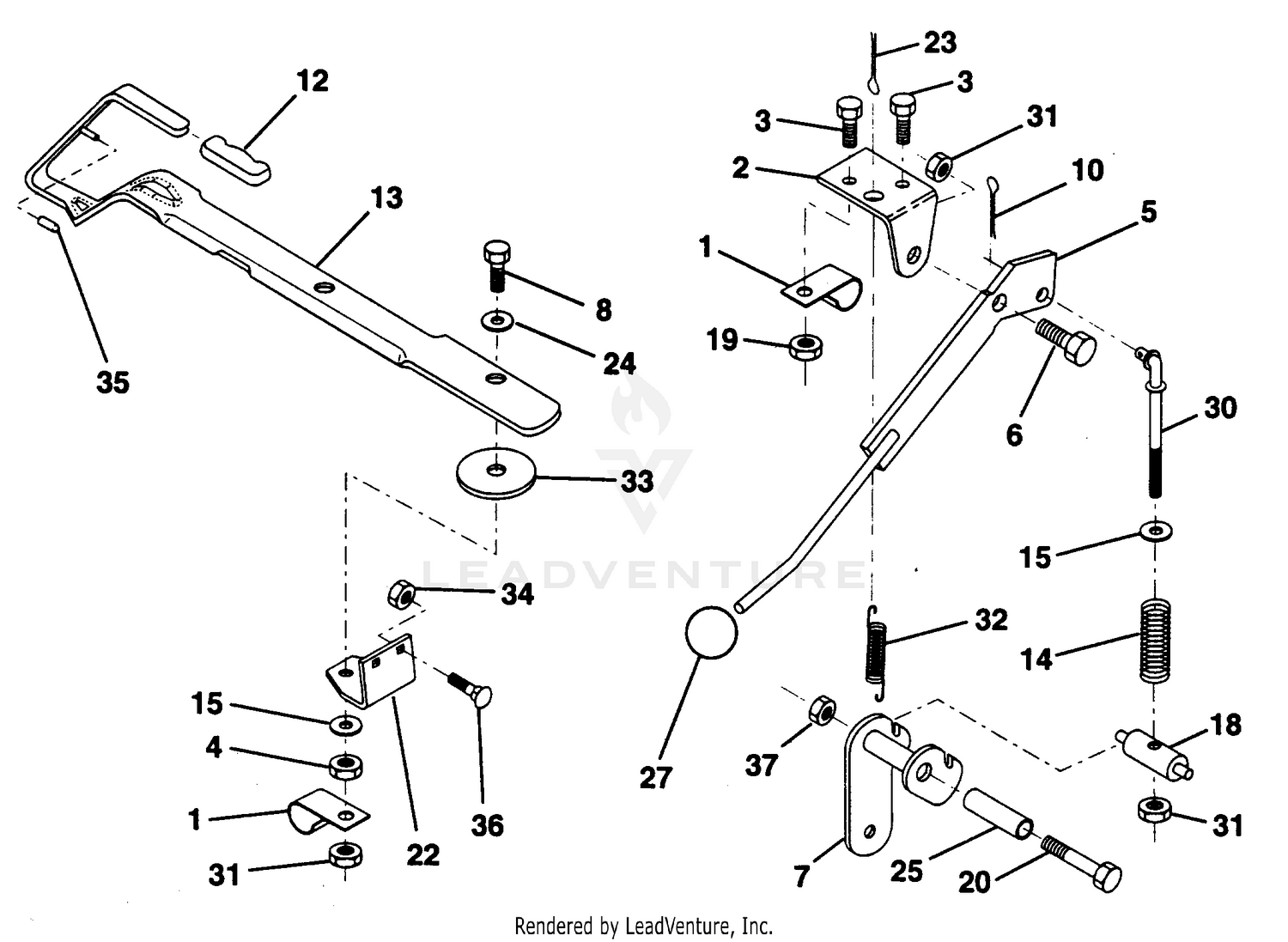

| Ref | Part Number | Description |
|---|
| 1 |
532126470 |
Clip, Insulated Price: $3.99 |
| 2 |
532122018 |
Bracket, Mower Clutch Price: $2.38 |
| 3 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 871110408. Price: $1.99 |
| 4 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 5 |
532145187 |
Assembly, Clutch Lever Price: $5.69 |
| 6 |
532106451 |
Bolt, Shoulder Price: $2.99 |
| 7 |
532141435 |
Assembly, Mower Clutch Arm Price: $18.99 |
| 8 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 Price: $3.99 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 12 |
532122027 |
Handle, Lift Lever Price: $5.72 |
| 13 |
532136658 |
Assembly, Lift Handle Price: $19.99 |
| 14 |
532133939 |
Spring, Compression Price: $3.99 |
| 15 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99 |
| 18 |
532135107 |
Trunnion, Threaded 3/8-16 Price: $6.71 |
| 19 |
873680400 |
Nut, Crownlock 1/4-20 Price: $2.69 |
| 20 |
874760644 |
Bolt, Hex Head, Fin. 3/8-16 UNC x 2-3/4 Price: $3.99 |
| 22 |
532132561 |
Bracket, Lift Lever Price: $2.42 |
| 23 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 24 |
532007672 |
Washer 25/64 x 1-1/4 x 12 Gauge Price: $1.09 |
| 25 |
532121933 |
Tube, Spacer Price: $4.28 |
| 27 |
532106932 |
Knob Price: $2.99 |
| 30 |
532135039 |
Rod, Tension, Clutch Price: $5.99 |
| 31 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 32 |
532133435 |
Spring, Extension, Return Price: $2.42 |
| 33 |
532062333 |
Washer .390 x 1.437 x .074 Price: $3.99 |
| 34 |
873800500 |
Nut, Lock Hx w/Ins 5/16-18 Price: $2.69 |
| 35 |
532133603 |
Cap, Vinyl, Red Price: $2.99 |
| 36 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
