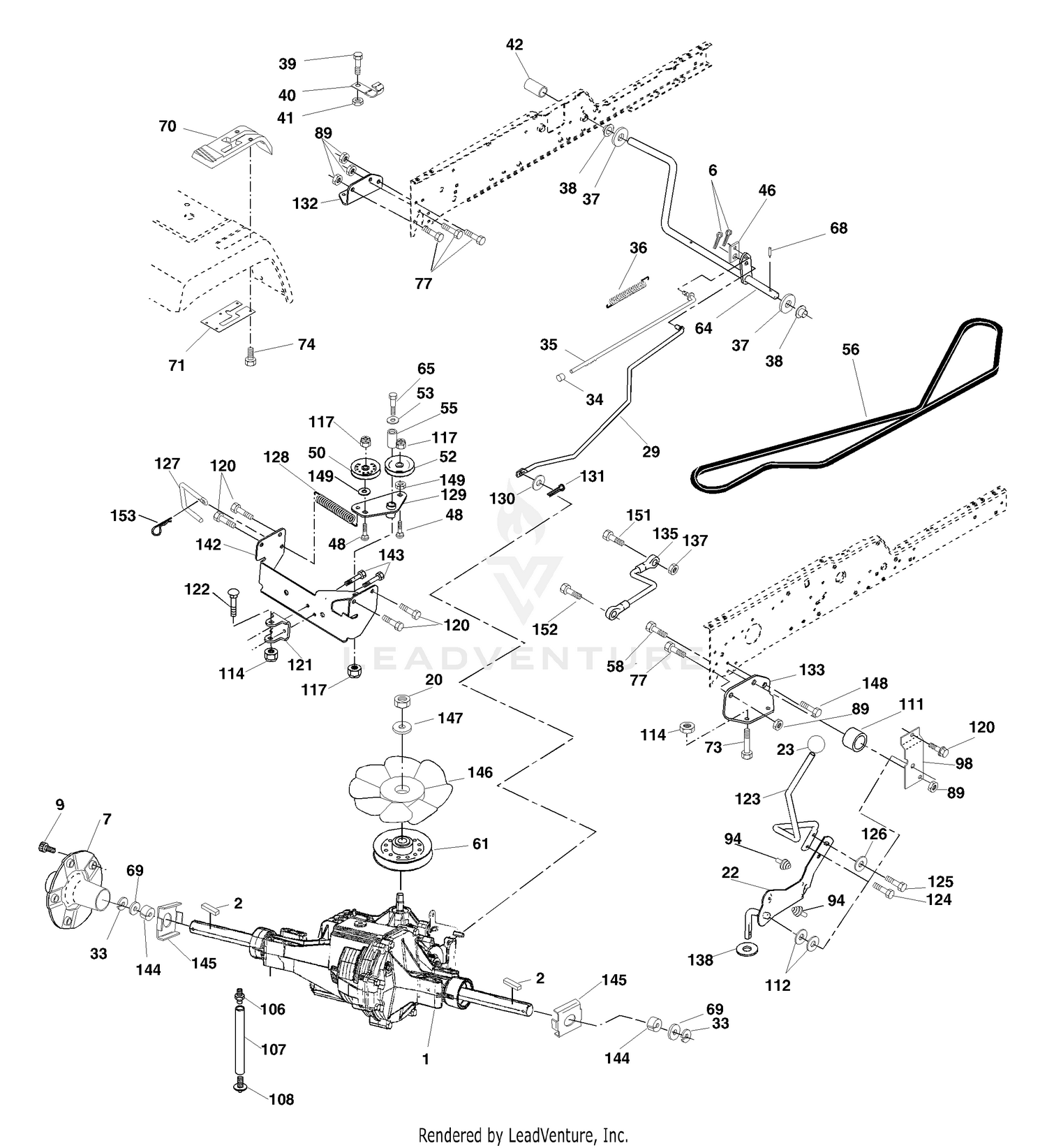

| Ref | Part Number | Description |
|---|
| 2 |
9396E |
Key Sq. 1/4 x 1/4 x 2 Price: Call Us |
| 6 |
76020412 |
Pin, Cotter Price: Call Us |
| 7 |
140507 |
Wheel, Hub Assembly Price: Call Us |
| 9 |
140080 |
Bolt, Hub Price: Call Us |
| 20 |
73940800 |
Nut Price: Call Us |
| 22 |
178391 |
Lever Asm Shift Price: Call Us |
| 23 |
140845 |
Knob Price: Call Us |
| 29 |
176600 |
Brake, Rod Price: Call Us |
| 33 |
12000053 |
Ring E Price: Call Us |
| 34 |
71673 |
Cap, Parking Brake Price: Call Us |
| 35 |
137648 |
Rod, Parking Brake Price: Call Us |
| 36 |
149412 |
Spring, Drive Ground Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 38 |
150035 |
Nyliner Price: Call Us |
| 39 |
74321016 |
Screw, Fin. #10-24 x 1 Price: Call Us |
| 40 |
178575 |
Actuator, Interlock Price: Call Us |
| 41 |
73931000 |
Nut Centerlock 10-24 Unc Price: Call Us |
| 42 |
123533X |
Cover, Pedal Price: Call Us |
| 46 |
145170 |
Retainer,Spring Price: Call Us |
| 48 |
72110614 |
Bolt Carr. Shoulder 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 50 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 52 |
127783 |
Pulley, Idler, Grooved Price: Call Us |
| 53 |
207J |
Washer,Hardened Price: Call Us |
| 55 |
105706X |
Bearing, Idler Price: Call Us |
| 56 |
161597 |
V-Belt Price: Call Us |
| 58 |
74760724 |
Bolt Fin Hex 7/16-14 x 1-1/2 Price: Call Us |
| 61 |
143995 |
Pulley, Transaxle Price: Call Us |
| 64 |
176601 |
Shaft, Brake Pedal Price: Call Us |
| 65 |
67609 |
Bolt, Shoulder Price: Call Us |
| 68 |
5142H |
Pin, Roll Price: Call Us |
| 69 |
123800 |
Washer Price: Call Us |
| 70 |
164892X428 |
Console Shift Price: Call Us |
| 71 |
151179 |
Plate Console Shift Price: Call Us |
| 73 |
74490548 |
Bolt Hex Flghd 5/16-18 x 3 Gr5 Price: Call Us |
| 74 |
142432 |
Screw Hex Wsh. Hi-Lo 1/4-1/2 Price: Call Us |
| 77 |
74760716 |
Bolt Fin Hex 7/16-14 x 1 Price: Call Us |
| 89 |
73680700 |
Nut Crownlock 7/16-14 Unc Price: Call Us |
| 94 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 98 |
141004 |
Bracket Shift Price: Call Us |
| 106 |
142918 |
O-Ring Asm Hydro Gear Price: Call Us |
| 107 |
154739 |
Line Fuel Hydro 15" VGT Price: Call Us |
| 108 |
142917 |
Cap Asm Vent Hydro Gear Price: Call Us |
| 111 |
156240 |
Spacer Shift Lever VGTH Price: Call Us |
| 112 |
156104 |
Washer Nylon High Temp Price: Call Us |
| 114 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 Unc Price: Call Us |
| 117 |
73900600 |
Nut, Lock Flg. 3/8-16 Price: Call Us |
| 120 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 121 |
175611 |
Bracket Strap Torque Price: Call Us |
| 122 |
72010520 |
Bolt 5/16-18 x 2.50 Price: Call Us |
| 123 |
176602 |
Rod Shift Price: Call Us |
| 124 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 125 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 126 |
166002 |
Washer SRRTD 5/16 ID x 1.0 x .125 Price: Call Us |
| 127 |
177362 |
Link Control Clutch Price: Call Us |
| 128 |
176624 |
Spring Drive GRND Price: Call Us |
| 129 |
178588 |
Bracket Asm Idler Tensioning Price: Call Us |
| 130 |
19131016 |
Washer 13/32 x 5/8 x 16 Ga. Price: Call Us |
| 131 |
76020312 |
Pin Cotter 3/32 x 3/4 Price: Call Us |
| 132 |
175467 |
Bracket Mtg Hydro 3500 LH VGT Price: Call Us |
| 133 |
175468 |
Bracket Mtg Hydro 3500 RH VGT Price: Call Us |
| 135 |
177364 |
Link Asm Control Hydro 3500 Price: Call Us |
| 137 |
1685H |
Nut Lock 5/16-18 NC Thd. Price: Call Us |
| 138 |
1370H |
Washer Thrust 5/8 x 1.10 x 1/32 Price: Call Us |
| 142 |
175469 |
Strap Torque HG-3500 Price: Call Us |
| 143 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 144 |
160849 |
Washer Spacer Axle HG-3000 Price: Call Us |
| 145 |
163168 |
Washer Axle Flange HG-3000 Price: Call Us |
| 146 |
140462 |
Fan 7" Hydro Price: Call Us |
| 147 |
141322 |
Washer Price: Call Us |
| 148 |
17060616 |
Screw 3/8-16 x 1.0 Price: Call Us |
| 149 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 151 |
74760514 |
Bolt Fin Hex 5/16-18 x 7/8 Price: Call Us |
| 152 |
178705 |
Bolt Hex 5/16-18 x 1 w/Patch Price: Call Us |
