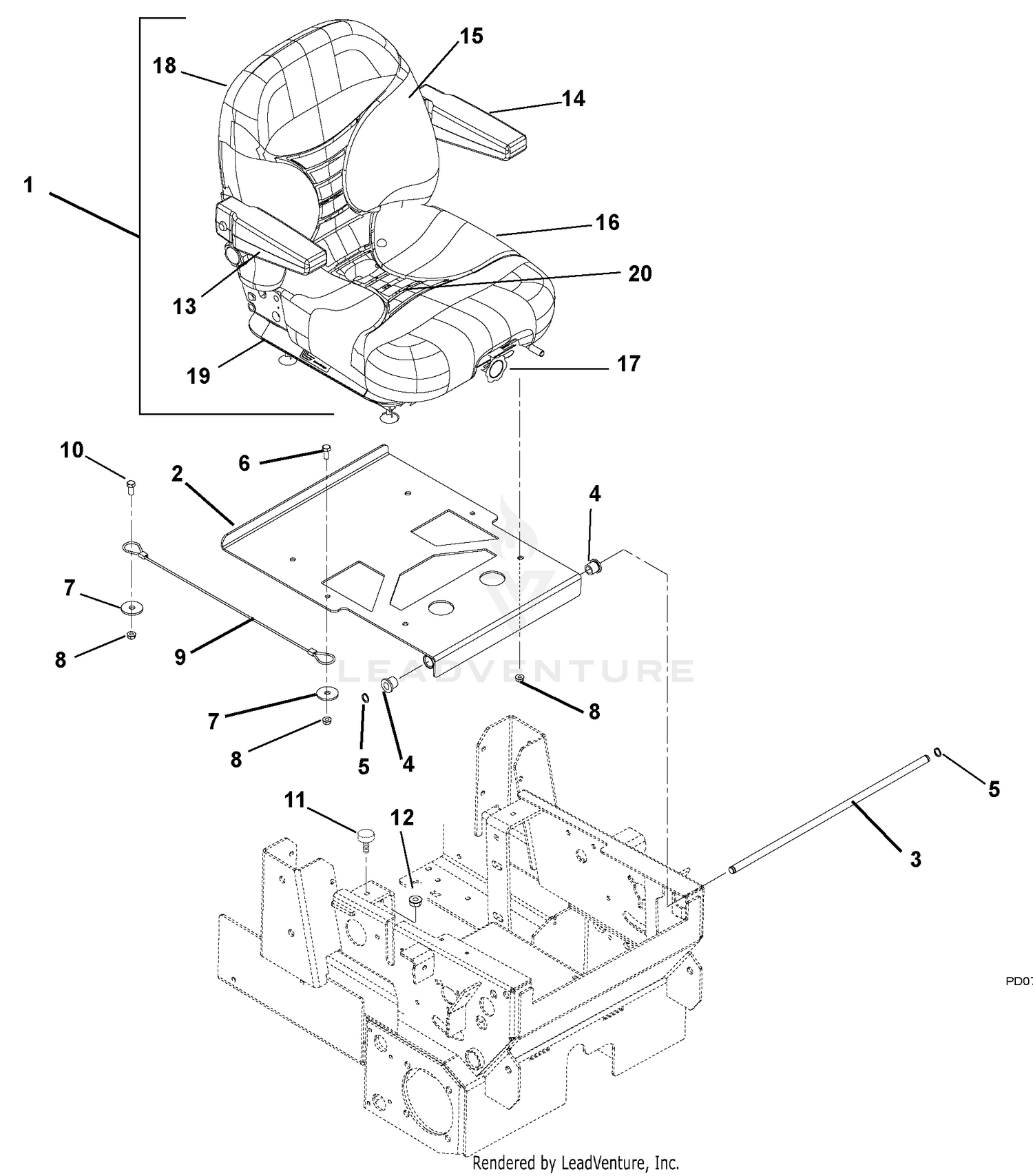

| Ref | Part Number | Description |
|---|
| 1 |
03947200 |
SEAT-SUSP-LT GRY-SEAT BLT BUSH Price: $715.95 |
| 2 |
00474151 |
WMT, SEAT PIVOT PLATE Price: Call Us |
| 4 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 5 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 6 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 7 |
06401104 |
WSHR, FLT .340X1.125X.135 ZCC This part replaces 06446300. Price: $3.95 |
| 8 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 9 |
06900010 |
CABLE, SEAT PROP. Price: $39.95 |
| 10 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 11 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 12 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 13 |
59210400 |
KIT-RH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 14 |
59210500 |
KIT-LH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 15 |
59208800 |
KIT-BACK CUSHION-LIGHT GRAY Price: $333.95 |
| 16 |
59208900 |
KIT-SEAT CUSHION-LIGHT GRAY Price: $203.95 |
| 17 |
59208000 |
KIT-SEAT KNOB Price: $26.95 |
| 18 |
59208100 |
KIT-SEAT BACK PANEL Price: $138.95 |
| 19 |
59207900 |
KIT-SEAT SLIDE Price: $172.45 |
