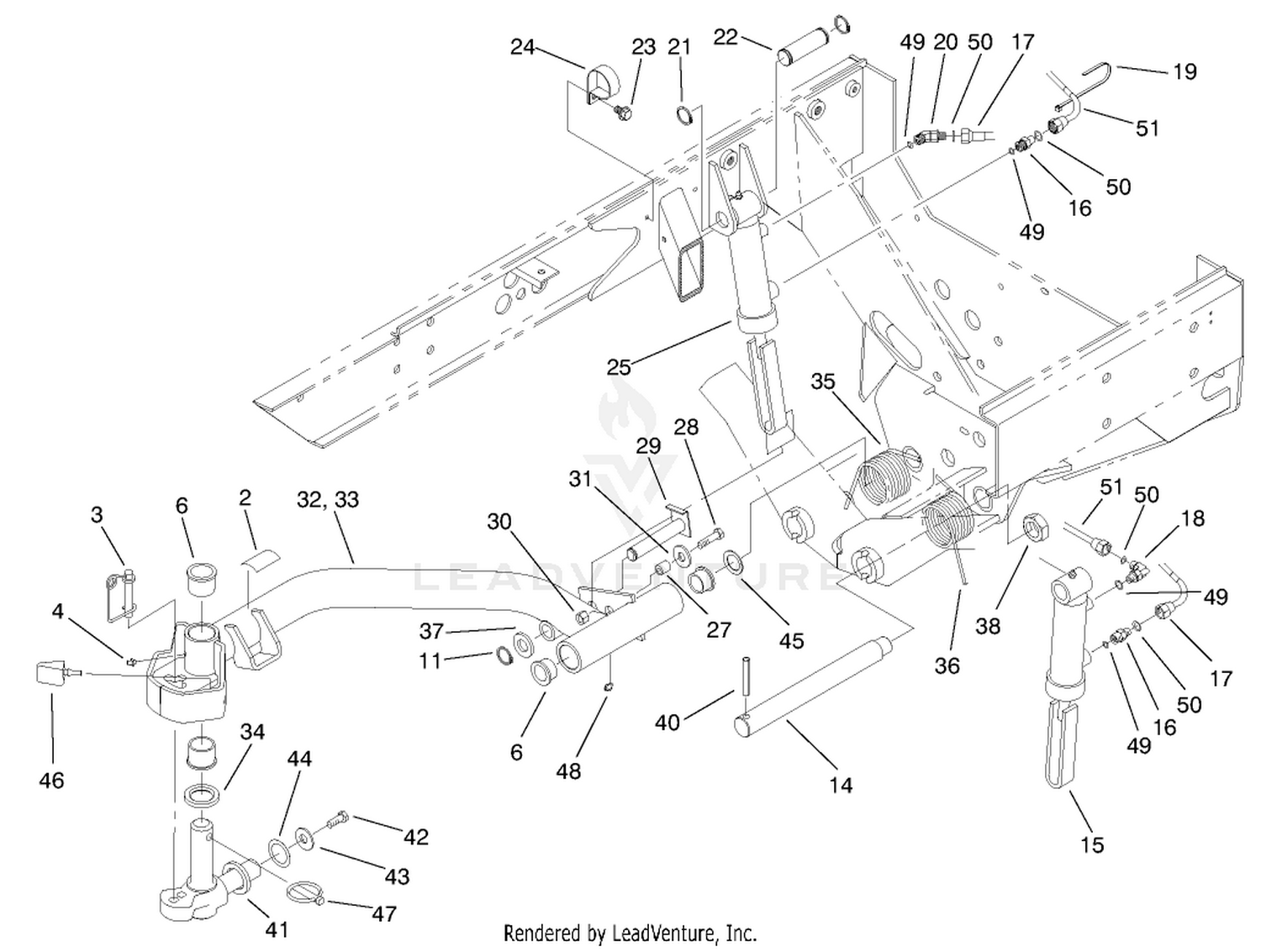

| Ref | Part Number | Description |
|---|
| 1 |
98-1880-03 |
KNUCKLE-PIVOT This part replaces 98-1880. Price: $350.23 |
| 2 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 3 |
99-5610 |
PIN Price: $40.16 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 6 |
94-8947 |
BUSHING-FLANGE Price: $4.54 |
| 11 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 14 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 15 |
98-8813 |
CYLINDER - HYD Price: $688.31 |
| 16 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 17 |
92-7636 |
HOSE ASSY Price: $71.44 |
| 18 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 19 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 20 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 21 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 22 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 23 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 24 |
2412-96 |
CLAMP-R Price: $3.46 |
| 25 |
98-8812 |
DISCONTINUED Price: Call Us |
| 27 |
82-6840 |
SPACER Price: $3.31 |
| 28 |
322-7 |
SCREW-HH Price: $0.89 |
| 29 |
99-2560 |
PIN Price: $105.63 |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 32 |
105-0108 |
LIFT ARM ASM # 3 This part replaces 99-2563. Price: $587.29 |
| 33 |
105-0107 |
LIFT ARM ASM # 2 This part replaces 99-2552. Price: $971.54 |
| 33 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 35 |
99-5608-03 |
SPRING-TORSION, RH This part replaces 99-5608. Price: $35.46 |
| 36 |
99-5609-03 |
SPRING-TORSION, LH This part replaces 99-5609. Price: $35.46 |
| 37 |
67-6570 |
SPACER-WHEEL Price: $15.99 |
| 38 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 40 |
33104-010 |
Screw-HH Price: Call Us |
| 41 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 42 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 43 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 44 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 45 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 46 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 47 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 48 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 49 |
237-78 |
O-RING Price: $3.85 |
| 50 |
237-21 |
O-RING Price: $0.70 |
