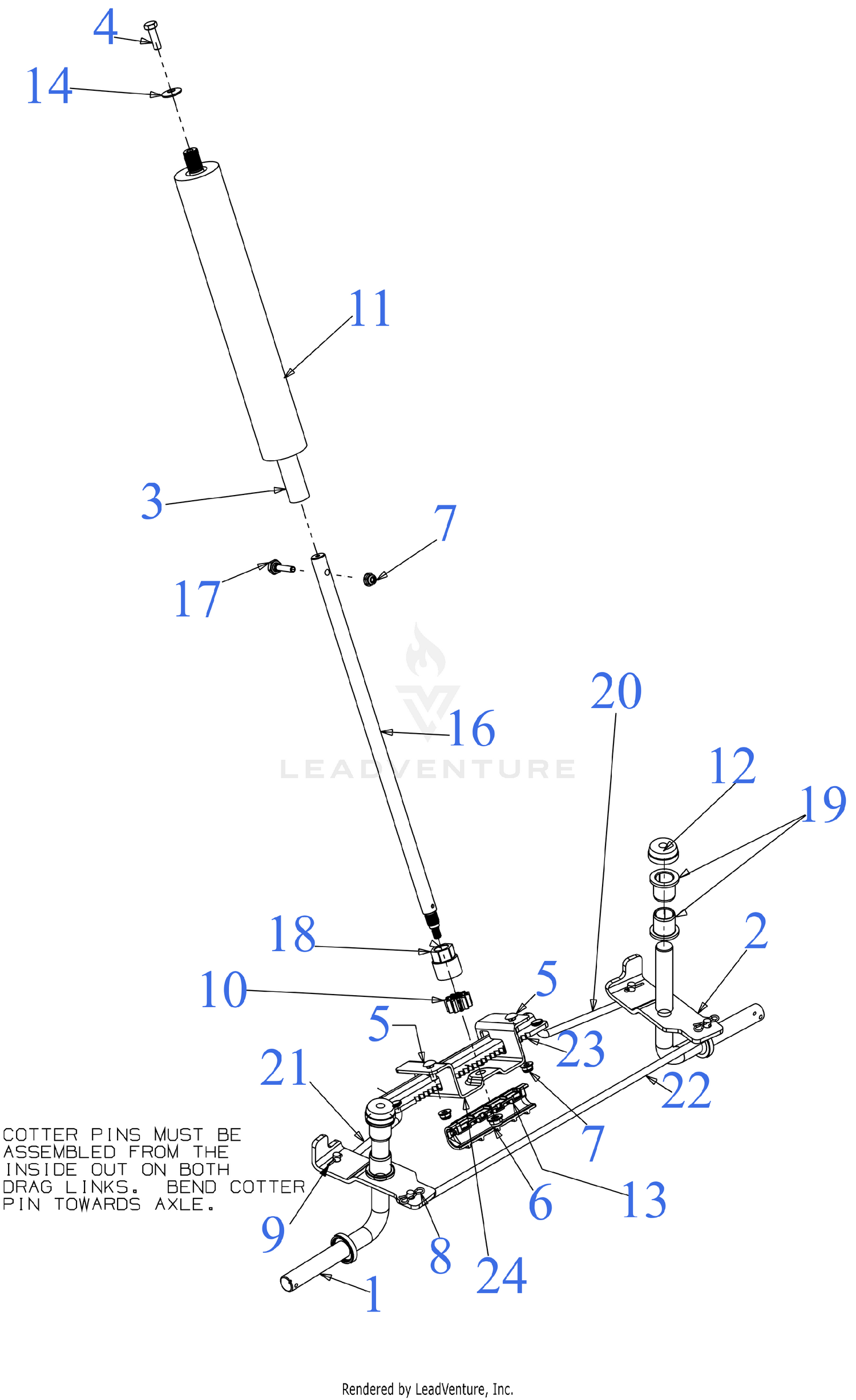

| Ref | Part Number | Description |
|---|
| 1 |
683-04726-0637 |
FRONT AXLE ASSEMBLY(RH)(POWDER BLACK) Price: $31.66 |
| 2 |
683-04727-0637 |
FRONT AXLE ASSEMBLY(LH)(POWDER BLACK) Price: $31.66 |
| 3 |
983-04763 |
TUBE ASSEMBLY Price: $28.65 |
| 4 |
710-0643 |
SCREW 5/16-18 x 1.00 GR5 Price: $5.99 |
| 5 |
710-0703 |
SCREW 1/4-20 x .75 GR5 Price: $3.66 |
| 6 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 7 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 8 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 9 |
714-0507 |
COTTER PIN 3/32 Price: $3.93 |
| 10 |
717-1554 |
STEERING PINION GEAR Price: $9.44 |
| 11 |
723-04095B |
STEERING SLEEVE Price: $26.08 |
| 12 |
726-0341 |
CAP Price: $4.26 |
| 13 |
753-11064D |
SERVICE KIT (CR12 STREERING) This part replaces 753-11064C. Price: $63.70 |
| 14 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 16 |
738-04537B |
STEERING SHAFT Price: $30.51 |
| 17 |
738-05000 |
SHOULDER SCREW .375 x .148 Price: $3.70 |
| 18 |
741-04542A |
FLANGE BEARING Price: $4.19 |
| 19 |
741-0660A |
FLANGE BEARING .760 ID Price: $2.92 |
| 20 |
747-05514 |
STEERING ROD (LH) Price: $13.05 |
| 21 |
747-05585 |
STEERING ROD (RH) Price: $13.05 |
| 22 |
747-06027 |
FRONT TIE ROD Price: $13.05 |
| 23 |
753-11064D |
SERVICE KIT (CR12 STREERING) This part replaces 753-11064C. Price: $63.70 |
