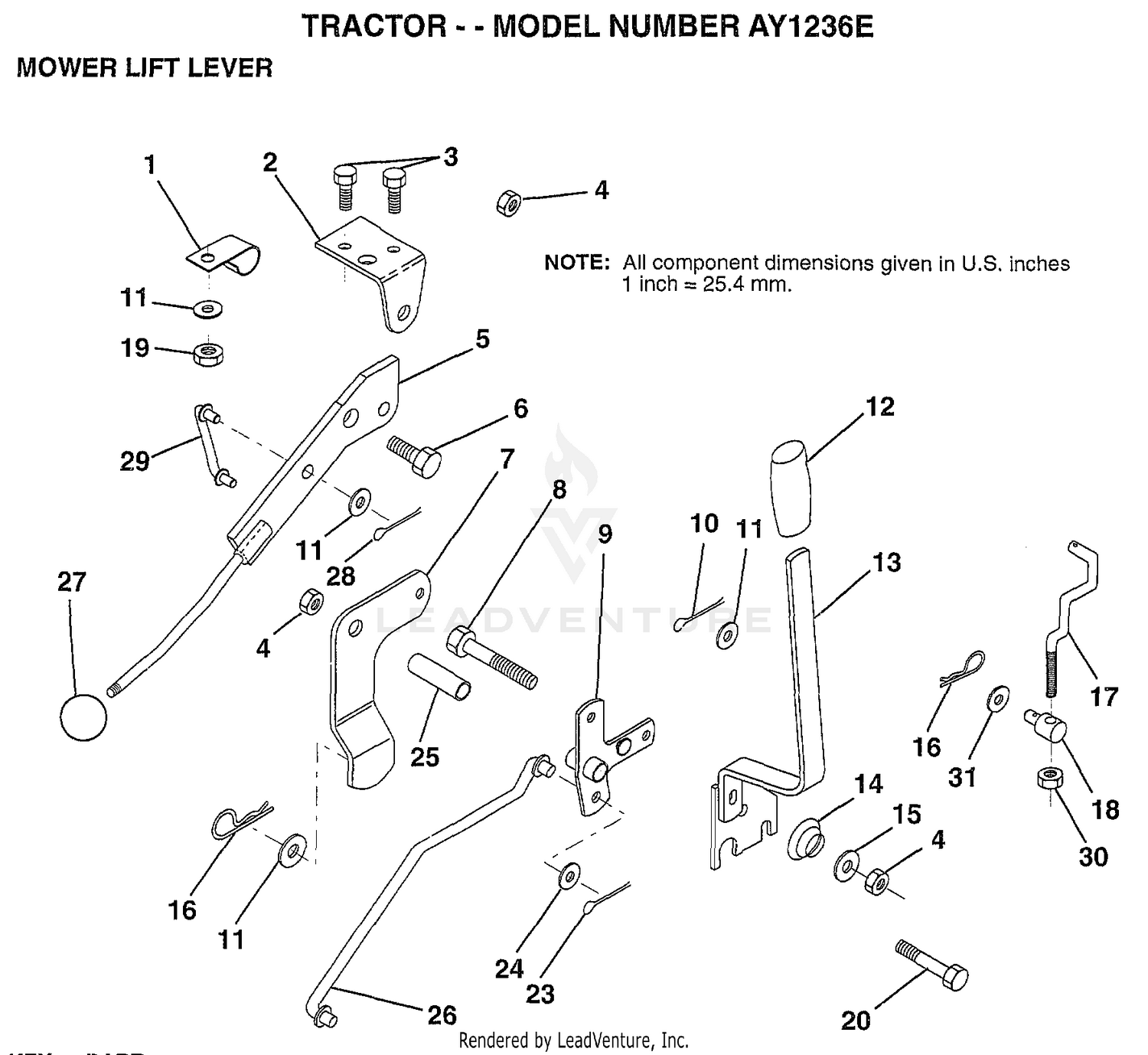

| Ref | Part Number | Description |
|---|
| 1 |
32128-19 |
NUT-HF Price: $0.99 |
| 2 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 2 |
122018X |
BRKT CLUTCH Price: Call Us |
| 3 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 3 |
86-1820-01 |
BRACKET-PULLEY Price: $18.96 |
| 4 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 4 |
73680600 |
SUB= 73690600 Price: Call Us |
| 5 |
145187 |
LEVER.ASM.CLUTCH Price: Call Us |
| 5 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 6 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 7 |
135371 |
MWR CLUTCH ARM AS Price: Call Us |
| 7 |
86-2400-01 |
LATCH-ARM Price: $109.47 |
| 8 |
325-5 |
SCREW-HH Price: $1.20 |
| 8 |
74760636 |
BOLT Price: Call Us |
| 9 |
86-1560 |
SPACER-CYLINDER, LIFT Price: $23.34 |
| 10 |
76020412 |
COTTER PIN Price: Call Us |
| 10 |
86-1490 |
END-ROD, LH THREAD Price: $84.31 |
| 11 |
19131316 |
WASHER Price: Call Us |
| 11 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 12 |
131861 |
SUB= 532131861 Price: Call Us |
| 12 |
86-1570 |
ROD-THREADED Price: $55.04 |
| 13 |
139352 |
HANDLE.ASM.LIFT Price: Call Us |
| 13 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 14 |
123496X |
SPRING COMPRESSIO Price: Call Us |
| 14 |
86-1550 |
END-ROD, RH THREAD Price: $79.70 |
| 15 |
19131212 |
WASHER T Price: Call Us |
| 15 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 16 |
4921H |
SPRING.RETAINER Price: Call Us |
| 17 |
92-7766-01 |
BRACKET-PULLEY Price: $9.40 |
| 18 |
142028 |
TRUNION ADJ Price: Call Us |
| 18 |
92-4033-01 |
TRAP-DOOR Price: $141.84 |
| 19 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 19 |
73680400 |
SUB= 73690400 Price: Call Us |
| 20 |
325-7 |
SCREW-HH Price: $1.53 |
| 20 |
74760644 |
BOLT Price: Call Us |
| 23 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 23 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 24 |
106-1057 |
KIT-CLUTCH BRACKETS This part replaces 86-2590. Price: $221.30 |
| 24 |
19171612 |
WASHER GT Price: Call Us |
| 25 |
121933X |
TUBE SPACER Price: Call Us |
| 25 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 26 |
141470 |
ROD LIFT MOWER Price: Call Us |
| 26 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 27 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 27 |
86-2600-01 |
WASHER-GUIDE, BELT Price: $5.77 |
| 28 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 28 |
76020312 |
SUB= 3145 Price: Call Us |
| 29 |
131655 |
CLUTCH LINK Price: Call Us |
| 30 |
73350600 |
NUT Price: Call Us |
