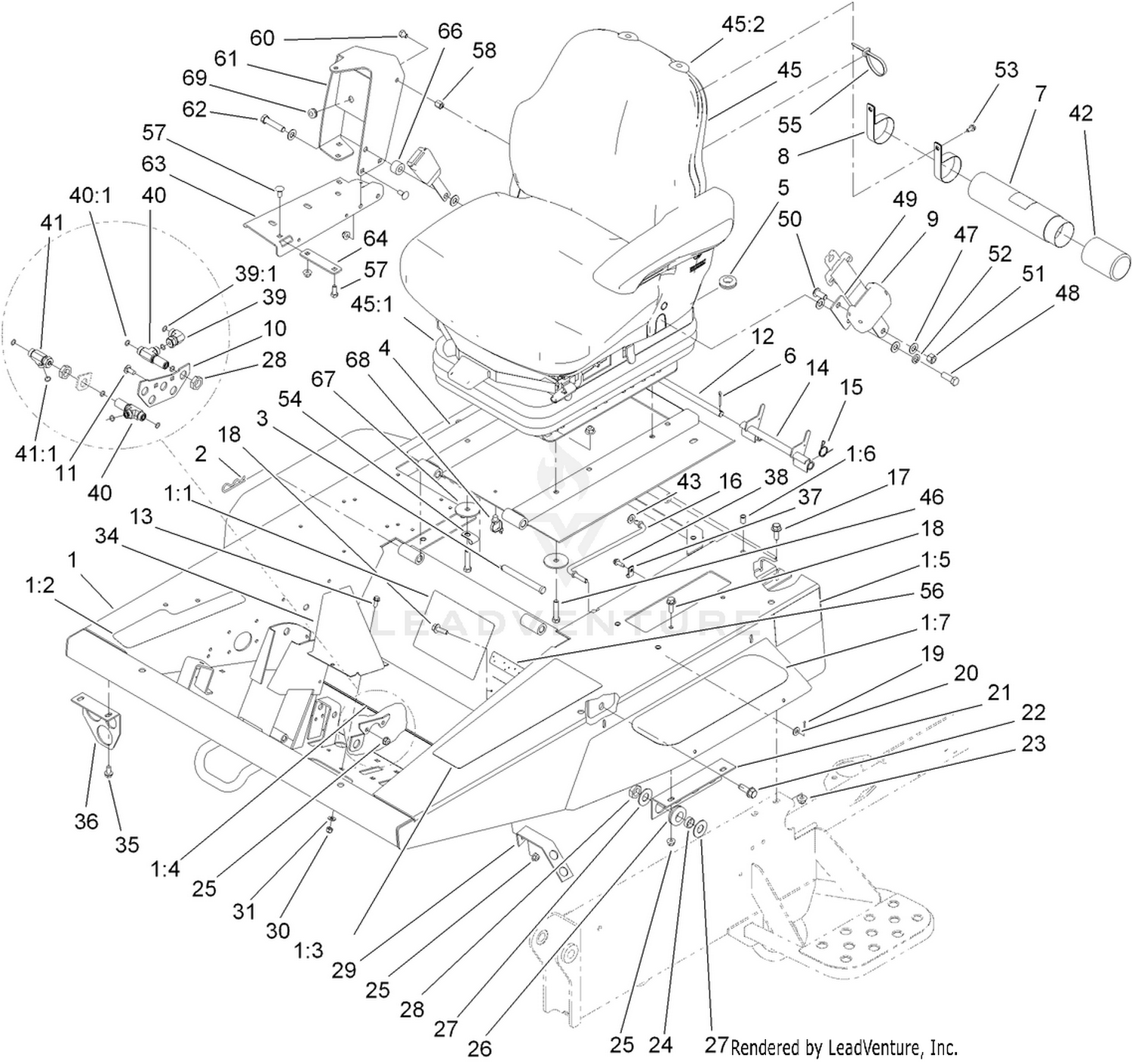

| Ref | Part Number | Description |
|---|
| 1 |
117-5710 |
PLATFORM ASM Price: $3,087.57 |
| 2 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 3 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 4 |
117-5727-03 |
PLATE-SEAT Price: $350.86 |
| 5 |
100-4866 |
GROMMET Price: $13.73 |
| 6 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 7 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 8 |
2412-133 |
CLAMP-R Price: $3.19 |
| 9 |
110-0413 |
SEATBELT-RETRACTABLE Price: $286.99 |
| 10 |
119-0063-01 |
PLATE-BULKHEAD Price: Call Us |
| 11 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 12 |
93-5366 |
SHAFT-LATCH Price: $34.55 |
| 13 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 14 |
115-6696 |
LATCH Price: $103.58 |
| 15 |
93-5367 |
SPRING-TORSION Price: $30.35 |
| 16 |
93-5338 |
ROD-PROP Price: $124.99 |
| 17 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 18 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 19 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 21 |
100-3149-03 |
BRACKET-BULKHEAD Price: $29.55 |
| 22 |
32144-67 |
SCREW Price: $2.87 |
| 23 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 24 |
69-8970 |
SPACER Price: $9.57 |
| 25 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 26 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 27 |
69-8940 |
WASHER Price: $1.76 |
| 28 |
340-70 |
NUT-LOCK Price: $2.10 |
| 29 |
100-5500-03 |
SUPPORT Price: $27.31 |
| 30 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 31 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 34 |
100-3045-01 |
COVER-TUBES Price: $39.02 |
| 35 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 36 |
105-7373-01 |
BRACKET-BULKHEAD, LH Price: $21.85 |
| 36 |
105-7489-01 |
BRACKET-BULKHEAD, RH Price: $20.84 |
| 37 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 38 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 39 |
340-159 |
FITTING-HYD, 90 DEG Price: $55.33 |
| 40 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 41 |
340-115 |
FITTING-TEE, SWIVEL NUT Price: $56.09 |
| 42 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 43 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 46 |
323-9 |
SCREW-HH Price: $1.29 |
| 47 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 48 |
3212-5 |
SCREW-HH Price: $2.46 |
| 49 |
108-1516 |
MOUNT-BELT, SEAT Price: $14.37 |
| 50 |
3274-105 |
SCREW-HSBH Price: $7.79 |
| 51 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 52 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 53 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 54 |
2412-113 |
CLAMP-R Price: $0.75 |
| 55 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 56 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 57 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 58 |
112-7405 |
NUT-HEX, COUPLING Price: $33.55 |
| 60 |
108-8646 |
SCREW-HH, LOCK Price: $2.85 |
| 61 |
117-4798-03 |
ARM-SUPPORT Price: $114.47 |
| 62 |
3212-8 |
SCREW-HH Price: $5.69 |
| 63 |
119-0000-03 |
CHANNEL-SUPPORT Price: $42.04 |
| 64 |
112-7449 |
STRAP-SUPPORT This part replaces 112-7449-03. Price: $7.18 |
| 66 |
17-7190 |
SPACER-FINGER Price: $6.51 |
| 67 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 68 |
32180-030 |
CLIP-TIE Price: $4.19 |
