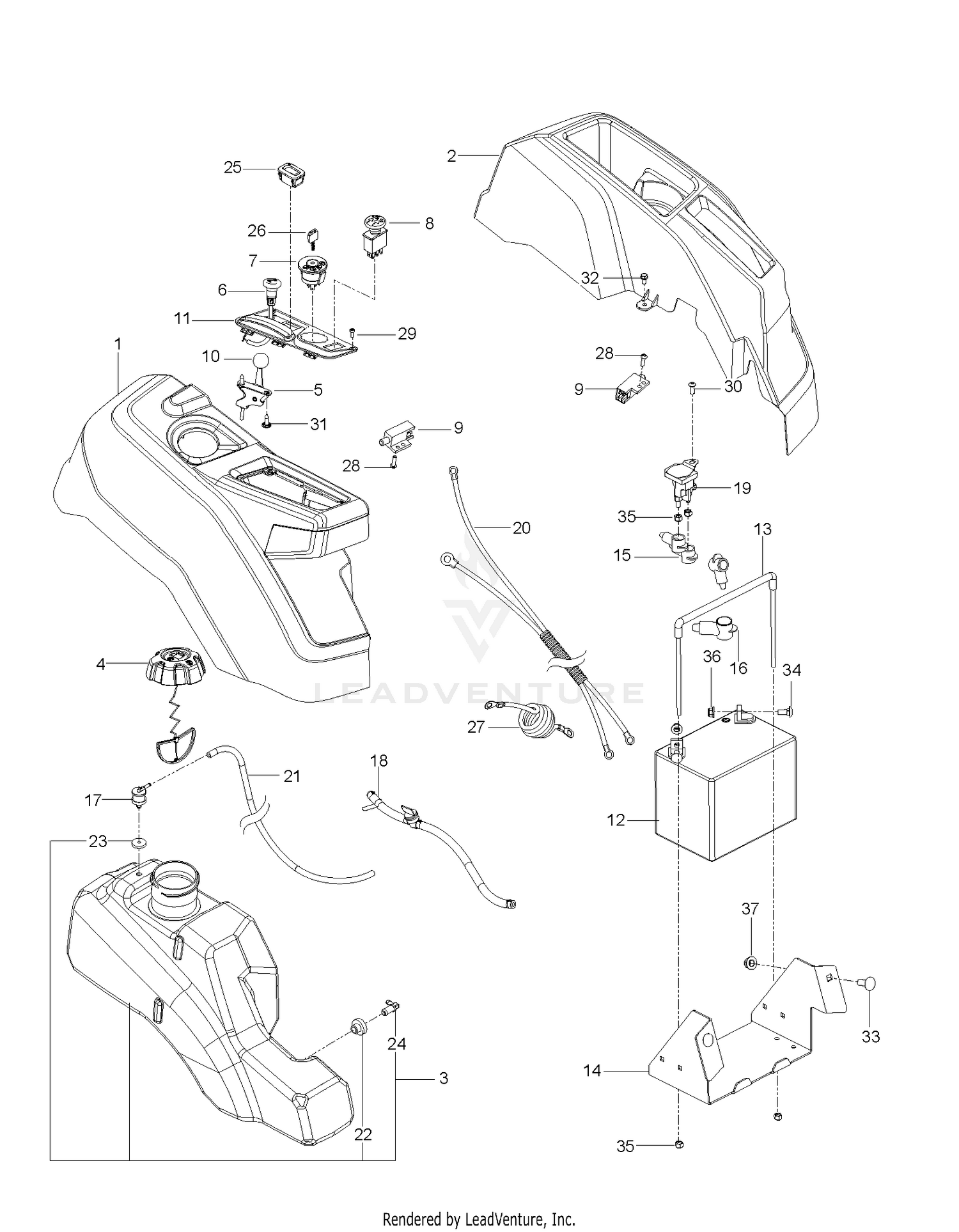

| Ref | Part Number | Description |
|---|
| 1 |
598602602 |
CONSOLE.ASSY.RZ.HUSQ.RH This part replaces 585522801. Price: $89.99 |
| 2 |
586621202 |
CONSOLE ASM This part replaces 586621201. Price: $79.99 |
| 5 |
597524002 |
THROTTLE This part replaces 539102732. Price: $37.99 |
| 6 |
586881502 |
CHOKE.PUSH-IN.STYLE.57" Price: $19.99 |
| 7 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 8 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174652. Price: $24.99 |
| 9 |
587601501 |
SWITCH.INTLK.RZ.RFRSH.BUTTON Price: $11.99 |
| 10 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 11 |
585522701 |
CONTROL.PANEL.RZ.REFRESH.RH Price: $11.99 |
| 12 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 13 |
539131209 |
BATTERY TIE DOWN ASSEMBLY Price: $27.99 |
| 14 |
585048702 |
BOX BATTERY RZ BLACK Price: $12.99 |
| 15 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 16 |
539102759 |
INSULATOR Price: $3.99 |
| 17 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 18 |
586123904 |
FUEL.HOSE.SHUT.OFF.ASM.10".3" Price: $11.99 |
| 19 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 20 |
587198601 |
HARNESS.BTTRY.CABLE.RZ.REFRESH Price: $22.99 |
| 21 |
587044533 |
HOSE.3/16".VAPOR.LINE.33"LGTH Price: $3.99 |
| 22 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 23 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 532437492. Price: $3.99 |
| 24 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 25 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 586161801. Price: $19.99 |
| 26 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 27 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 28 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 29 |
545227101 |
SCREW 6-19X.437 Price: $2.99 |
| 30 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 31 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 32 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 33 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 34 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 35 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 36 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 37 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 532109748 |
RELAY.ASSY.T |
Price: $19.99 532109748 |
