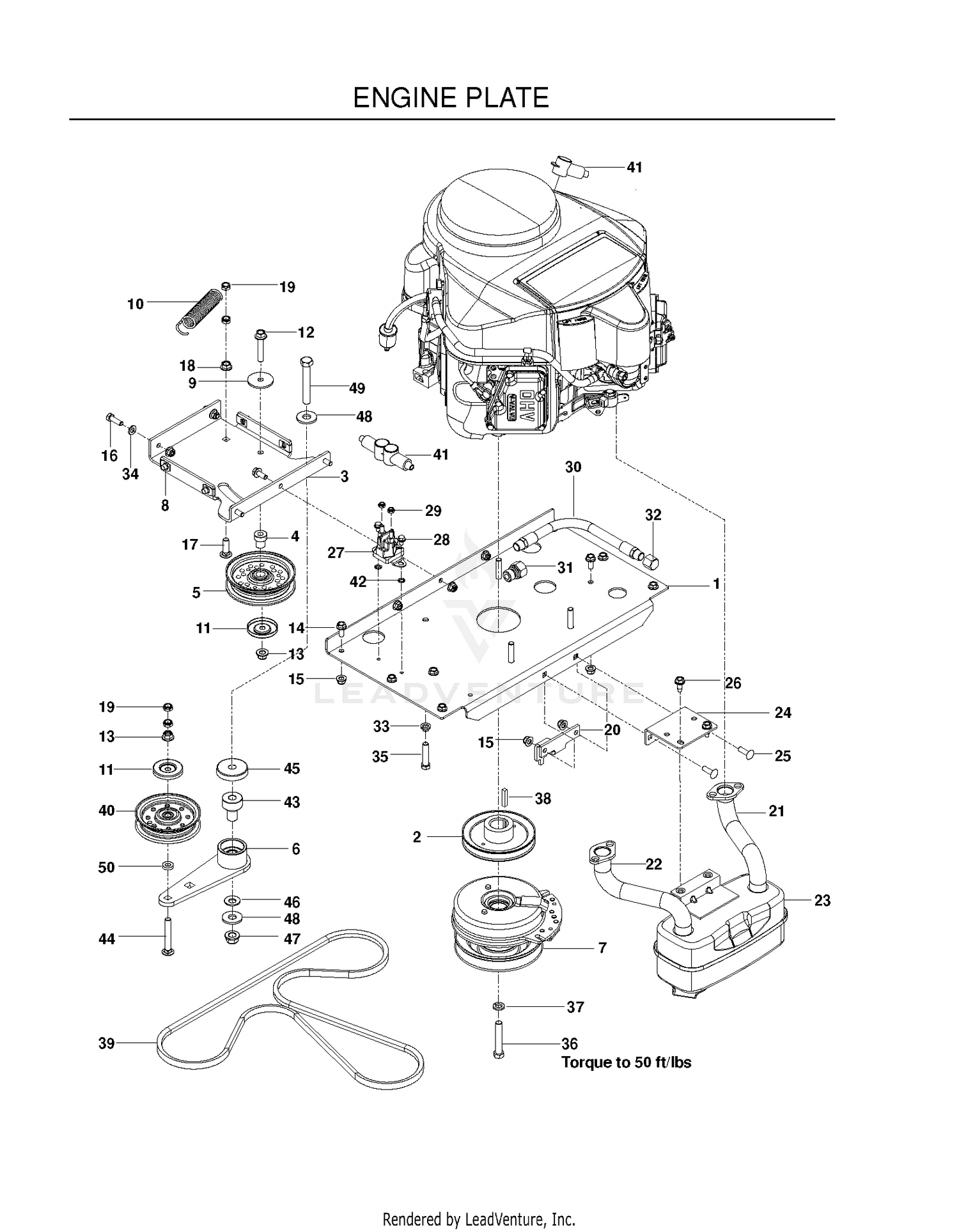

| Ref | Part Number | Description |
|---|
| 1 |
575608801 |
PLATE, ENGINE W/DECALS Price: $179.99 |
| 1 |
93-1374 |
LATCH-SWELL Price: $27.60 |
| 2 |
574811001 |
PULLEY, V, 1.125 BORE Price: $39.99 |
| 2 |
93-0032-03 |
HOUSING-SCREEN, FRONT This part replaces 93-0032. Price: $455.35 |
| 3 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 3 |
574846402 |
PLATE, IDLER, BLK Price: $79.99 |
| 4 |
525435601 |
PIVOT, IDLER Price: $5.99 |
| 4 |
93-0090 |
DISCONTINUED Price: Call Us |
| 5 |
3269-15 |
RIVET-POP Price: $0.54 |
| 5 |
596739801 |
PULLEYS This part replaces 539976688. Price: $29.99 |
| 6 |
510041603 |
ARM, IDLER, STEEL, W/BGS Price: $49.99 |
| 6 |
75-0930 |
HOOK-MOUNT, COOLER Price: $22.00 |
| 7 |
574607001 |
CLUTCH 200 FT LB Price: $379.99 |
| 7 |
98-9317 |
DISCONTINUED Price: Call Us |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 9 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 9 |
93-0030 |
DISCONTINUED Price: Call Us |
| 10 |
304-46 |
DRAINCOCK Price: $7.55 |
| 10 |
510254402 |
Springs This part replaces 510254401. Price: $5.99 |
| 11 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 11 |
93-0005 |
STRIP-FOAM, RADIATOR TOP Price: $19.96 |
| 12 |
525866201 |
HHFS 3/8-16 X 2.0 GD 5 Price: $3.99 |
| 12 |
98-4507 |
RADIATOR Price: $1,279.00 |
| 13 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 13 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 14 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 14 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 15 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 15 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 16 |
110-4108 |
HOSE-FUEL This part replaces 75-2851. Price: $31.16 |
| 16 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
539100413 |
RHSNB 3/8-16 X 1-1/4 Price: $2.99 |
| 18 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 18 |
98-4511 |
HOSE-RADIATOR, UPPER Price: $58.55 |
| 19 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 19 |
98-4571 |
DISCONTINUED Price: Call Us |
| 20 |
3290-271 |
RIVET-POP Price: $0.25 |
| 20 |
575017305 |
STOP CLUTCH STOP This part replaces 575017302. Price: $12.99 |
| 21 |
98-9335 |
PLATE-WARNING, FAN Price: $6.17 |
| 22 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 22 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 23 |
321-4 |
SCREW-HH Price: $0.99 |
| 23 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 24 |
575229902 |
BRKT, MUFFLER, BLK Price: $29.99 |
| 24 |
98-4508 |
DISCONTINUED Price: Call Us |
| 25 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 25 |
596435701 |
Bolts This part replaces 539107271. Price: $2.99 |
| 26 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 26 |
66-3180 |
TUBE-VENT Price: $18.60 |
| 27 |
539101714 |
SOLENOID Price: $22.99 |
| 28 |
596582701 |
Screws This part replaces 539990302. Price: $2.99 |
| 28 |
75-4701 |
HOSE-FUEL Price: $8.20 |
| 29 |
2412-103 |
CLAMP Price: $2.51 |
| 29 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 30 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 30 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 31 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 31 |
522599003 |
ADAPTER This part replaces 522599001. Price: $8.99 |
| 32 |
3269-13 |
RIVET-POP Price: $0.25 |
| 32 |
539101364 |
DRAIN CAP Price: $5.99 |
| 33 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 33 |
93-0025-03 |
SHIELD-RADIATOR ASM This part replaces 93-0025. Price: $142.37 |
| 34 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 34 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 35 |
596918101 |
Bolts This part replaces 539976949. Price: $2.99 |
| 35 |
98-4591 |
DISCONTINUED Price: Call Us |
| 36 |
322-2 |
SCREW-HH Price: $0.69 |
| 36 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 37 |
117-3276 |
DECAL-DANGER This part replaces 93-7840. Price: $10.70 |
| 37 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 38 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 39 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 39 |
574870901 |
BELT, HYDRO, 3400 Price: $34.99 |
| 40 |
596481401 |
Pulleys This part replaces 539107620. Price: $22.99 |
| 41 |
539102759 |
INSULATOR Price: $3.99 |
| 42 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 42 |
63-7590 |
RELAY Price: $78.15 |
| 43 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 44 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 44 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 45 |
24-0760 |
DISCONTINUED Price: Call Us |
| 45 |
596394601 |
Shields This part replaces 539114662. Price: $2.99 |
| 46 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 46 |
93-0076 |
HOSE ASM Price: $70.73 |
| 47 |
237-22 |
O-RING Price: $2.43 |
| 47 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 48 |
340-124 |
ADAPTER Price: $23.18 |
| 48 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 49 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 49 |
93-0077 |
HOSE ASM Price: $130.09 |
| 50 |
237-65 |
O-RING Price: $2.50 |
| 50 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
| 51 |
92-4999 |
FITTING Price: $67.92 |
| 52 |
75-1040 |
COOLER-OIL Price: $761.60 |
| 53 |
84-3260 |
DECAL - DANGER BACKLAP Price: $14.18 |
| 53 |
93-6684 |
DECAL-BACKLAP Price: $7.84 |
| 54 |
218-498 |
NUT-LOCK Price: $0.68 |
| 55 |
75-3390-03 |
BRACKET-BACKLAP This part replaces 75-3390. Price: $11.98 |
| 56 |
66-8800 |
RELAY Price: $87.56 |
| 57 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 58 |
93-0082 |
GROMMET - RUBBER Price: $6.67 |
| 59 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 60 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 61 |
93-3623 |
STRIP-SEALING, RADIATOR Price: $12.44 |
| 62 |
93-3624-03 |
PLATE-RETAINING This part replaces 93-3624. Price: $8.64 |
| 63 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 64 |
3253-7 |
WASHER-LOCK Price: $0.27 |
