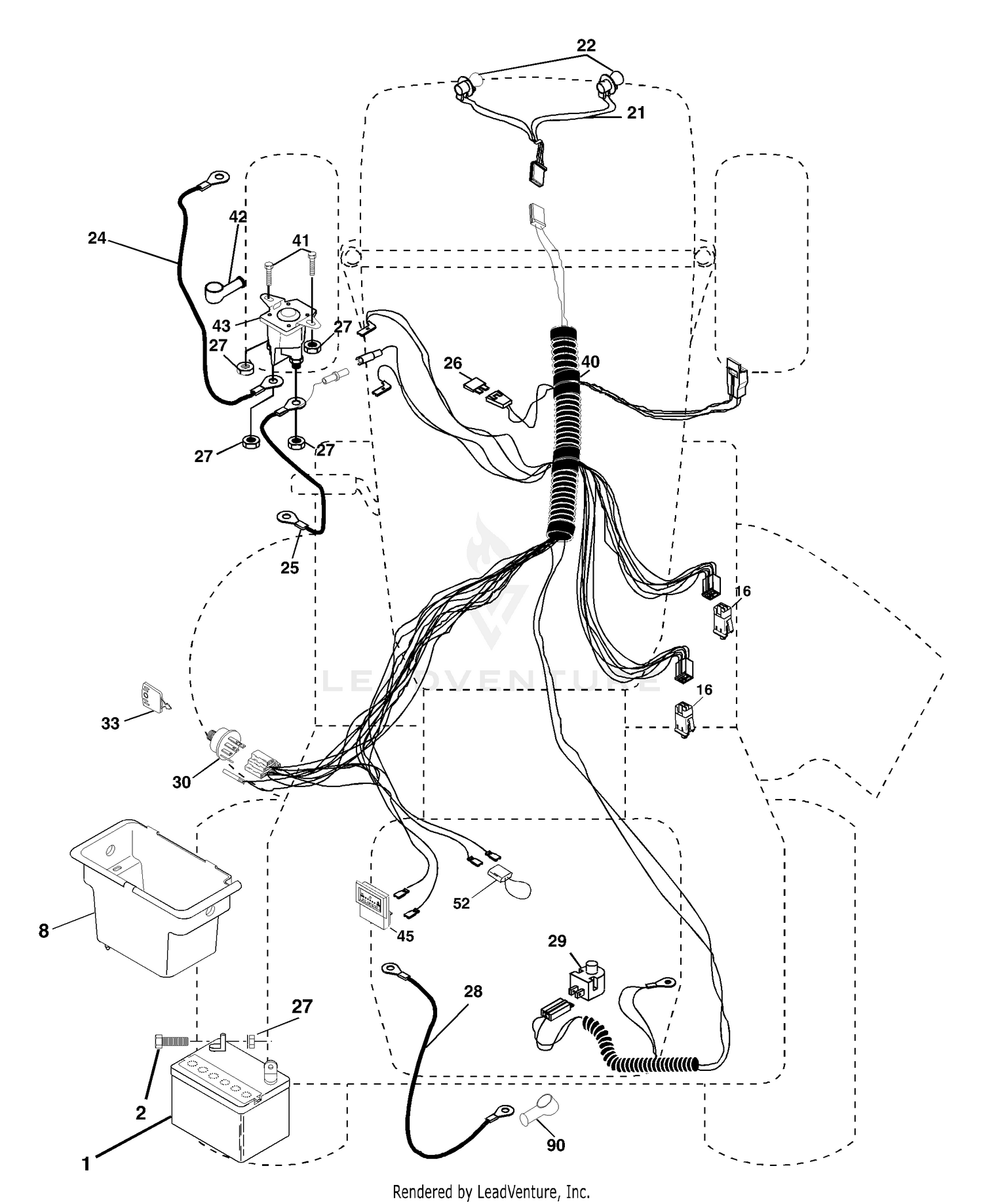

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 1 |
808440 |
Cylinder Assembly Price: Call Us |
| 2 |
808534 |
Bushing-Seal Kit Price: Call Us |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 8 |
532176689 |
BOX.BATTERY.FENDER Price: $9.99 |
| 8 |
807795 |
Breather Assembly Price: Call Us |
| 10 |
805751 |
Screw Price: Call Us |
| 11 |
806083 |
Tube-Breather Price: Call Us |
| 12 |
806190 |
Gasket-Crankcase Price: Call Us |
| 15 |
805048 |
Plug-Oil Drain Price: Call Us |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
805754 |
Ball Bearing Price: Call Us |
| 18 |
808502 |
Cover-Crankcase Price: Call Us |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
805696 |
Screw-Hex. Price: Call Us |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532179720 |
HARNESS.IGNITION Price: $99.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 45 |
532122822 |
AMMETER This part replaces 532121433. Price: $17.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 84 |
91488 |
Plug-Oil Price: Call Us |
| 116 |
806191 |
Seal-O-Ring Price: Call Us |
| 166 |
805073 |
Stud-Hex. Drive Price: Call Us |
| 188 |
805247 |
Screw Price: Call Us |
| 189 |
805449 |
Washer Price: Call Us |
| 523 |
807977 |
Dipstick Price: Call Us |
| 525 |
807584 |
Tube-Oil Fill Price: Call Us |
| 552 |
805412 |
Bushing-Govemor Shaft Price: Call Us |
| 552A |
805413 |
Bushing-Govemor Shaft Price: Call Us |
| 572 |
805197 |
Baffle-Oil Price: Call Us |
| 614 |
806096 |
Pin-Cotter Price: Call Us |
| 616 |
807596 |
Fork-Govemor Price: Call Us |
| 634 |
805416 |
Seal-Governor Price: Call Us |
| 718 |
805103 |
Pin-Dowel Price: Call Us |
| 982 |
805030 |
Screw Price: Call Us |
| 1027 |
492932 |
Filter-Oil Price: Call Us |
