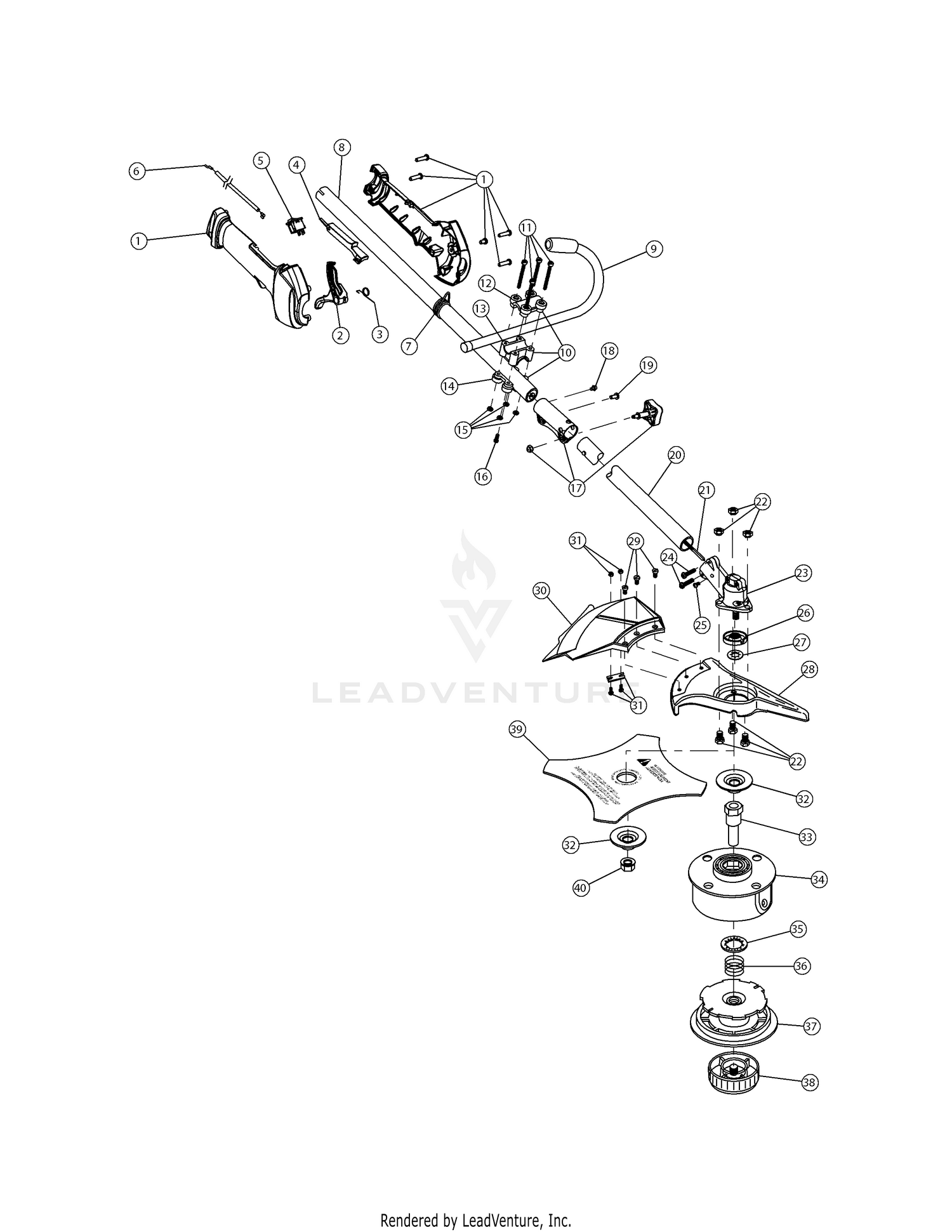

| Ref | Part Number | Description |
|---|
| 2 |
731-04970B-10 |
Throttle Trigger This part replaces 753-04991. Price: $8.16 |
| 3 |
753-05007 |
TRIGGER SPRING Price: $4.42 |
| 4 |
731-04971B-10 |
LOCK OUT LEVER This part replaces 753-05171. Price: $4.40 |
| 5 |
791-182405 |
Switch Assembly Price: $9.29 |
| 6 |
753-06251 |
Throttle Cable Assembly Price: $6.77 |
| 7 |
4301A |
SHOULDER STRAP CLAMP Price: $3.06 |
| 7 |
791-610327 |
Harness Clip Price: $28.62 |
| 8 |
753-04236 |
Upper Drive Shaft Housing Assembly Price: $87.52 |
| 9 |
791-181099 |
J-Handle Assembly Price: $10.64 |
| 11 |
791-181811 |
Screw Price: $4.05 |
| 12 |
791-181812 |
Upper Handle Clamp Price: $7.65 |
| 13 |
791-181813 |
Middle Handle Clamp Price: $10.65 |
| 14 |
791-181814 |
Lower Handle Clamp Price: $7.77 |
| 15 |
791-181815 |
Nut Price: $3.76 |
| 16 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 18 |
791-182057 |
Screw Price: $3.93 |
| 19 |
791-181617 |
Bolt Price: $4.59 |
| 20 |
791-160226 |
Lower Drive Shaft Housing Assembly Price: $61.54 |
| 21 |
791-613300 |
Lower Flexible Drive Shaft Price: $77.81 |
| 22 |
791-182200 |
Shield Mount Screw Assembly Price: $6.07 |
| 24 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 25 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 26 |
791-182196 |
Blade Driver Price: $19.73 |
| 27 |
753-04348 |
Palnut Price: $5.94 |
| 28 |
791-147492 |
Blade Shield/Shield Mount Price: $111.50 |
| 29 |
791-683304 |
Shield Mounting Screw Price: $10.12 |
| 31 |
791-682061 |
Blade Assembly Price: $12.51 |
| 32 |
791-147490 |
Retaining Washer Price: $10.07 |
| 33 |
791-612483 |
Spool Shaft Price: $49.05 |
| 35 |
1772 |
RETAINER This part replaces 791-612026. Price: $5.94 |
| 36 |
791-610636B |
Spring Price: $9.35 |
| 37 |
791-147495 |
Inner Reel Price: $24.36 |
| 38 |
791-180814B |
KNOB ASSEMBLY-BUMP 3000 STRG TRM Not Available Price: |
| 40 |
712-04105 |
BLADE LOCK NUT This part replaces 791-181699. Price: $9.97 |
