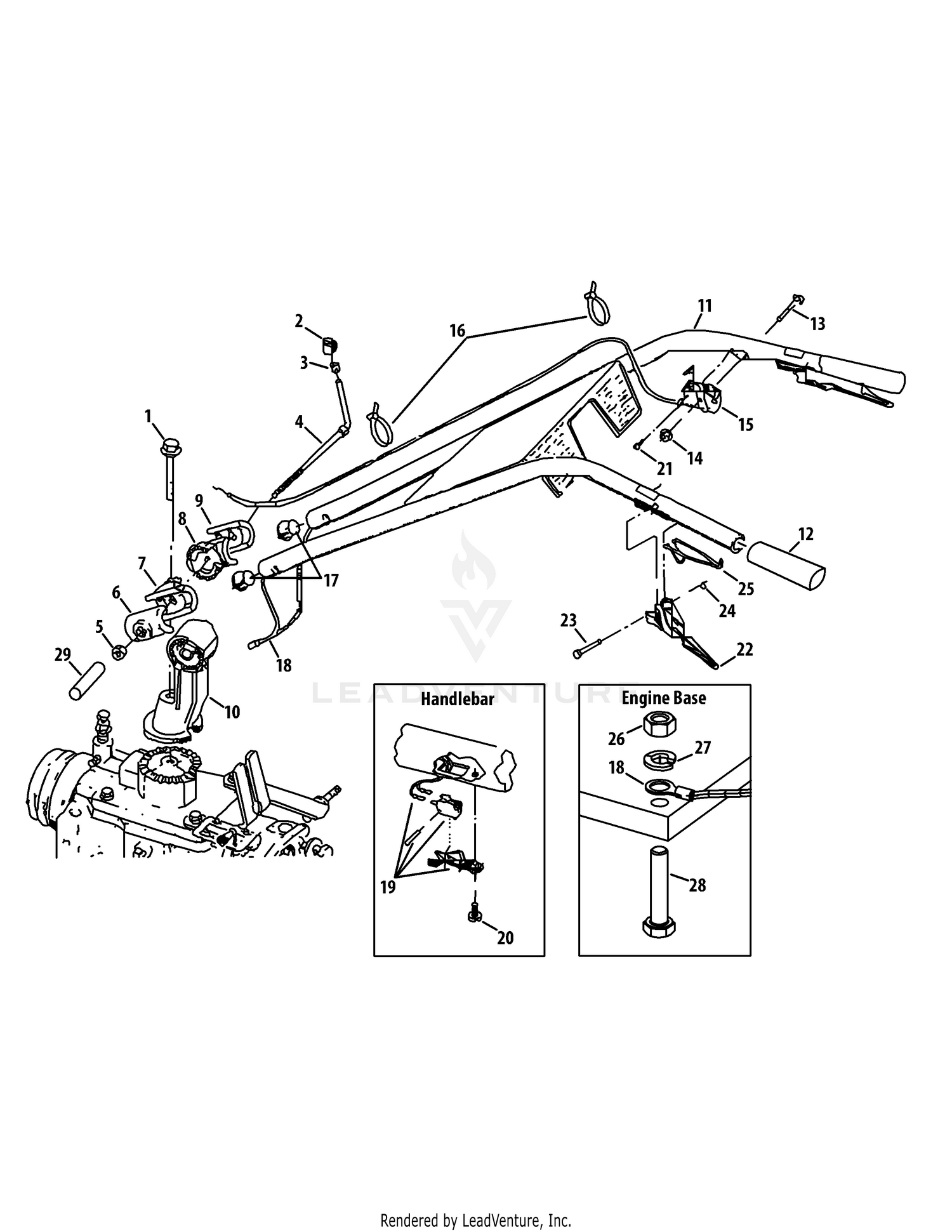

| Ref | Part Number | Description |
|---|
| 1 |
GW-9548 |
Hex Bolt, 1/2-13 x 3-1/2 Price: $12.42 |
| 2 |
GW-9119 |
Handlebar Height Adjustment Knob Price: $10.22 |
| 3 |
GW-9120 |
Retaining Ring Price: $5.94 |
| 4 |
GW-1881 |
Handlebar Height Adjustment Stud Price: $54.59 |
| 5 |
712-0206 |
HEX NUT This part replaces 912-0206. Price: $3.90 |
| 6 |
1900854010 |
Handlebar Hgt, Adj. Clamp (LT) Price: $32.05 |
| 7 |
1900856010 |
Handlebar Hgt. Adj. Ratchet (LT) Price: $37.73 |
| 8 |
1900857010 |
Handlebar Hgt. Adj. Ratchet (RT) Price: $43.05 |
| 9 |
1900855010 |
Handlebar Hgt. Adj. Clamp (RT) Price: $33.74 |
| 10 |
1900858010 |
Handlebar Mounting Base Price: $110.25 |
| 11 |
649-04020-0638 |
Handlebars Price: $224.49 |
| 12 |
720-04083 |
Handlebars Grip Price: $12.95 |
| 13 |
1918111 |
SCREW-CARRIAGE Not Available Price: |
| 14 |
1186389 |
Hex Nut, 1/4-20 Price: $3.05 |
| 15 |
1909286P |
Throttle Control & Cable, 66" Price: $68.40 |
| 16 |
725-0157 |
Plastic Tie Price: $3.46 |
| 17 |
GW-9219 |
Wire Harness Retainer Plug Price: $9.09 |
| 18 |
725-04367 |
Handlebar Wire Harness Assembly Price: $53.03 |
| 19 |
625-04097 |
Switch Assembly Price: $63.95 |
| 20 |
710-0779A |
Pan Head Screw, #10-16 x 1/2 Price: $3.85 |
| 21 |
1964 |
SCREW:10-32X.5 This part replaces GW-9733. Price: $3.89 |
| 22 |
786-04003-0638 |
Operator Presence Control Lever Price: $26.69 |
| 23 |
GW-9199 |
Pivot Pin Price: $5.59 |
| 24 |
GW-9514 |
Retaining Ring Price: $6.03 |
| 25 |
732-04864A |
Return Spring Price: $6.03 |
| 26 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 27 |
936-0119 |
Washer, 5/16 Price: $4.29 |
| 28 |
710-0805A |
Hex Head Screw, 5/16-18 x 1.5 Price: $3.75 |
