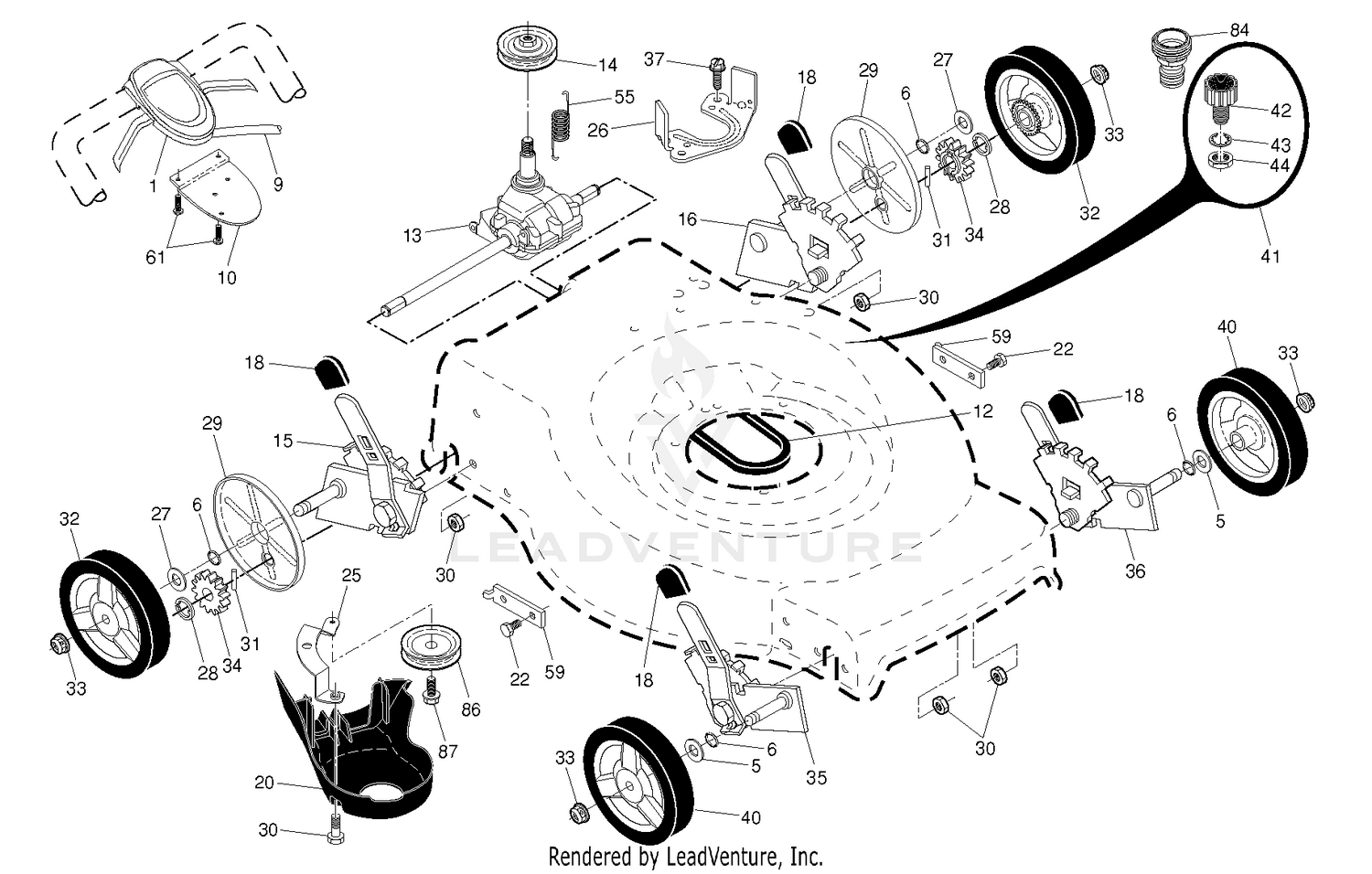

| Ref | Part Number | Description |
|---|
| 1 |
589818808 |
CONTROL.DR.AW2.22+.BLK.GEN This part replaces 532430995. Price: $39.99 |
| 1 |
94-3132 |
SCREW-HHF Price: $1.17 |
| 2 |
94-3130 |
SCREW-HH Price: $0.57 |
| 3 |
94-3125 |
DISCONTINUED Price: Call Us |
| 4 |
94-3129 |
PLUG Price: $1.40 |
| 5 |
94-3126 |
DISCONTINUED Price: Call Us |
| 6 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 6 |
94-3133 |
NUT-W/WASHER Price: $1.04 |
| 7 |
94-3127 |
DISCONTINUED Price: Call Us |
| 8 |
94-3134 |
NUT Price: $4.71 |
| 9 |
532431650 |
CABLE.CONTROL.22RGD.GEN2 Price: $37.99 |
| 9 |
94-3128 |
CASE-TIMING, RIGHT Price: $90.91 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 12 |
580364611 |
BELT V3L 35.42, CLUTCHING COVE This part replaces 532406557. Price: $8.99 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER Price: $129.99 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 22 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 25 |
581313802 |
BRACKET.DRIVE.COVER.RGD. Price: $9.99 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 27 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $5.99 |
| 30 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
581685101 |
WHEEL.8X1.75.3SPK.RAD3.GREY Price: $24.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 40 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 41 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 42 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 43 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 44 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 55 |
581351301 |
SPRING.RETURN.AUTO. Price: $4.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 86 |
587969201 |
PULLEY.RWD.IDLER.DBL SEAL This part replaces 580364301. Price: $12.99 |
| 87 |
581127601 |
SCREW Price: $6.99 |
