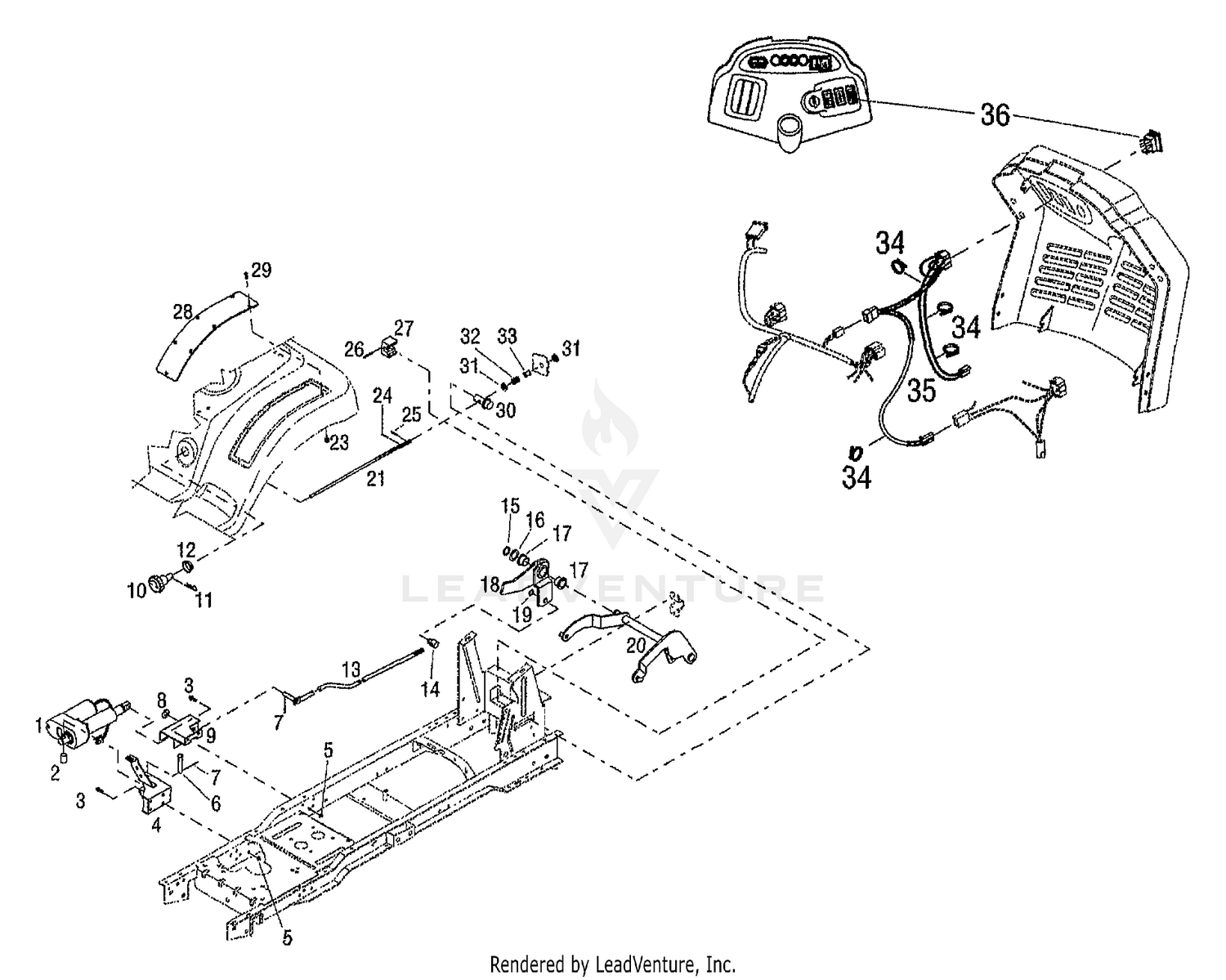

| Ref | Part Number | Description |
|---|
| 1 |
1771678 |
ACTUATOR Price: Call Us |
| 2 |
1771694 |
SPACER Price: Call Us |
| 3 |
1100044 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 4 |
1770688001 |
SUPPORT FRONT (BLACK) Not Available Price: |
| 5 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 6 |
1706621 |
CLEVIS PIN .5X2.75 Not Available Price: |
| 7 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 8 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 9 |
1771799001 |
SUPPORT-REAR Price: Call Us |
| 10 |
1765485 |
KNOB-HEIGHT ADJUST Not Available Price: |
| 11 |
1817091 |
HITCH PIN Not Available Price: |
| 12 |
1766346 |
GROMMET Not Available Price: |
| 13 |
1772978 |
ROD-LIFT Price: Call Us |
| 14 |
1770696 |
BLOCK-PIVOT Price: Call Us |
| 15 |
1185689 |
RETAINING RING EXT Not Available Price: |
| 16 |
1185816 |
WASHER-SPEC Price: $3.15 |
| 17 |
N/A |
N/A |
| 18 |
1773025 |
ASSM-PIVOT ARM Price: Call Us |
| 19 |
1777567 |
RETAINING E-RING Price: Call Us |
| 20 |
1772970001 |
ASSM-LIFT Price: Call Us |
| 21 |
1773133 |
SCREW-HT A Not Available Price: |
| 23 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. This part replaces 1817146. Price: $3.38 |
| 24 |
714-0474 |
Cotter Pin This part replaces 1100349. Price: $4.08 |
| 25 |
915-0249 |
Roll Pin This part replaces 1187961. Price: $5.94 |
| 26 |
1185376 |
PIN-DRIVE Not Available Price: |
| 27 |
1766259 |
COLLAR-HEI Not Available Price: |
| 28 |
1773064 |
COVER Price: Call Us |
| 29 |
710-0946 |
SCREW 1/4-20 X .625 This part replaces 1772882. Price: $3.24 |
| 30 |
1766257 |
BLOCK-HEIG Not Available Price: |
| 31 |
1738490 |
FLAT WASHER SPECIA Not Available Price: |
| 32 |
1721492 |
SPRING Not Available Price: |
| 33 |
1715716 |
BUSHING-.5X.21 NYLON FLNG Not Available Price: |
| 35 |
1771681 |
HARNESS-ACTUATOR Price: Call Us |
