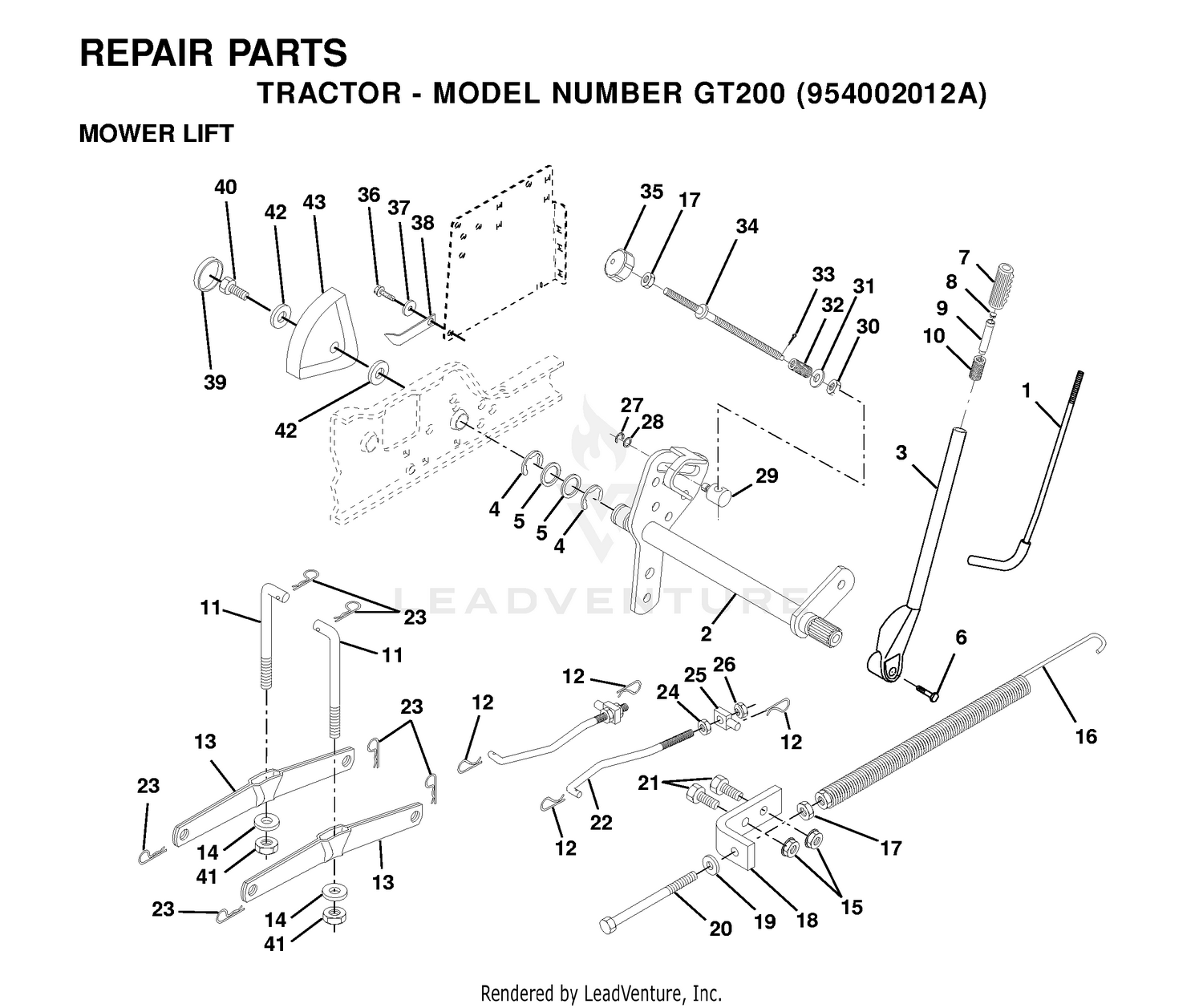

MOWER LIFT / DECK LIFT

MOWER LIFT / DECK LIFT

Parts (79)

RefPart NumberDescription
1 127-3071 WATER PUMP ASM Price: $827.54
1 532121006 LEVER ROD LT Price: $24.99
2 532192468 KIT.SHAFT.ASM.LIFT.RH.VGT This part replaces 532145542. Price: $126.99
3 125-6998 GASKET Price: $12.33
3 532123096 LIFT LEVER This part replaces 532121002. Price: $71.83
4 125-6999 PLATE Price: $58.91
4 812000022 E-RING Price: $3.99
5 819292016 Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99
6 874930624 Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99
7 532125631 GRIP HANDLE Price: $6.99
8 532125925 PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99
9 127-3017 JOINT Price: $71.31
9 532125925 PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99
10 125-7123 PLUG Price: $9.86
10 532002876 SPRING This part replaces 532124874. Price: $3.99
11 127-3175 PLUG Price: $2.87
11 532145543 LINK ASSY This part replaces 532146704. Price: $17.99
12 125-7195 PLUG Price: $2.71
12 532003146 SPRING RETAINER This part replaces 532124660. Price: $2.99
13 125-7234 SCREW Price: $2.32
13 531165801 SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99
14 125-7047 GASKET Price: $5.13
14 532169865 BEARING.PIVOT.LIFT This part replaces 532140302. Price: $5.99
15 125-6986 JOINT Price: $24.66
15 596322601 Nuts This part replaces 873680600. Price: $2.99
16 125-7048 O-RING Price: $2.87
16 532123994 SPRING This part replaces 532124687. Price: $57.46
17 125-6978 GASKET Price: $2.00
17 873220600 NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99
18 125-7192 GASKET Price: $1.14
18 532143363 BRACKET Price: $3.99
19 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
19 93-0362 BOLT Price: $3.89
20 125-7214 BOLT Price: $3.77
20 532005328 BOLT Price: $2.99
21 125-7219 BOLT Price: $4.58
21 596564401 Bolts This part replaces 874760616. Price: $3.99
22 125-7222 BOLT Price: $4.99
22 532127218 FRONT LINK Price: $14.99
23 125-7039 V-PULLEY Price: $23.56
23 532124670 RETAINER-SPRNG RB Price: $5.99
24 127-2998 V-BELT Price: $20.88
25 125-7206 BOLT Price: $1.97
25 532175689 TRUNNION This part replaces 532130171. Price: $3.99
26 125-7029 THERMOSTAT Price: $56.77
26 596135601 GSPW NUTS This part replaces 873800800. Price: $3.99
27 125-7026 GASKET Price: $2.90
27 812000037 Ring, Klip #T5304-37 Price: $4.99
28 125-7034 COVER Price: $78.09
28 819151216 Washer 15/32 x 3/4 x 16 Gauge Price: $2.45
29 125-7110 GASKET Price: $3.76
29 532110810 TRUNION LT Price: $17.99
30 125-7594 BOLT Price: $3.00
30 532110807 NUT T Price: $3.99
31 125-6953 PLUG Price: $7.59
31 819131016 WASHER Price: $2.99
32 125-7124 SENSOR-THERMOSTAT, CW Price: $96.15
32 532137150 SPRING.COMP.INF.H Price: $4.99
33 125-6979 GASKET Price: $2.55
33 596917601 Pins This part replaces 876020308. Price: $1.99
34 125-7176 WASHER-SEAL Price: $7.31
34 532137167 ROD.LIFT.ADJUSTABLE Price: $5.99
35 127-3017 JOINT Price: $71.31
35 532138057 KNOB INF 3/8-16 Price: $6.99
36 127-3072 WATER IN PIPE ASM Price: $51.67
36 534200501 BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99
37 532120529 WASHER T Price: $2.99
38 127-3020 CLIP-HOSE Price: $2.92
38 532123933 HEIGHT INDICATOR PNTR This part replaces 532138346. Price: $3.99
39 532123935 PLUG,HOLE Price: $4.99
40 127-3115 WATER OUT PIPE ASM Price: $21.26
40 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99
41 127-3020 CLIP-HOSE Price: $2.92
41 873540600 NUT CROWNLOCK 3/8-24 Price: $3.99
42 819112410 WASHER Price: $3.99
43 127-3116 WATER OUT PIPE ASM Price: $47.67
43 532123934 HEIGHT INDICATOR Price: $2.99
44 127-3020 CLIP-HOSE Price: $2.92
47 127-3117 PIPE-OUT, CW Price: Call Us
