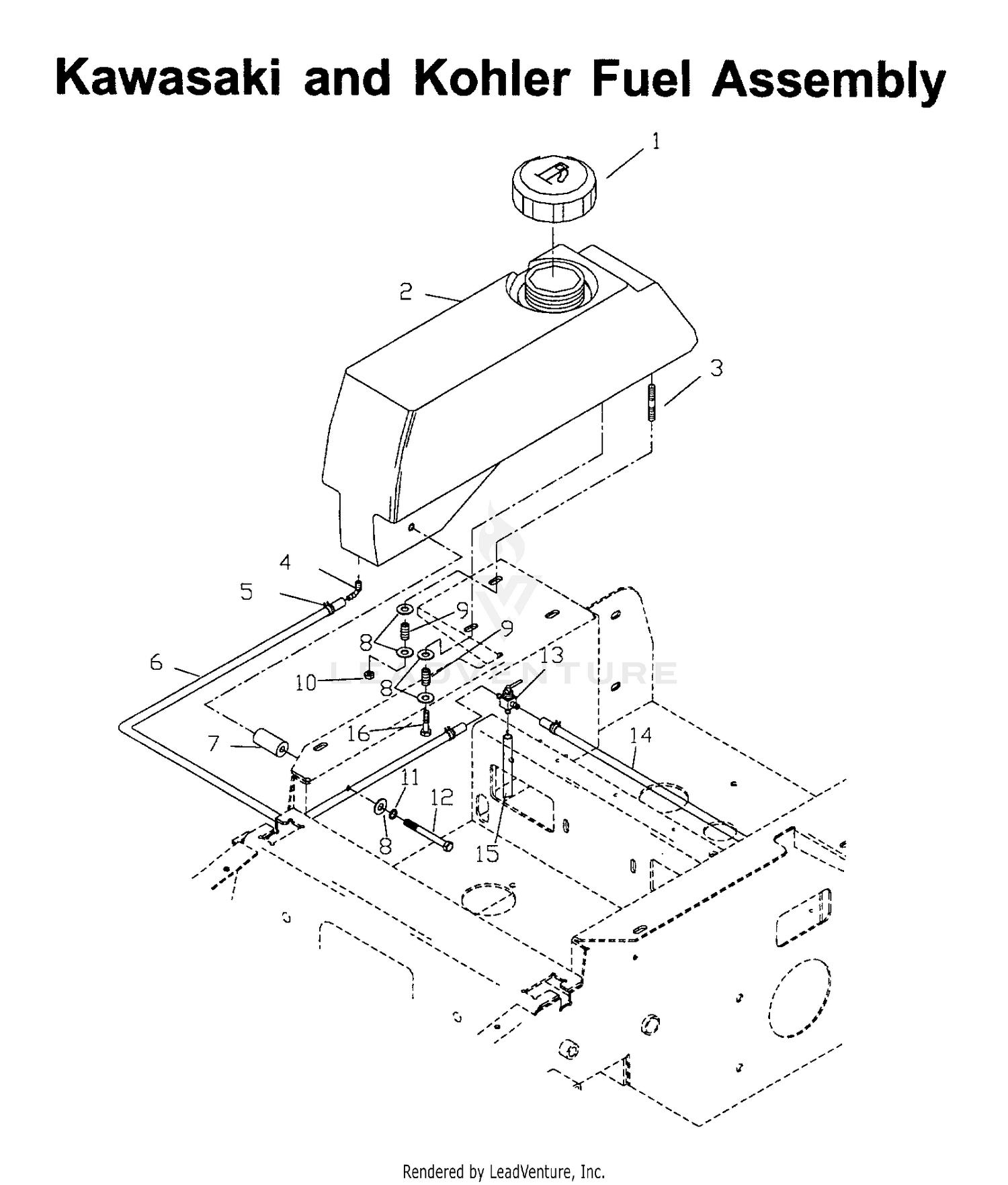

FUEL SYSTEM
Parts (79)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7246 | FIE ASM Price: $4,354.76 |
| 1 | 539130394 | FUEL CAP, GENERIC This part replaces 539106188. Price: $27.99 |
| 2 | 539104410 | FUEL TANK RT Price: $279.99 |
| 3 | 539102502 | STUD, 5/16C Price: $8.99 |
| 4 | 539102650 | HOSE BARB 90 DEGREE Price: $4.99 |
| 5 | 539912222 | HOSE CLAMP Price: $2.99 |
| 6 | 539922091 | FUEL LINE Price: $3.99 |
| 7 | 539104897 | TANK SPACER Price: $7.99 |
| 9 | 539102845 | SPRING Price: $2.99 |
| 10 | 125-6991 | COVER Price: $8.10 |
| 10 | 596583702 | Nuts This part replaces 539990717. Price: $2.99 |
| 11 | 125-6992 | BOLT Price: $2.32 |
| 11 | 596238801 | WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 12 | 125-6932 | KEY Price: $2.16 |
| 12 | 596435501 | Bolts This part replaces 539102335. Price: $3.99 |
| 13 | 539102679 | FUEL VALVE Price: $49.99 |
| 14 | 539105280 | HOSE 35" Price: $11.99 |
| 15 | 125-7135 | FLANGE Price: $138.75 |
| 15 | 539105382 | FUEL LINE 30" This part replaces 539105281. Price: $11.99 |
| 16 | 596580801 | Bolts This part replaces 539990209. Price: $2.99 |
| 39 | 125-7156 | STOPPER Price: $4.35 |
| 40 | 125-7154 | O-RING Price: $3.54 |
| 41 | 125-7154 | O-RING Price: $3.54 |
| 42 | 125-7092 | VALVE ASM Price: $132.31 |
| 51 | 125-7155 | SPRING Price: $4.35 |
| 59 | 125-7157 | PLUG Price: $10.27 |
| 60 | 125-6933 | PLUG Price: $26.22 |
| 61 | 125-7136 | GASKET Price: $4.06 |
| 62 | 125-7136 | GASKET Price: $4.06 |
| 63 | 125-7151 | PLUG Price: $2.99 |
| 64 | 125-7137 | LIFTER Price: $15.40 |
| 65 | 125-7102 | TIMER SET Price: $86.43 |
| 66 | 125-7103 | TIMER ASM Price: $79.04 |
| 69 | 125-7145 | O-RING Price: $6.82 |
| 70 | 125-6934 | RING Price: $3.44 |
| 71 | 125-6935 | O-RING Price: $6.82 |
| 72 | 125-7202 | O-RING Price: $7.02 |
| 73 | 125-7203 | RING-BACK UP Price: $6.25 |
| 74 | 125-7138 | GASKET Price: $24.57 |
| 75 | 125-6940 | SPRING Price: $5.01 |
| 76 | 125-6941 | CAP Price: $11.15 |
| 78 | 125-6942 | SOLENOID VALVE ASM Price: $107.69 |
| 81 | 125-7146 | GASKET Price: $2.49 |
| 101 | 125-7159 | PISTON Price: $17.04 |
| 102 | 125-7140 | SPRING Price: $10.85 |
| 103 | 125-7160 | PLUG Price: $7.85 |
| 105 | 125-7148 | PLUG Price: $3.26 |
| 106 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 107 | 125-7591 | WASHER-SEAL Price: $5.94 |
| 108 | 125-7147 | BOLT Price: $2.32 |
| 111 | 125-7142 | O-RING Price: $3.95 |
| 112 | 125-7143 | O-RING Price: $2.79 |
| 113 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 114 | 125-7179 | WASHER-SPRING Price: $2.32 |
| 115 | 125-7181 | PIN-PARALLEL Price: $2.93 |
| 116 | 125-7183 | PIN-SPRING Price: $2.93 |
| 118 | 93-0400 | O-RING Price: $4.45 |
| 119 | 125-7201 | O-RING Price: $5.41 |
| 120 | 125-7202 | O-RING Price: $7.02 |
| 121 | 125-7205 | BOLT Price: $2.67 |
| 123 | 125-7233 | BOLT Price: $5.80 |
| 124 | 125-7236 | NUT Price: $3.48 |
| 127 | 125-7125 | HARNESS ASM Price: $25.29 |
| 128 | 125-7126 | HARNESS Price: $22.48 |
| 129 | 125-7033 | CAP Price: $4.88 |
| 130 | 125-7158 | JOINT Price: $10.82 |
| 131 | 125-7127 | BRACKET Price: $3.81 |
| 132 | 125-7139 | JOINT Price: $13.23 |
| 134 | 125-7141 | FEED PUMP ASM Price: $303.99 |
| 135 | 125-7144 | O-RING Price: $6.77 |
| 136 | 125-6945 | JOINT Price: $19.46 |
| 137 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 138 | 125-7178 | WASHER-SPRING Price: $4.09 |
| 139 | 125-7207 | BOLT Price: $2.32 |
| 140 | 125-7235 | NUT Price: $3.48 |
| 141 | 125-7238 | PLUG Price: $2.71 |
| 143 | 125-7032 | RETAINER Price: $109.88 |
| 539104409 | 539104409 | LEFT TANK W/CUP HOLDER Price: $249.99 |
| 539104980 | 539104980 | FUEL LINE 16" Price: $6.99 |
