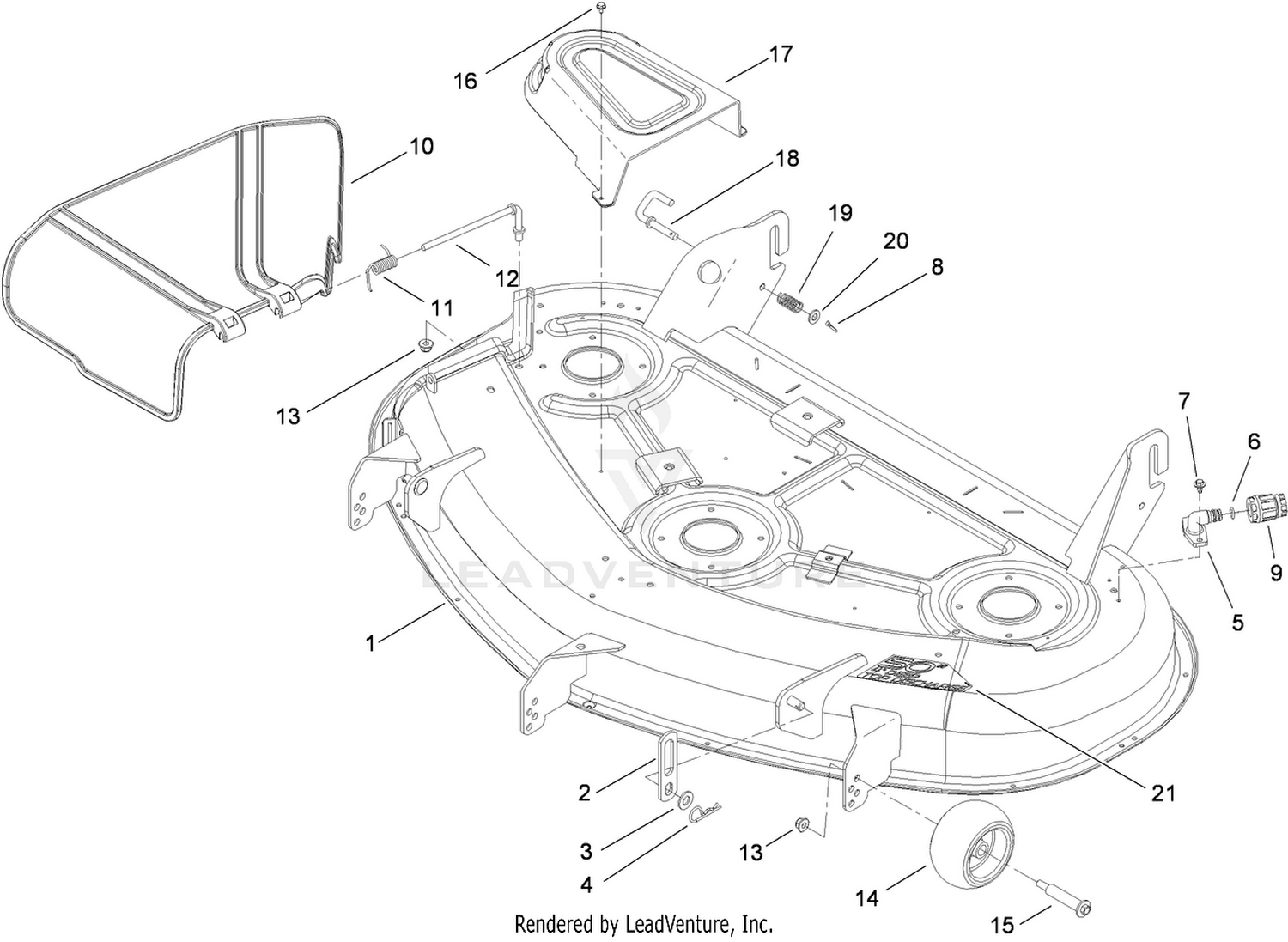

| Ref | Part Number | Description |
|---|
| 2 |
115-2622 |
LINK-LIFT Price: $5.45 |
| 3 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 4 |
1-806005 |
PIN-COTTER Price: $2.39 |
| 5 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 6 |
46-6290 |
O-RING Price: $2.59 |
| 7 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 8 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 9 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 10 |
108-7895 |
DEFLECTOR Price: $43.35 |
| 11 |
110-6694 |
SPRING-TORSION Price: $4.12 |
| 12 |
112-3950 |
ROD-PIVOT Price: $12.49 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 15 |
112-3977 |
BOLT-SHOULDER Price: $7.37 |
| 16 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 17 |
108-7890 |
COVER-BELT Price: $13.33 |
| 18 |
115-2470 |
PIN-LATCH Price: $10.39 |
| 19 |
101853 |
SPRING-COMPRESSION Price: $0.88 |
| 20 |
3256-24 |
WASHER-FLAT Price: $0.28 |
