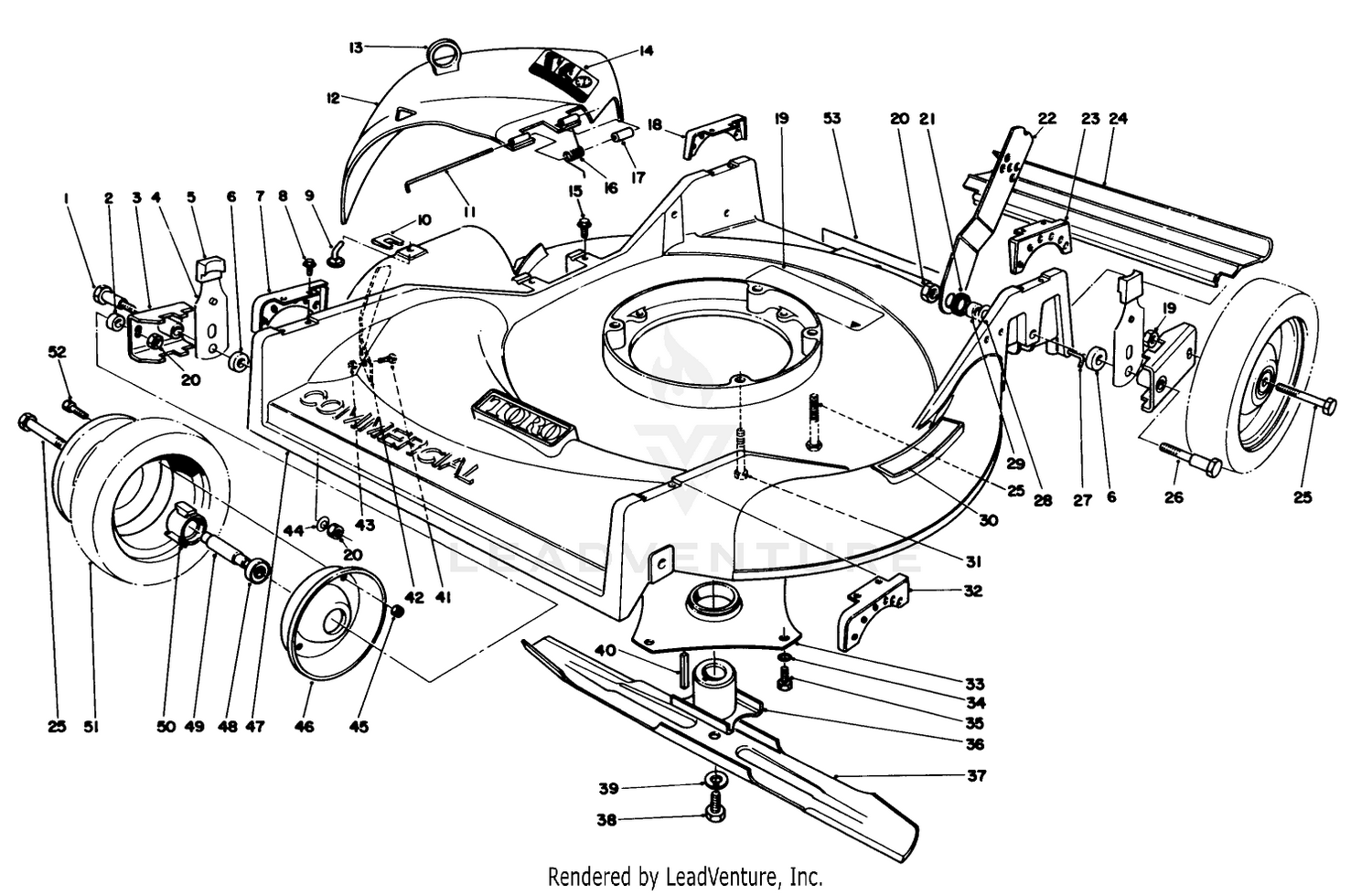

| Ref | Part Number | Description |
|---|
| 1 |
49-9180 |
PIVOT SCREW Price: $8.74 |
| 2 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 3 |
49-9160 |
PIVOT ARM Price: $62.99 |
| 4 |
49-8800 |
SPRING ARM ASM-FRONT Price: $37.99 |
| 5 |
25-7740 |
KNOB-ARM Price: $4.59 |
| 6 |
53-7930 |
SPACER-PIVOT Price: $7.99 |
| 7 |
52-2510 |
FRT RIGHT QUAD Price: $66.11 |
| 8 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 9 |
28-3260 |
BAG CHUTE PIN Price: $5.54 |
| 10 |
28-3250 |
BAG CHUTE CLIP PIN Price: $5.42 |
| 11 |
52-2570 |
DISCONTINUED Price: Call Us |
| 12 |
12-6629 |
DEFLECTOR/DECAL ASM Price: $85.49 |
| 13 |
28-1430 |
LIFT LOOP Price: $3.43 |
| 14 |
93-6667 |
DECAL-WARNING This part replaces 62-3860. Price: $11.47 |
| 15 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 16 |
52-2560 |
DEFLECTOR SPRING Price: $8.80 |
| 17 |
28-3270 |
DISCONTINUED Price: Call Us |
| 18 |
52-2530 |
DISCONTINUED Price: Call Us |
| 19 |
93-6657 |
DECAL-DANGER This part replaces 62-3870. Price: $22.12 |
| 20 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
27-6510 |
HANDLE LATCH SPACER Price: $4.19 |
| 22 |
27-7071 |
DISCONTINUED Price: Call Us |
| 23 |
52-2540 |
DISCONTINUED Price: Call Us |
| 24 |
117-5298 |
SHIELD-TRAILING This part replaces 52-2640. Price: $57.41 |
| 25 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
52-2260 |
REAR PIVOT SCREW Price: $19.99 |
| 27 |
33-3201 |
SHIELD ROD Price: $9.18 |
| 28 |
3290-340 |
WASHER-BELLEVILLE Price: $7.19 |
| 29 |
52-2360 |
HANDLE LATCH SPACER Price: $7.86 |
| 30 |
62-3950 |
DECAL - STEP PAD INT'L Price: $2.50 |
| 31 |
323-11 |
SCREW-HH Price: $1.08 |
| 32 |
52-2520 |
DISCONTINUED Price: Call Us |
| 33 |
52-2500 |
CRNKSHFT PROTECT ASM Price: $102.99 |
| 34 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 35 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 36 |
52-2170-03 |
RETAINER-BLADE This part replaces 52-2170. Price: $71.99 |
| 37 |
8-5230-03 |
BLADE-21" This part replaces 8-5230. Price: $31.99 |
| 38 |
26-0671 |
SCREW-HH Price: $7.99 |
| 39 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 40 |
27-8590 |
KEY-SQUARE Price: $5.59 |
| 41 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 42 |
52-2650 |
DISCONTINUED Price: Call Us |
| 43 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 44 |
3290-455 |
WASHER-BELLEVILLE Price: $2.71 |
| 45 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 46 |
121-1365-06 |
RIM-HALF, WHEEL This part replaces 53-7780. Price: $16.99 |
| 47 |
12-6669 |
DISCONTINUED Price: Call Us |
| 48 |
52-2450 |
BEARING-WHEEL Price: $17.99 |
| 49 |
52-2440 |
SPACER-BEARING Price: $9.99 |
| 50 |
52-2410 |
HUB-BEARING Price: $31.99 |
| 51 |
53-7740 |
TIRE Price: $37.99 |
| 52 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 53 |
40-2850 |
DISCONTINUED Price: Call Us |
