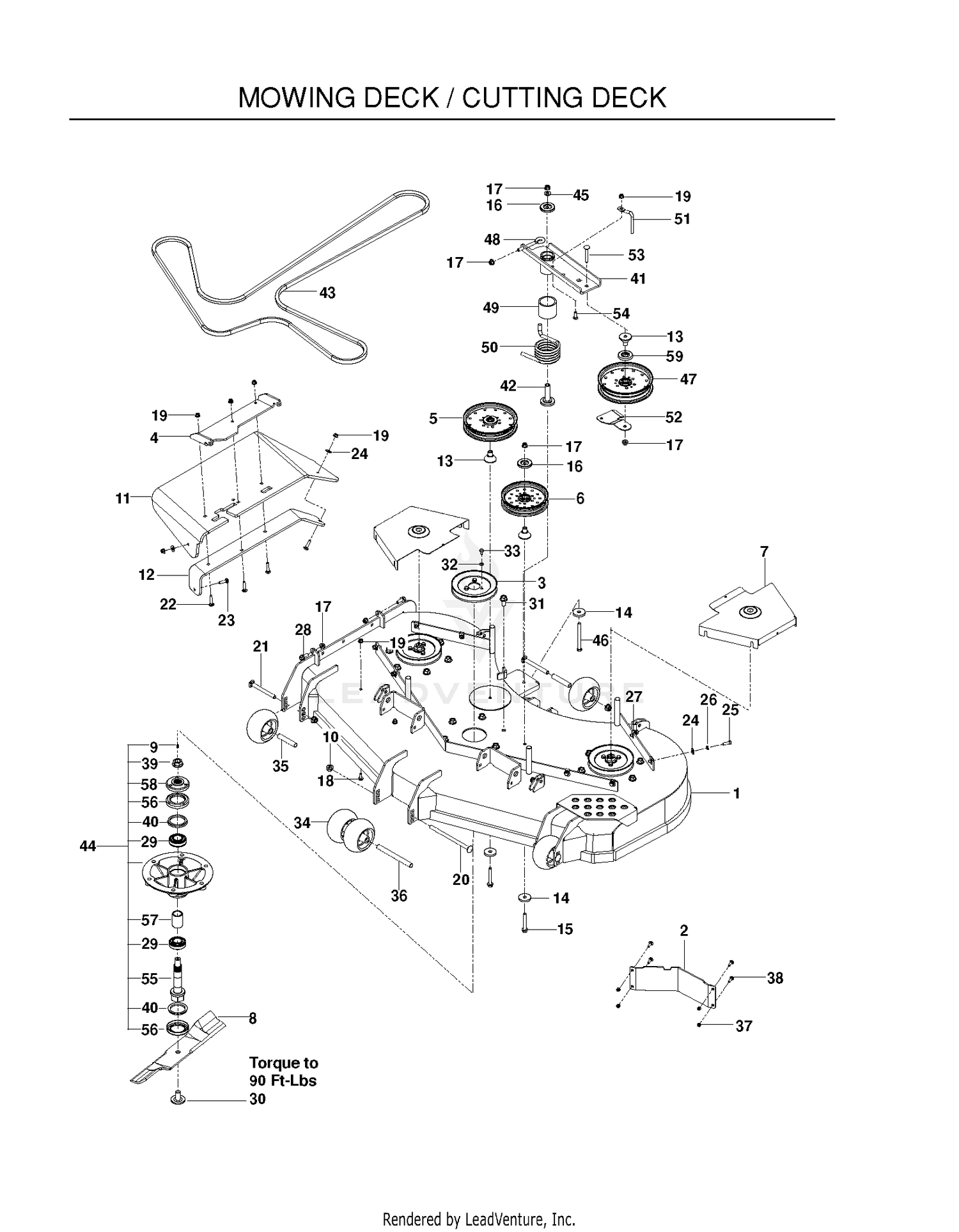

| Ref | Part Number | Description |
|---|
| 1 |
12-5869 |
DISCONTINUED Price: Call Us |
| 2 |
44-9040 |
REAR HOOD FOAM STRIP Price: $79.96 |
| 2 |
510437502 |
BAFFLE, DIVERTER 54"/60" LH Price: $44.99 |
| 3 |
44-8830 |
DISCONTINUED Price: Call Us |
| 3 |
539130646 |
PULLEY - 6.57 Price: $22.99 |
| 4 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
574197002 |
BRKT - CHUTE MTG BLACK Price: $59.99 |
| 5 |
32140-16 |
DISCONTINUED Price: Call Us |
| 5 |
525598202 |
PULLEYS This part replaces 525598201. Price: $39.99 |
| 6 |
597087101 |
GSPW PULLEYS This part replaces 510019601. Price: $39.99 |
| 6 |
92-1584 |
GM 220 DECAL Price: $56.74 |
| 7 |
32128-19 |
NUT-HF Price: $0.99 |
| 7 |
510131202 |
SHIELD,BELT, 60" ORANGE Price: $59.99 |
| 8 |
3290-211 |
WASHER-SPRING Price: $4.89 |
| 8 |
539105711 |
BLADE - HEAVY DUTY 21" Price: $32.99 |
| 9 |
27-6800-01 |
DISCONTINUED This part replaces 27-6800. Price: Call Us |
| 9 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 10 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 10 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 11 |
27-4830-01 |
DISCONTINUED This part replaces 27-4830. Price: Call Us |
| 11 |
525485801 |
CHUTE, DISCHARGE 48-52 Price: $74.99 |
| 12 |
3211-27 |
DISCONTINUED Price: Call Us |
| 12 |
525486002 |
BRKT, CHUTE SUPPORT BLACK Price: $69.99 |
| 13 |
27-6810-01 |
HOOD TIE This part replaces 27-6810. Price: $15.07 |
| 13 |
510263701 |
BEARING, IDLER ARM Price: $5.99 |
| 14 |
32128-33 |
NUT-HF Price: $0.25 |
| 14 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 15 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 15 |
539131781 |
HHFS 3/8-16 X 2 3/4 Price: $4.99 |
| 16 |
19-1470 |
SCREW-SHOULDER Price: $3.49 |
| 16 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 17 |
3296-5 |
NUT-HEX Price: $3.09 |
| 17 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 18 |
44-9190 |
DISCONTINUED Price: Call Us |
| 18 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 19 |
249-40 |
KEEPER Price: $9.77 |
| 19 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 20 |
46-3320 |
DISCONTINUED Price: Call Us |
| 20 |
510022401 |
RHSNB 1/2-13 X 8 GR5 ZD Price: $22.99 |
| 21 |
3290-54 |
RIVET-BLIND This part replaces 3269-16. Price: $0.25 |
| 21 |
510022302 |
Screws This part replaces 510022301. Price: $5.99 |
| 22 |
44-9030 |
DISCONTINUED Price: Call Us |
| 22 |
596030801 |
Bolts This part replaces 539102933. Price: $3.99 |
| 23 |
38-4070 |
HOOD TRIM Price: $11.60 |
| 23 |
596671401 |
Bolts This part replaces 539100472. Price: $3.99 |
| 24 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 25 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 26 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 27 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 28 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 29 |
539130638 |
BEARING - 206KRR8 Price: $27.99 |
| 30 |
539119007 |
BLADE BOLT/WASHER Price: $8.99 |
| 31 |
574210602 |
Screws This part replaces 574210601. Price: $2.99 |
| 32 |
596565001 |
Washers This part replaces 539109600. Price: $2.99 |
| 33 |
596433301 |
Bolts This part replaces 539130315. Price: $2.99 |
| 34 |
574169601 |
ROLLER, GAUGE .635 BORN Price: $14.99 |
| 35 |
574196402 |
Tubes This part replaces 574196401. Price: $5.99 |
| 36 |
574196502 |
Tubes This part replaces 574196501. Price: $17.99 |
| 37 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 38 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539115620. Price: $2.99 |
| 39 |
598490501 |
Nuts This part replaces 539130653. Price: $7.99 |
| 40 |
539130639 |
V-RING, 55MM Price: $5.99 |
| 41 |
574722201 |
ASSY, IDLER ARM, PZ Price: $99.99 |
| 42 |
522729701 |
BEARING, IDLER PIVOT Price: $7.99 |
| 43 |
522829601 |
BELT, "B", 176 Price: $119.99 |
| 44 |
580943306 |
SPINDLE.ASSY.IRON This part replaces 525836401. Price: $279.99 |
| 45 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 46 |
596435401 |
Bolts This part replaces 539101686. Price: $1.99 |
| 47 |
510015102 |
Pulleys This part replaces 510015101. Price: $49.99 |
| 48 |
574202002 |
Hardware This part replaces 574202001. Price: $4.99 |
| 49 |
525465601 |
SPACER, IDLER PIVOT Price: $8.99 |
| 50 |
525310901 |
SPRING, TORSION, IDLER Price: $84.99 |
| 51 |
574262202 |
Belt Keepers This part replaces 574262201. Price: $5.99 |
| 52 |
574262102 |
BELT.GUIDE.BLACK Price: $29.99 |
| 53 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
| 54 |
596435701 |
Bolts This part replaces 539107271. Price: $2.99 |
| 55 |
580943306 |
SPINDLE.ASSY.IRON This part replaces 525836001. Price: $279.99 |
| 56 |
539130643 |
CUP - DEBRIS Price: $6.99 |
| 57 |
539130641 |
SPACER - BEARING Price: $10.99 |
| 58 |
539130637 |
HUB - PULLEY Price: $29.99 |
| 59 |
596840301 |
Shields This part replaces 510262201. Price: $19.99 |
