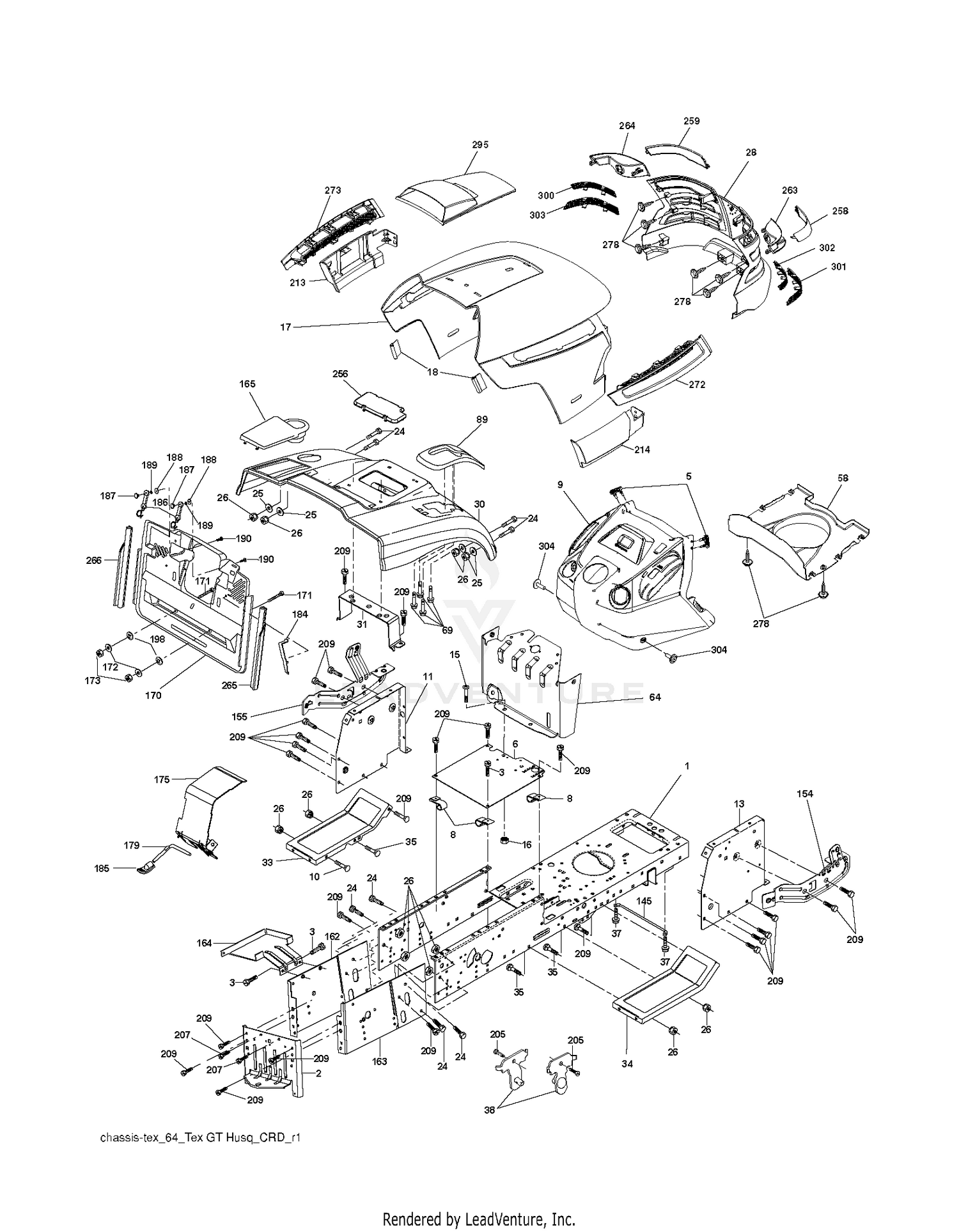

| Ref | Part Number | Description |
|---|
| 1 |
120-8086 |
FRONT FRAME ASM Price: $5,122.88 |
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 2 |
120-8007-03 |
FRAME-REAR Price: $3,094.30 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 3 |
108-4018 |
ROPS ASM Price: $1,001.27 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 5 |
104-5584-0P |
PLATE-REINFORCEMENT,ROPS This part replaces 104-5584-03. Price: $36.27 |
| 5 |
532407590 |
BUMPER DASH Price: $3.99 |
| 6 |
325-20 |
SCREW-HH Price: $6.29 |
| 6 |
583133601 |
SADDLE.FLAT.LT/YT/CRD.2003 This part replaces 532184419. Price: $12.99 |
| 7 |
32128-49 |
NUT-HHF Price: $1.04 |
| 8 |
104-5516-0P |
SUPPORT-TUBE This part replaces 104-5516-01. Price: $9.23 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 9 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 9 |
532408911 |
NEEDS DESCRIPTION Price: Call Us |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
119-0006 |
ACCESS PLATE ASM Price: $170.08 |
| 11 |
532167203 |
PANEL DASH LH Price: $19.99 |
| 12 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 13 |
125-4614 |
TREAD-FOOT, CENTER Price: $65.72 |
| 13 |
532178298 |
PANEL DASH RH Price: $19.99 |
| 14 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 16 |
72-3560 |
DECAL Price: $12.52 |
| 17 |
106-6754 |
DECAL-DANGER Price: $9.57 |
| 17 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 18 |
105-9194 |
PLUG Price: $9.48 |
| 18 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM Price: $129.99 |
| 30 |
532197376 |
CONSOLE.CRD.AUTO.GRY Price: $8.99 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 58 |
532198514 |
AIR.DUCT.TEXGT.HUSQ.31 Price: $24.99 |
| 64 |
532199395 |
Price: Call Us |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 89 |
532441574 |
CONSOLE.CRD.AUTO.GRY This part replaces 532197377. Price: $8.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 154 |
532408690 |
Price: Call Us |
| 155 |
532408691 |
Price: Call Us |
| 162 |
583100801 |
BRKT.EXTEN.CHASSIS.LH.CRD This part replaces 532180382. Price: $48.99 |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
532441516 |
COVER.BATT.CUPHOLDER.CRD This part replaces 532181100. Price: $17.99 |
| 170 |
532199488 |
Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
583707801 |
DOOR.TRAP.FBI.CRD.2004 This part replaces 532188203. Price: $17.99 |
| 179 |
583100601 |
ROD.PIVOT.FBI.CRD This part replaces 532188202. Price: $17.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 213 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 214 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 256 |
532181361 |
COVER FENDER CRD Price: $3.99 |
| 258 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 259 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 263 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 264 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 265 |
583146701 |
SEAL.SIDE.RH.BAGGER.CRD This part replaces 532185704. Price: $17.99 |
| 266 |
583146601 |
SIDE.SEAL.LH.BAGGER.CRD This part replaces 532185703. Price: $17.99 |
| 272 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 273 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 295 |
532400539 |
VENT.ASM.HOOD.TOP.TEX. Price: $17.99 |
| 300 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 301 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 302 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 304 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
