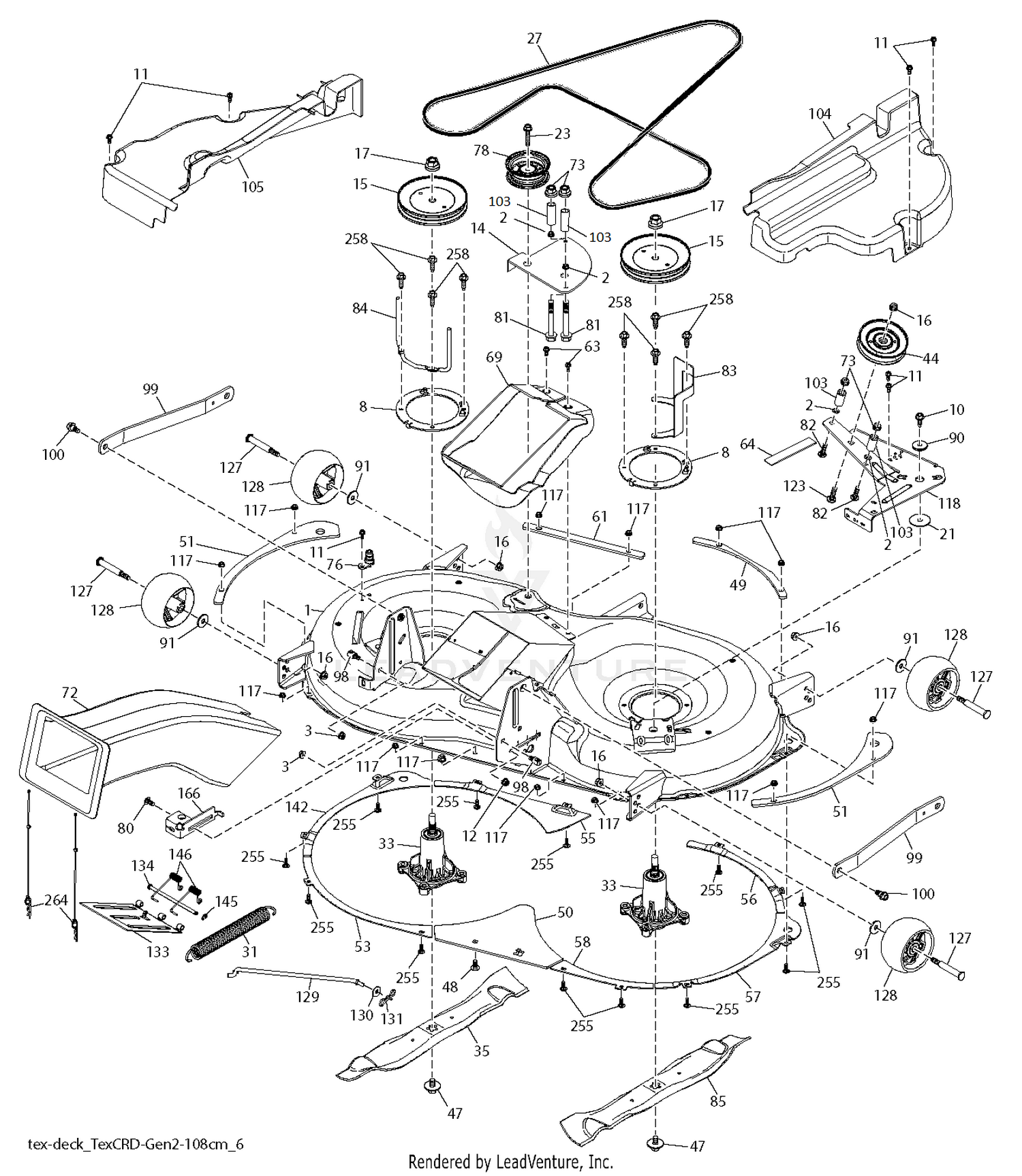

MOWER DECK / CUTTING DECK
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 597959203 | Decks Price: $449.99 |
| 2 | 532423062 | PALNUT 1/4 Price: $2.99 |
| 8 | 595960202 | Plates Price: $27.99 |
| 10 | 817000616 | SCREW 3/8-16X1 Price: $5.99 |
| 11 | 532137729 | SCREW.1/4-20X5/8 Price: $3.99 |
| 12 | 594944401 | NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 14 | 599244002 | MOUNTS Price: $11.99 |
| 15 | 532195945 | PULLEY.MANDREL.5.438.P Price: $12.99 |
| 17 | 596134801 | Nuts Price: $1.00 |
| 21 | 532106513 | WASHER, WEAR LT (1 2) Price: $5.99 |
| 23 | 599972501 | BOLT Price: $2.99 |
| 27 | 594024901 | Belts Price: $54.99 |
| 31 | 582504001 | SPRING.EXTENSION Price: $6.99 |
| 35 | 594024702 | NEEDS DESCRIPTION Price: $27.99 |
| 44 | 532193195 | PULLEY.V.IDLER Price: $49.99 |
| 47 | 532193003 | BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 48 | 596136001 | Bolts Price: $3.99 |
| 49 | 594025102 | Plates Price: $6.99 |
| 50 | 595839602 | Plates Price: $27.99 |
| 51 | 594025002 | Plates Price: $14.99 |
| 53 | 597252502 | Plates Price: $8.99 |
| 55 | 547682401 | PLATE 108CM LH CONTAINMENT KIT This part replaces 597252702. Price: $8.99 |
| 56 | 597252802 | Plates Price: $5.99 |
| 57 | 597252402 | Plates Price: $11.99 |
| 58 | 597252602 | Plates Price: $1.99 |
| 61 | 594025202 | Plates Price: $7.99 |
| 63 | 585517801 | HEX.WASHER.HEAD 1/4-20 X .65 Price: $2.99 |
| 64 | 532425417 | VIBRATION PAD Price: $2.99 |
| 69 | 597252201 | Seals Price: $11.99 |
| 73 | 582478602 | NUT FLG, NYLOCK, 1/4-20 GR G C Price: $1.99 |
| 76 | 532415598 | PORT.WASHOUT Price: $6.99 |
| 78 | 532177968 | PULLEY.IDLER.FLAT Price: $27.99 |
| 80 | 595901601 | GSPW Bolts Price: $2.99 |
| 81 | 529791801 | BOLT Price: $2.99 |
| 82 | 596134001 | BOLT.RDHD.SHRT.NK.1/4-20X1-1/2 Price: $1.99 |
| 83 | 595533302 | Keepers Price: $7.99 |
| 84 | 589676103 | KEEPER 42 MANDREL BELT FOR 6.2 Price: $6.99 |
| 85 | 594024802 | NEEDS DESCRIPTION Price: $27.99 |
| 90 | 532199092 | SPACER.RETAINER Price: $5.99 |
| 91 | 596134901 | GSPH Price: $2.99 |
| 98 | 593824001 | STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 99 | 594928202 | Arms Price: $14.99 |
| 100 | 532196539 | BOLT.SHOULDER Price: $5.99 |
| 103 | 599244102 | SPACERS Price: $5.99 |
| 104 | 594025901 | Covers Price: $32.99 |
| 105 | 594025801 | Covers Price: $32.99 |
| 117 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK Price: $3.99 |
| 118 | 599832502 | ARMS Price: $27.99 |
| 123 | 596136101 | GSPW Bolts Price: $2.99 |
| 127 | 596434404 | Bolts Price: $4.99 |
| 128 | 589527301 | WHEEL.GAUGE.RALLY Price: $8.99 |
| 129 | 583568101 | ROD.SWAY.97&107.CRDI&II Price: $17.99 |
| 130 | 596133201 | Washers Price: $5.99 |
| 131 | 532194208 | PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 133 | 594025502 | Plates Price: $8.99 |
| 134 | 593889501 | Pins Price: $4.99 |
| 142 | 597252302 | Plates Price: $11.99 |
| 145 | 532437988 | E-RING.5/16" Price: $7.99 |
| 146 | 583582001 | SPRING.EZ.MULCH.DOOR Price: $2.99 |
| 166 | 594024602 | Brackets Price: $1.99 |
| 255 | 596238401 | BOLT CUP HEAD SQUARE NECK BOLT Price: $2.99 |
| 258 | 584953901 | BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 264 | 589392902 | Retainers Price: $3.99 |
