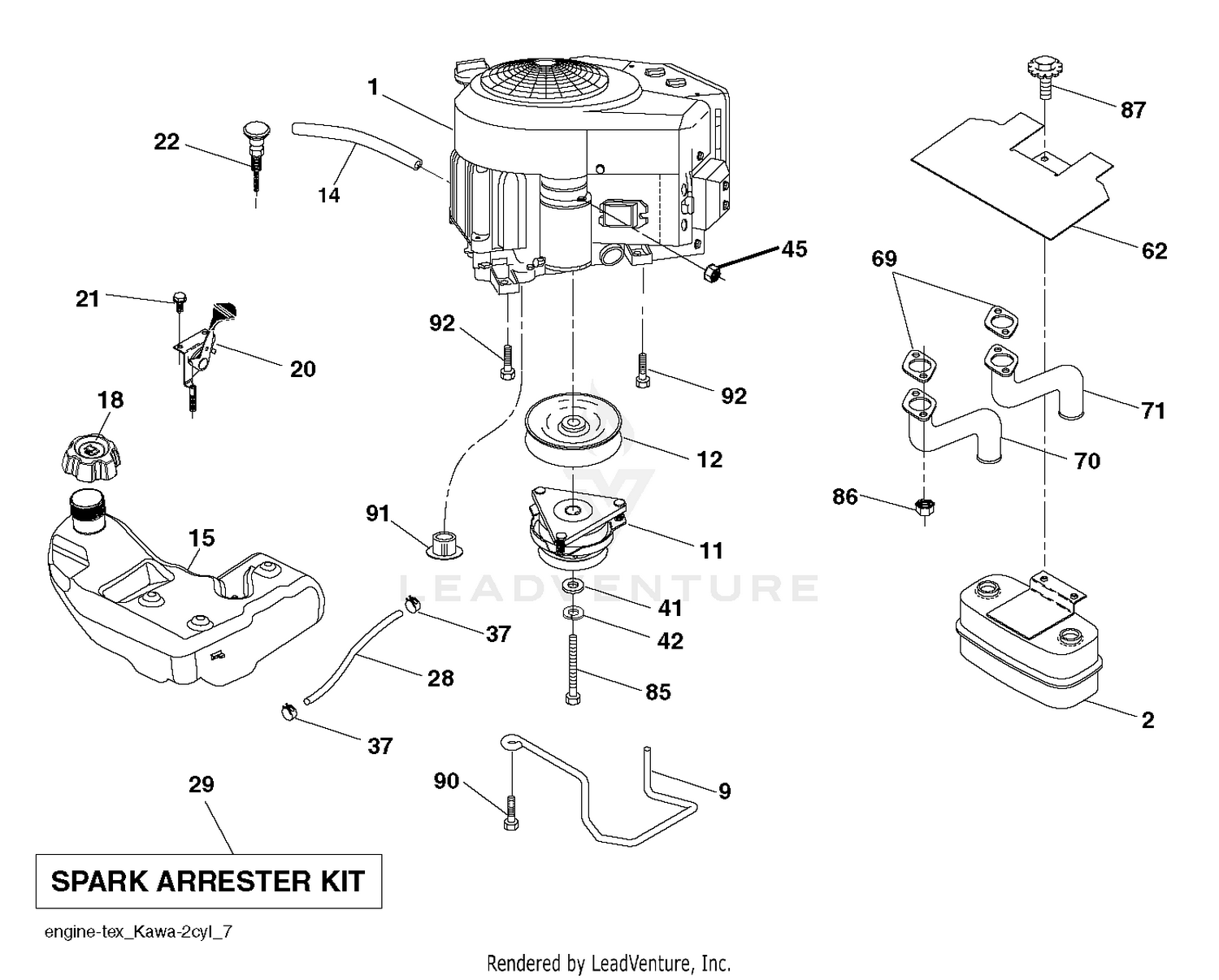

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
130-1364 |
LOWER GASKET KIT Price: $73.14 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532430217. Price: $14.99 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 20 |
98-9637 |
GASKET Price: $3.98 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
131-6554 |
GASKET-CASE, BEARING Price: $7.12 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
112-7037 |
GASKET-COVER, CASE Price: $14.14 |
| 60 |
117-7562 |
GASKET-PUMP, FUEL Price: $2.98 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
98-9632 |
GASKET-PUMP, WATER Price: $7.25 |
| 80 |
99-3454 |
GASKET-PUMP, WATER Price: $12.90 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-9682 |
GASKET Price: $0.95 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 100 |
98-9683 |
GASKET-COVER, SOLENOID Price: $1.92 |
| 110 |
105-3781 |
O-RING Price: $3.47 |
| 120 |
105-3777 |
O-RING Price: $1.72 |
| 130 |
105-3783 |
O-RING Price: $6.33 |
| 140 |
105-3776 |
O-RING Price: $5.77 |
| 150 |
105-3788 |
O-RING Price: $2.90 |
