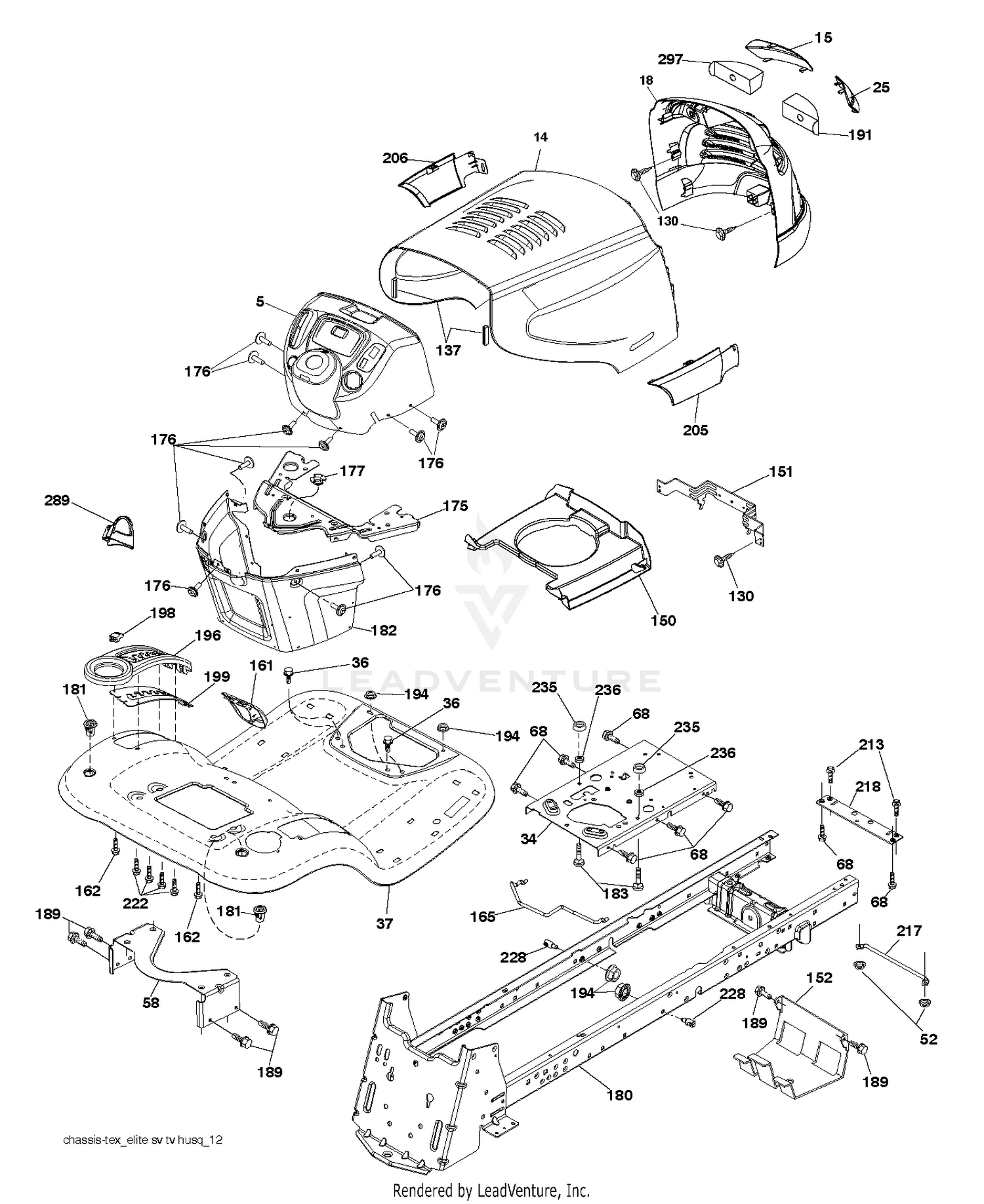

| Ref | Part Number | Description |
|---|
| 1 |
322-9 |
SCREW-HH Price: $3.09 |
| 2 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 3 |
93-9996 |
DRIVESHAFT ASM Price: $1,071.90 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
532436386 |
DASH.UPPER.TEX.ELITE.EL.N/CHK Price: $34.99 |
| 5 |
93-9838-03 |
SHROUD-SHAFT, DRIVE Price: $56.70 |
| 6 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 7 |
68-8560-03 |
BRACKET-GEARBOX Price: $57.56 |
| 8 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 9 |
63-9750 |
MOUNT Price: $18.92 |
| 10 |
63-8410 |
WASHER Price: $1.76 |
| 11 |
32128-21 |
NUT-HF Price: $0.39 |
| 12 |
108-1370 |
GEARBOX REPLACEMENT KIT Price: $862.61 |
| 13 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 14 |
323-4 |
SCREW-HH Price: $1.02 |
| 14 |
532436382 |
HOOD.PNT.ELITE.TVENT.SVENT.SSK Price: $89.99 |
| 15 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 16 |
26-1400 |
PULLEY-DECK This part replaces 26-1400-03. Price: $539.17 |
| 17 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 18 |
532432778 |
GRILLE.ELITE HUSQ.BLACK.DL. Price: $59.99 |
| 18 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS Price: $34.99 |
| 36 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 37 |
532436383 |
FENDER.PNT.TXGT.ERGO.SD FILL Price: $119.99 |
| 52 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
817490508 |
SCREW LT Price: $3.99 |
| 130 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 137 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $3.99 |
| 150 |
532431632 |
AIR DUCT Price: $29.99 |
| 151 |
532407807 |
BRACKET PIVOT Price: $14.99 |
| 152 |
532199535 |
SHIELD.BROWNING.W/TEX Price: $11.99 |
| 161 |
532411879 |
CONSOLE.FUEL.WINDOW.STGT.BLACK Price: $4.99 |
| 162 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $14.99 |
| 175 |
532193243 |
CROSSMEMBER.LT Price: $17.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $6.99 |
| 177 |
532195227 |
BUSHING,STEERING Price: $3.99 |
| 180 |
532195477 |
CHASSIS.GT.SLOPED.DRAWBAR. Price: $129.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. This part replaces 532404796. Price: $2.99 |
| 182 |
532193057 |
DASH.LOWER.LT.CCS Price: $64.99 |
| 183 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD Price: $2.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 191 |
532416500 |
INSERT.REFLECTIVE.RH. Price: $5.99 |
| 194 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 196 |
532411878 |
CONSOLE ASM DECK LIFT BLACK Price: $22.99 |
| 198 |
532441552 |
INDICATOR.DECK.LIFT.RED Price: $11.99 |
| 199 |
532196377 |
PLATE DECK LIFT Price: $14.99 |
| 213 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $8.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $2.99 |
| 222 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 228 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 235 |
532406129 |
SPACER FENDER Price: $2.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 278 |
532196394 |
BRKT.HOOD/MUFF.STEALTH Price: $6.99 |
| 289 |
532432781 |
PLUG CRUISE HOOK PHONE Price: $2.99 |
