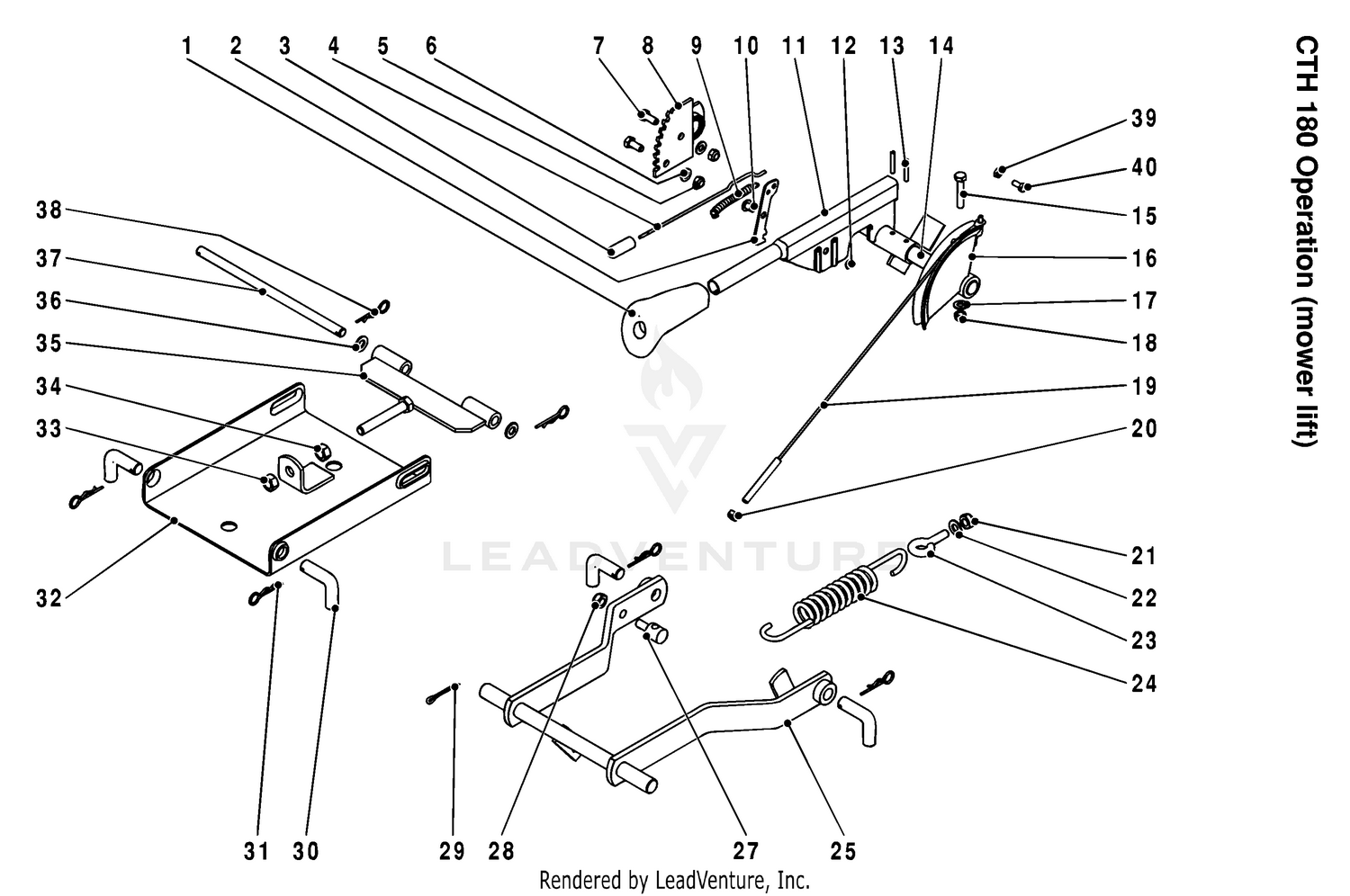

MOWER LIFT / DECK LIFT
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 53-9780 | BALL COUPLER ASM Price: $519.49 |
| 1 | 531005480 | HANDLE Price: $37.99 |
| 2 | 531005484 | PAWL Price: $2.99 |
| 3 | 531006199 | CATCH Price: $7.99 |
| 4 | 531005481 | ROD Price: $3.99 |
| 5 | 732251871 | NUT This part replaces 531005767. Price: $2.99 |
| 6 | 596204101 | WASHER 11/32 X 11/16 X 14 GA T This part replaces 734116301. Price: $2.99 |
| 7 | 725245161 | BOLT Price: $0.99 |
| 8 | 531006118 | SEGMENT Price: $45.99 |
| 9 | 531005485 | SPRING Price: $2.99 |
| 11 | 531005716 | ARM Price: $84.99 |
| 12 | 531006201 | CLIP Price: $0.99 |
| 13 | 721431301 | PIN Price: $2.99 |
| 14 | 531006120 | SHAFT Price: $21.64 |
| 15 | 725246351 | SCREW This part replaces 725246071. Price: $4.99 |
| 16 | 531006258 | SEGMENT Price: $58.99 |
| 17 | 531005824 | WASHER Price: $2.99 |
| 18 | 732251871 | NUT This part replaces 531005767. Price: $2.99 |
| 19 | 531006259 | CABLE Price: $24.99 |
| 20 | 596040501 | Hardware This part replaces 873680500. Price: $2.99 |
| 21 | 732212001 | NUT Price: $3.99 |
| 22 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 23 | 531005532 | SCREW Price: $52.99 |
| 24 | 531005523 | SPRING Price: $58.99 |
| 25 | 531005493 | ARM Price: $123.99 |
| 27 | 531005492 | SCREW Price: $24.99 |
| 28 | 732252001 | NUT Price: $3.99 |
| 29 | 531005668 | PIN Price: $1.99 |
| 30 | 531005717 | PIN Price: $30.29 |
| 31 | 531006203 | PIN Price: $3.99 |
| 32 | 531006204 | SUPPORT Price: $85.99 |
| 33 | 732212201 | Price: $2.67 |
| 34 | 531005704 | NUT Price: $1.99 |
| 35 | 531006205 | HOLDER Price: $43.99 |
| 36 | 531005755 | WASHER Price: $2.99 |
| 37 | 531005546 | ARM Price: $16.99 |
| 38 | 531005494 | CLIP Price: $4.99 |
| 39 | 732252201 | Nut Price: $2.65 |
| 40 | 725233171 | SCREW Price: $2.15 |
